Konica Minolta EP2050 [188/225] When this type of copy is produced
![Konica Minolta EP2050 [188/225] When this type of copy is produced](/views2/1122110/page188/bgbc.png)

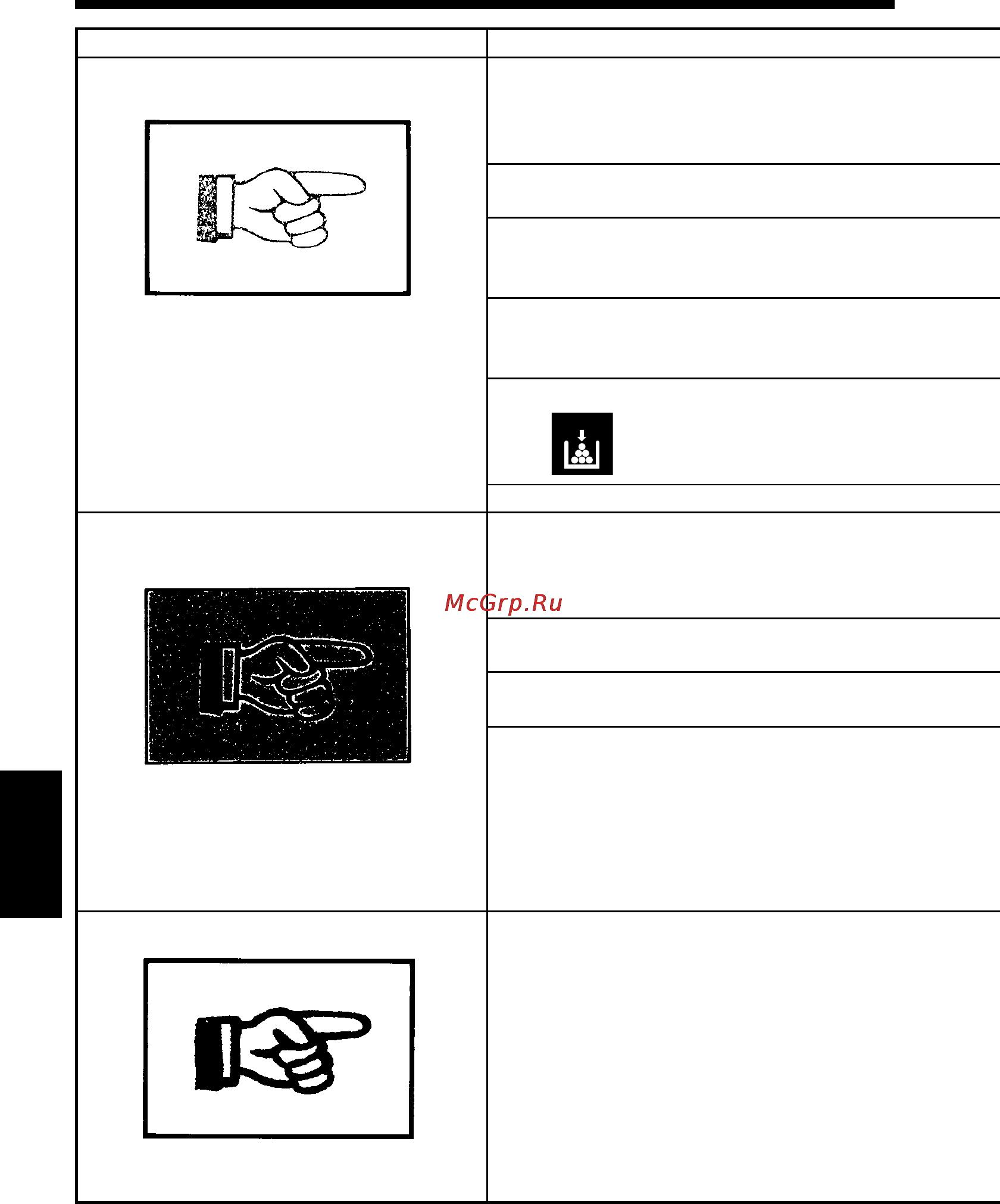

Symptom Possible Cause
The Image is too light. The exposure level for the Auto Exposure
Mode is set at one of the "Light" levels.
The manual exposure level is set on the
lighter side.
You have been making copies from a photo
or an original with a large dark area.
The Toner Bottle has just been replaced.
The Add Toner Indicator is lit up.
Add Toner Indicator
The paper is damp.
The Image is too dark. The exposure level for the Auto Exposure
Mode is set at one of the "Dark" levels.
The manual exposure level is set on the
darker side.
The entire surface of the Original Glass is
dirty.
The original is not held tightly against the
Original Glass.
The Copy is blurry. The paper is damp.
1136P51OAA
1074O108
1074O109
1074O110
1. When this Type of Copy is Produced
Chapter 6
Troubleshooting
184
