Capable of controlling various
data including the number of
copies made, copy cost and user
departments by means of specific
magnetic cards.
➭
p. 20
1136O061AA
1139O1212A
◆
Paper Feed Cabinet PF-202 <Option>
Equipped with two Drawers, it holds up
to 1,000 sheets of copy paper (80 g/m
2
).
➭
p. 150
◆
Paper Feed Cabinet PF-102 <Option>
Holds up to 2,500 sheets of copy paper
(80 g/m
2
).
➭
p. 152
1139O0010A
◆
Duplexing Document Feeder AFR-7
<Option>
In addition to the functions of the AF-3,
it can turn over 2-sided originals.
➭
p. 42
◆
EP2050
Equipped with two Paper Drawers to hold up to 500
sheets of copy paper (80 g/m
2
). The Multi Bypass Table
allows you to make up to 50 copies on paper which is
not loaded in any of the Drawers and which is fed into
the copier automatically via this Table.
➭
p. 70
◆
Data Controller
D-102 <Option>

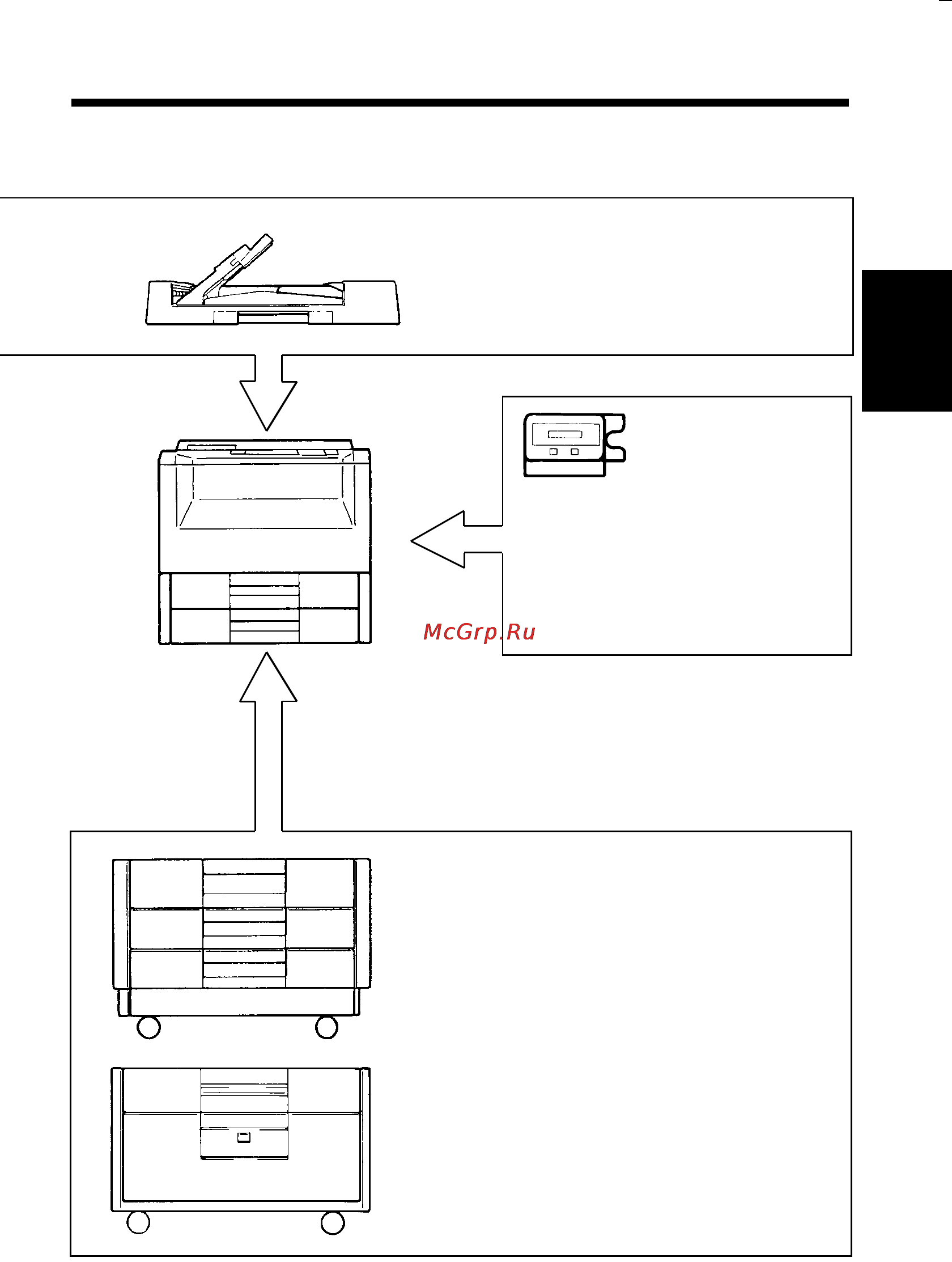

1. System Overview
1139O0180A
1138O525AA
Chapter 2
First Things to Know about EP2050
9
