Add Toner Indicator
Replacing the Toner Bottle
1136O001AA

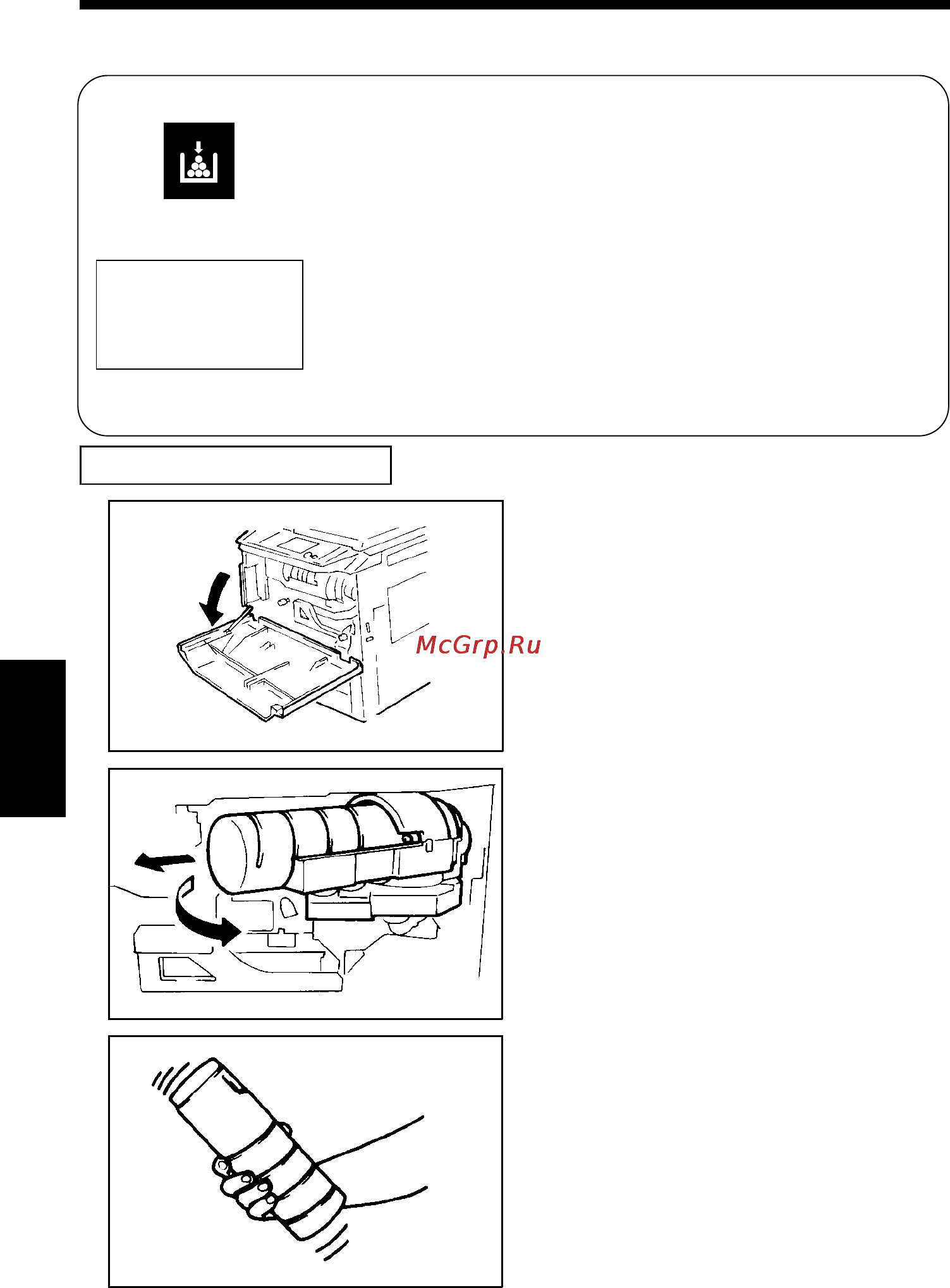

Swing down the Front Door.
1
1136O002AA
Swing open the Toner Bottle
Holder and pull out the Toner
Bottle.
2
1138O048AA
Shake a new Toner Bottle well.
3
2. Detailed Instructions for Messages/Indicator Lights
When the Toner Bottle will soon run out of
toner, the Add Toner Indicator lights up. Once it
has lit up, replace the Toner Bottle with a new
one as soon as possible by following the
procedure given below.
Add Toner
Indicator
<Copying
possible>
1136P51OAA
Add toner :
(MT Toner 201B)
When the Toner Bottle has run out of toner, the
message shown on the left appears on the
Message Display and the copier inhibits the
initiation of a new copy cycle. (A new copy
cycle can be initiated when the empty Toner
Bottle is replaced with a new one.)
1136P431CA
<Copying
inhibited>
Chapter 5
When a Warning Message Appears
146
