Konica Minolta EP2050 [168/225] When a warning message appears
![Konica Minolta EP2050 [168/225] When a warning message appears](/views2/1122110/page168/bga8.png)
•
Replace the Staple Cartridge only after the Add Staple Indicator lights up.
Removing the Staple Cartridge before then will result in stapling trouble.
•
Immediately after the new Staple Cartridge has been loaded, be sure to
follow steps 7 to 9.
•
Do not turn the green gear near the Cartridge inside the Staple Unit.
NOTES
Manual
Staple
1139O2732A
1139O2732A

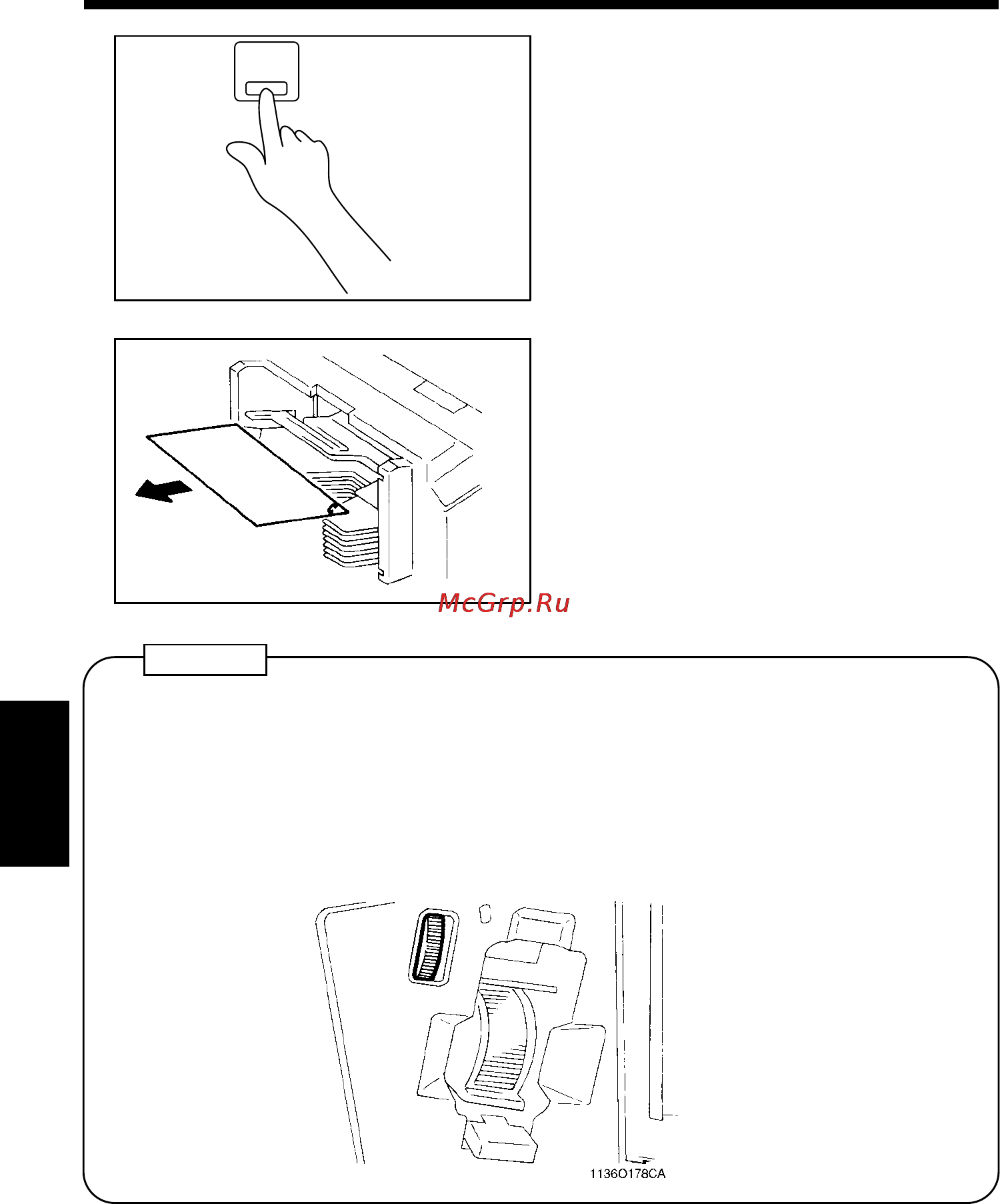

Press the Manual Staple Key.
The Staple Sorter test-staples the
paper several times automatically.
8
1139O0950A
Remove the sheet of paper from
the Top Bin and check that it has
been stapled.
If it has not been stapled, place
another sheet of paper into the
Top Bin and repeat steps 7, 8,
and 9.
9
2. Detailed Instructions for Messages/Indicator Lights
Chapter 5
When a Warning Message Appears
154
