6. Supplementary Function Setting
1136P343CA
Cover
(Front)
Cover
(Front
&
Back)
1136P343CA

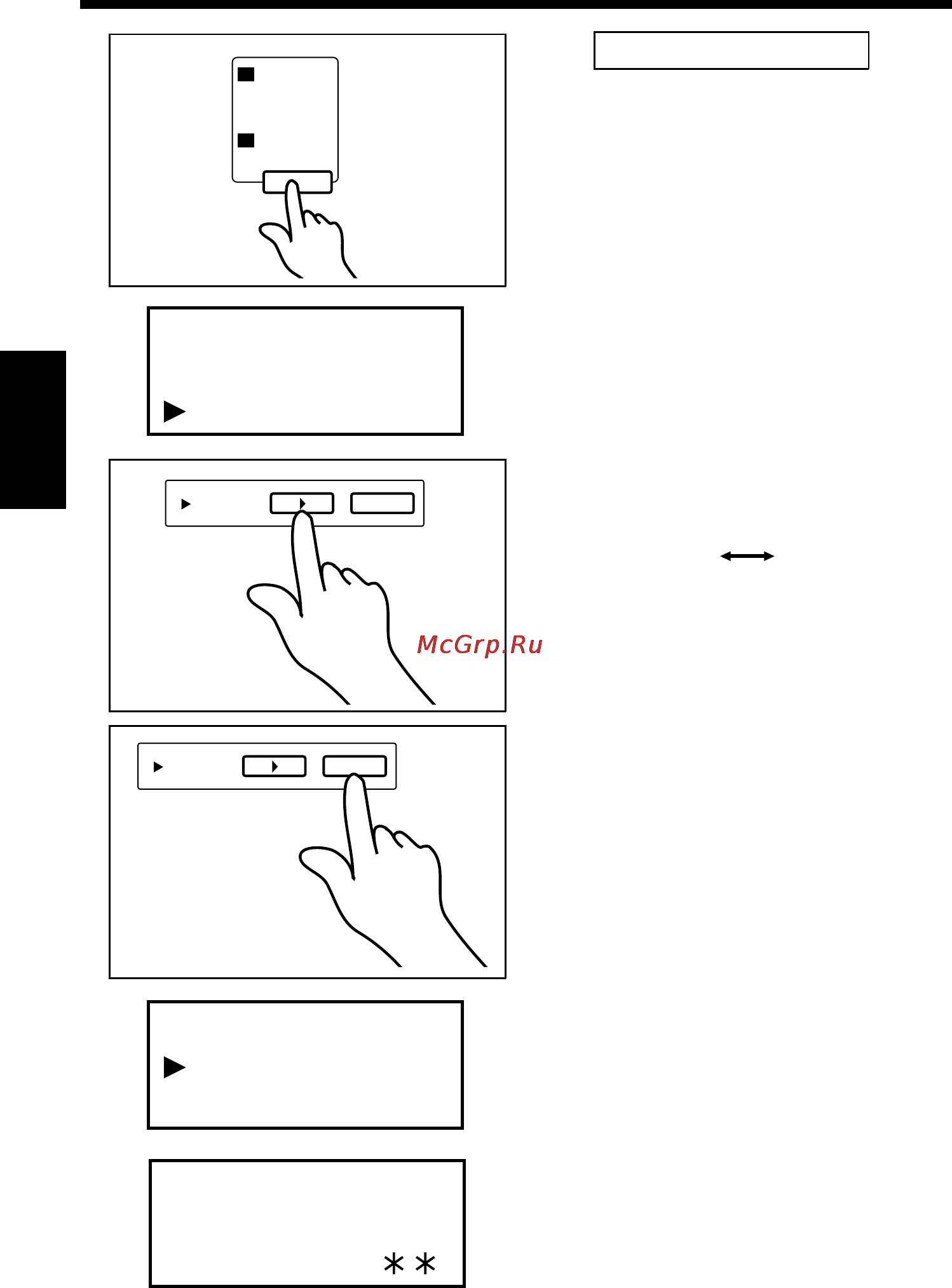

Press the Cover Mode Key to
select the desired cover function.
•
The message "Copy an image
on the Cover?" appears on the
Message Display.
Using the Cover Mode
1
1136P344CA
Display
OK
1136P344CA
Press the Select Key to select
whether you want to copy
("YES") the cover or not ("NO").
Each time the Key is pressed, the
cursor moves to a new option as
follows.
YES NO
2
Copy an image on
the Cover?
YES NO
1136P397CA
1136P345CA
Display
OK
1136P345CA
Press the Enter Key to validate
your selection.
•
A prompt about the number of
originals you have appears on
the Message Display.
*
Different messages appear
depending on whether the
copier is equipped with an
AFR-7 or AF-3.
3
# of originals:
Auto Count
10-key Input
1136P398CA
When the copier is equipped with an
AFR-7
➭
p. 111
▲
Input the number
of originals :
1136P399CA
When the copier is equipped with an
AF-3
➭
p. 112
▲
Chapter 3
Making Copies
110
