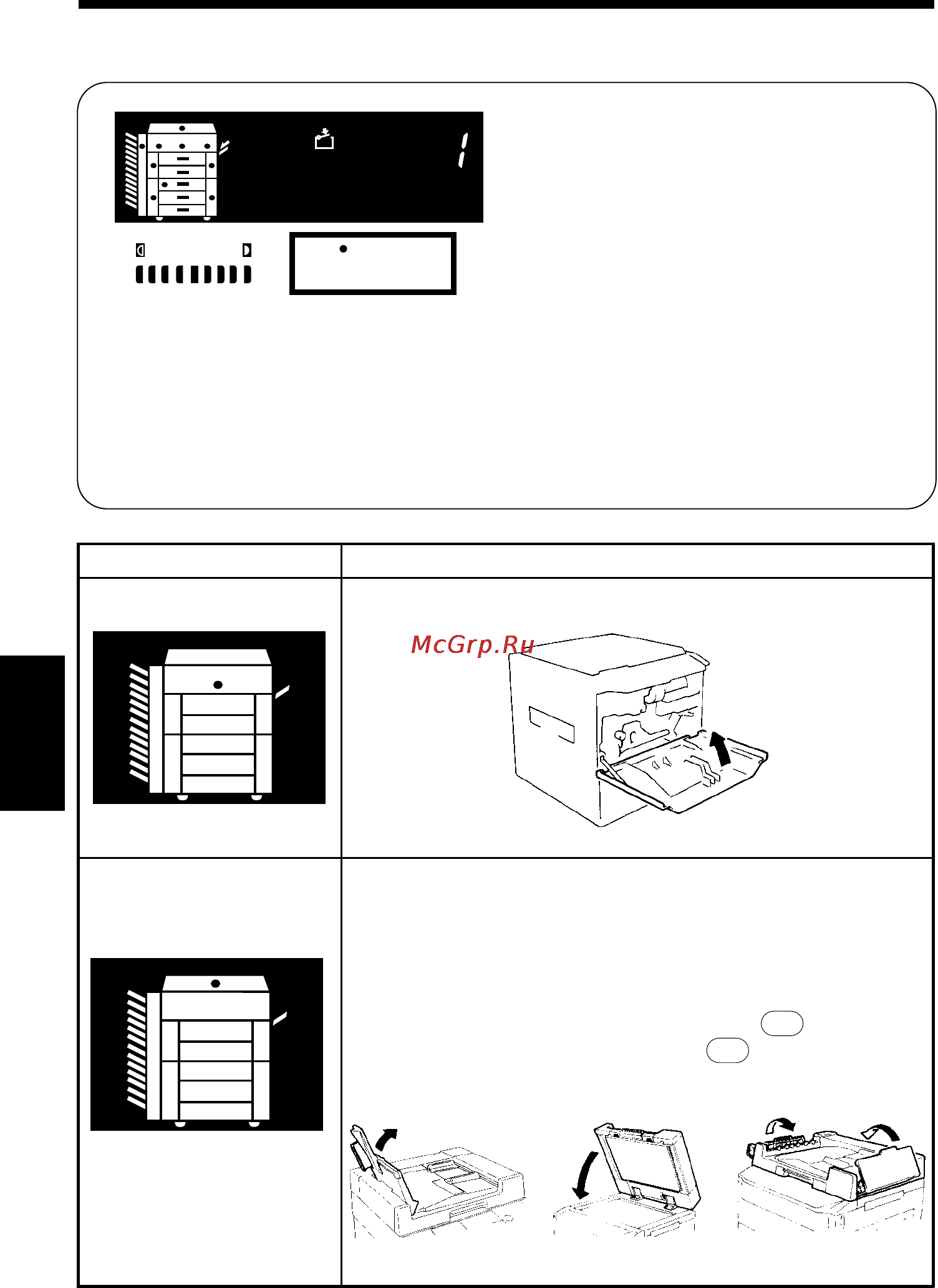

Closure Failure Indicator
2. Detailed Instructions for Messages/Indicator Lights
1136O018AA
1136P17OAA
1136P17OAA
123
AUTO
Close section
properly
1136P374CA
1136P374CA
The message shown on the left appears
and the Closure Failure Indicator lights
up if a copier door is left open, or an
option is not attached properly. At this
time, the Monitor Display shows the
location of the closure failure. The Start
Key turns to orange and you can no
longer start a new copy cycle.
Correct the closure failure by following
the procedure given below.
1136P18OAA
1136P18OAA
1139O0560A
1139O0600A
1139O0580A
Monitor Display Check Locations
Check that the Front Door is closed.
•
Check that the Automatic/Duplexing Document Feeder
(AF-3/AFR-7) is lowered.
•
Check that the Document Exit Tray of the
Automatic/Duplexing Document Feeder (AF-3/AFR-7) is
in position.
•
Check that the Document Feed Unit Door F1 and the
Document Turnover/Exit Unit Door F3 of the
Duplexing Document Feeder AFR-7 are closed.
Chapter 5
When a Warning Message Appears
162
