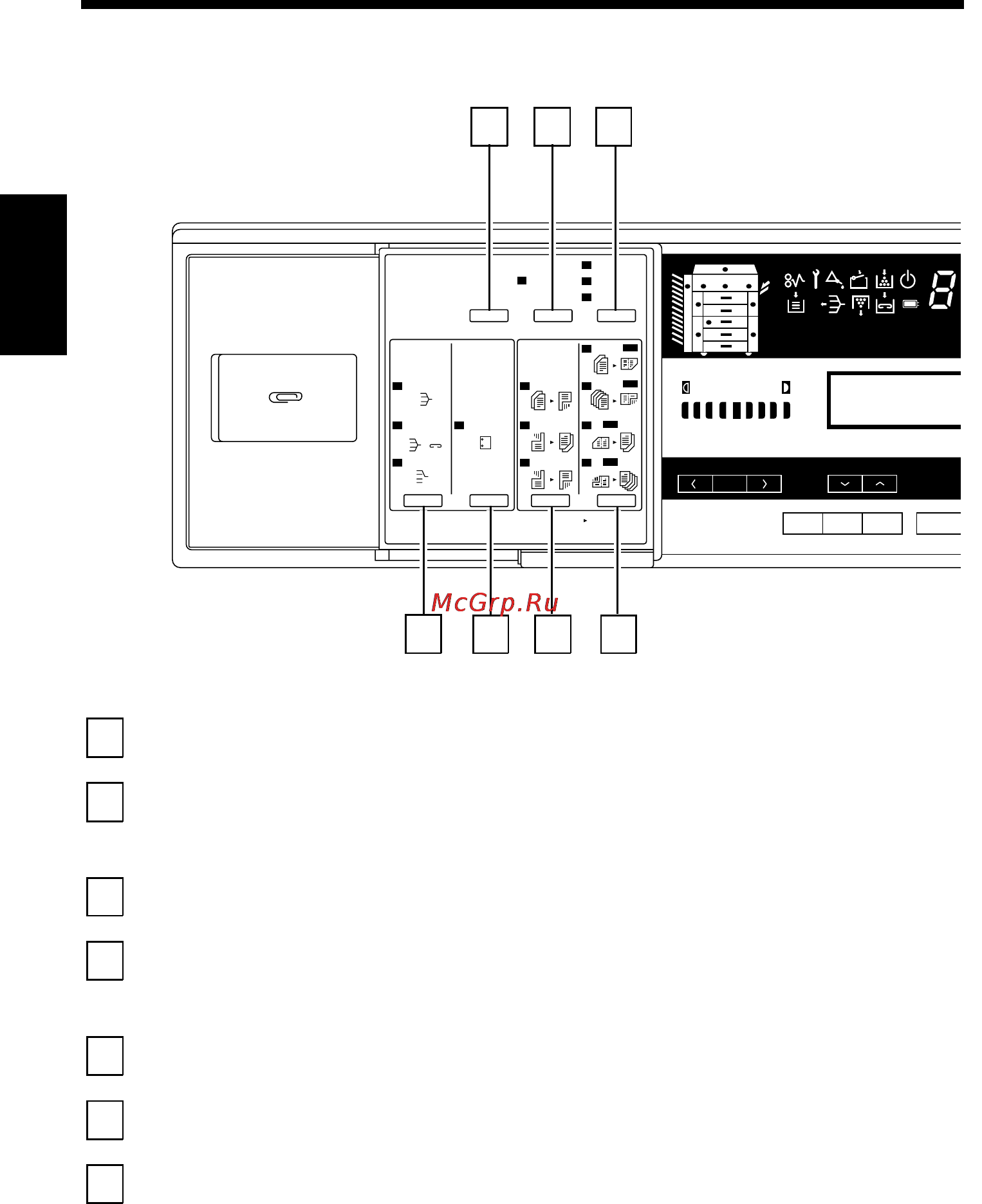

System Panel
Auto
123
Darker
A
Lighter
x0.5~x2.0
Reduce Full size Enlarge
A
Auto
PaperZoomExposure
1
21
22
11
2in1
12
2in1
Orig. Copy
2
1
1
2in1
1
2
2in1
Finishing
Hole
Punch
Sort
Sort
Staple
Group
Mixed
Orng.
Detect
Manual
Steple
Auto Count
Even
Odd
# of Origs.
1136P790CA
7
1
1136P790CA
6
2 3
4 5
1
Manual Staple Key
: Press to staple copy sets or stacks already
made.
➭
p. 90
2
Mixed Original Detection
Mode Key
: Press when making copies using the AF-3 or
AFR-7 in which originals of assorted sizes
are loaded together.
➭
p. 44
3
Original Count Mode
Key
: Press to select the appropriate original count
mode.
➭
p. 80
4
Original Copy Type
Select Key II
: Press as necessary to select the type of
copying job making 1- or 2-sided copies
from 1- or 2-sided originals.
➭
p. 83
5
Original Copy Type
Select Key I
: Press as necessary to select the type of 2-in-1
copying job you wish to perform.
➭
p. 81
6
Hole Punch Mode Key
: Press to set the copier into the Hole Punch
Mode.
➭
p. 90
7
Finishing Mode Select
Key
: Press as necessary to select the type of
finishing mode you want.
➭
p. 90
▲
▲
3. Control Panel Keys and Indicators
Chapter 2
First Things to Know about EP2050
24
