Konica Minolta EP2050 [76/225] Special paper mode
![Konica Minolta EP2050 [76/225] Special paper mode](/views2/1122110/page76/bg4c.png)
1136P307CA
FLS SS
M FEED
A4
B4 S1
A3 S2
A
Auto Select
1136P307CA

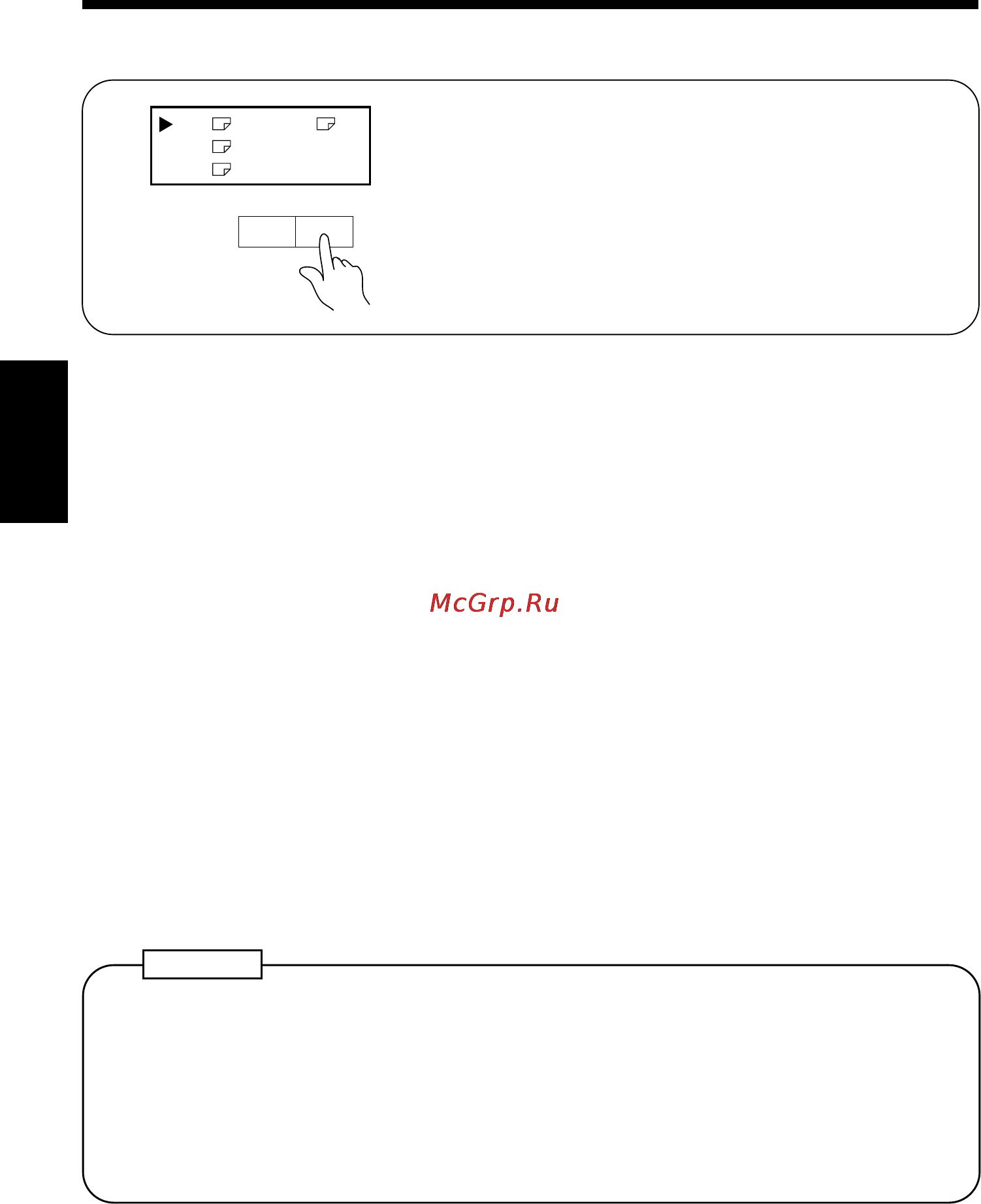

If S1, S2, or S3 appears after the
paper size on the Message Display
when the Paper Select Key is pressed,
it means that the Drawer loaded with
that paper has been set for special
paper loading.
Special Paper Mode
Special paper setting may be one of the following three types, each having a
specific meaning as described below. The setting can be made by using the User’s
Choice.
➭
pp. 132, 137
S1: If S1 is set, that particular Drawer is excluded as a possible candidate
S1: in Auto Paper Mode. If, for example, you are using both recycled and plain
S1: paper and using mainly the recycled paper, you may set the plain paper for
S1: S1. Then, the copier excludes the plain paper when selecting paper size in
S1: the Auto Paper Mode.
S2: This setting precludes both Auto Paper Mode and Automatic Drawer
S1: Switching.
S3: This setting blocks 2-sided copying.
S1: Again it is sensible of you to set the used 1-sided copy paper for the S3
S1: setting.
•
The Drawer set for S3 cannot be selected when you have set up a job for
making 2-sided copies from 1-sided originals or making 2-sided copies from
2-sided originals.
•
When you have selected the paper set for S3, you can no longer select the
copying mode for making 2-sided copies from 1-sided originals or making
2-sided copies from 2-sided originals.
NOTES
2. Basic Copying Procedure
Chapter 3
Making Copies
64
