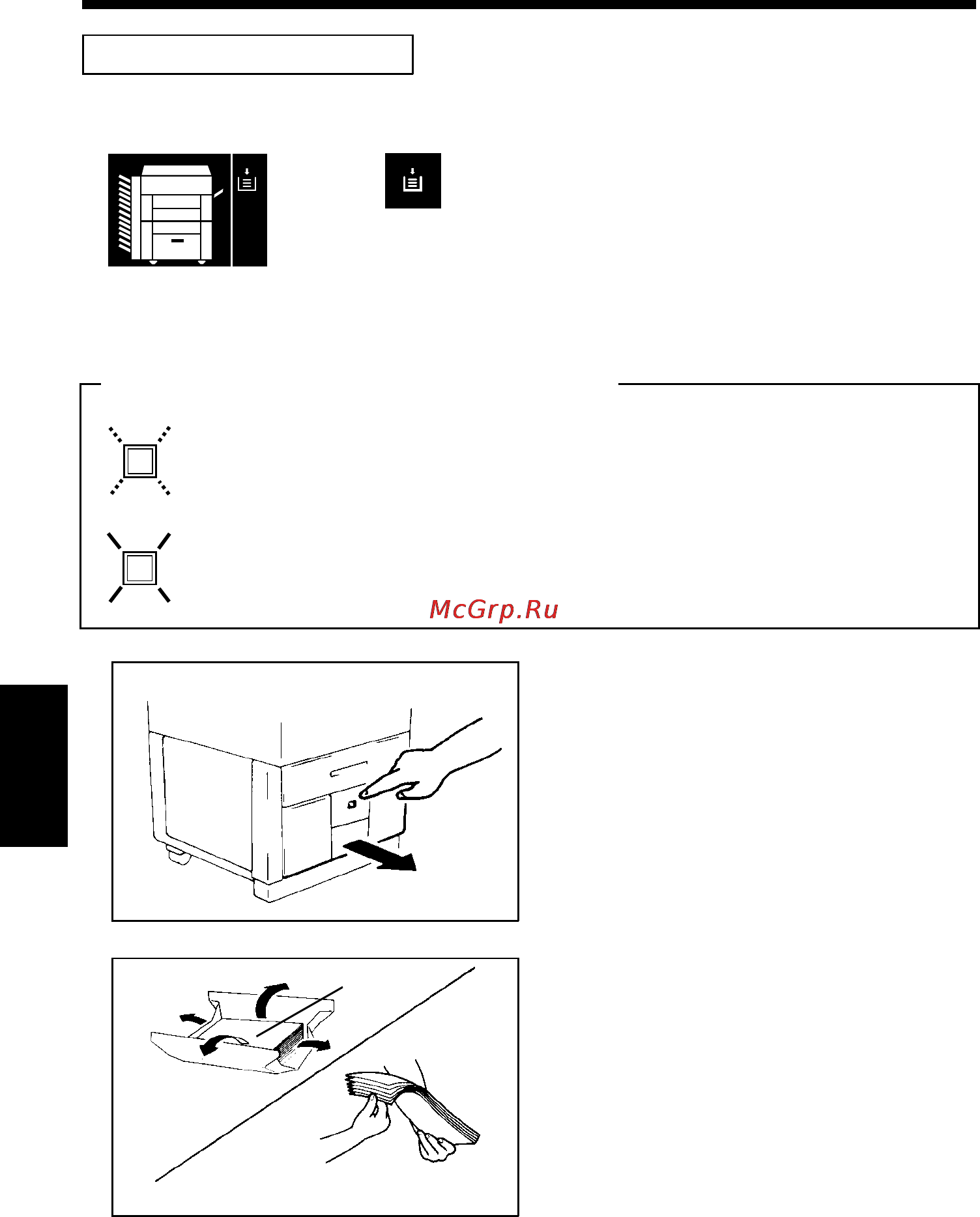

Adding Paper (3rd Drawer)
1136P516EA
Monitor Display
1136P516EA
Add Paper Indicator
The indications on the left show that the
3rd Drawer of Paper Feed Cabinet
PF-102 has run out of paper. At this
time, the Paper Descent Button on the
3rd Drawer blinks.
1136P350AA
Blinking
Light
:
The 3rd Drawer has run out of paper, when the 3rd
Drawer is currently selected for use.
Steady
Light
:
The 3rd Drawer has run out of paper, when a drawer other
than the 3rd is currently selected for use.
Indication of the Paper Descent Button
1139O4930A
1139O4940A
1139O1552A
Press the Paper Descent Button.
This unlocks the 3rd Drawer,
allowing you to slide it out of the
copier.
◆
Use the same procedure when
you want to add additional
paper or change the paper size.
1
Front Side
Back Side
1139O1370A
Unwrap the package of copy
paper and fan the paper stack
thoroughly.
2
2. Detailed Instructions for Messages/Indicator Lights
Chapter 5
When a Warning Message Appears
150
