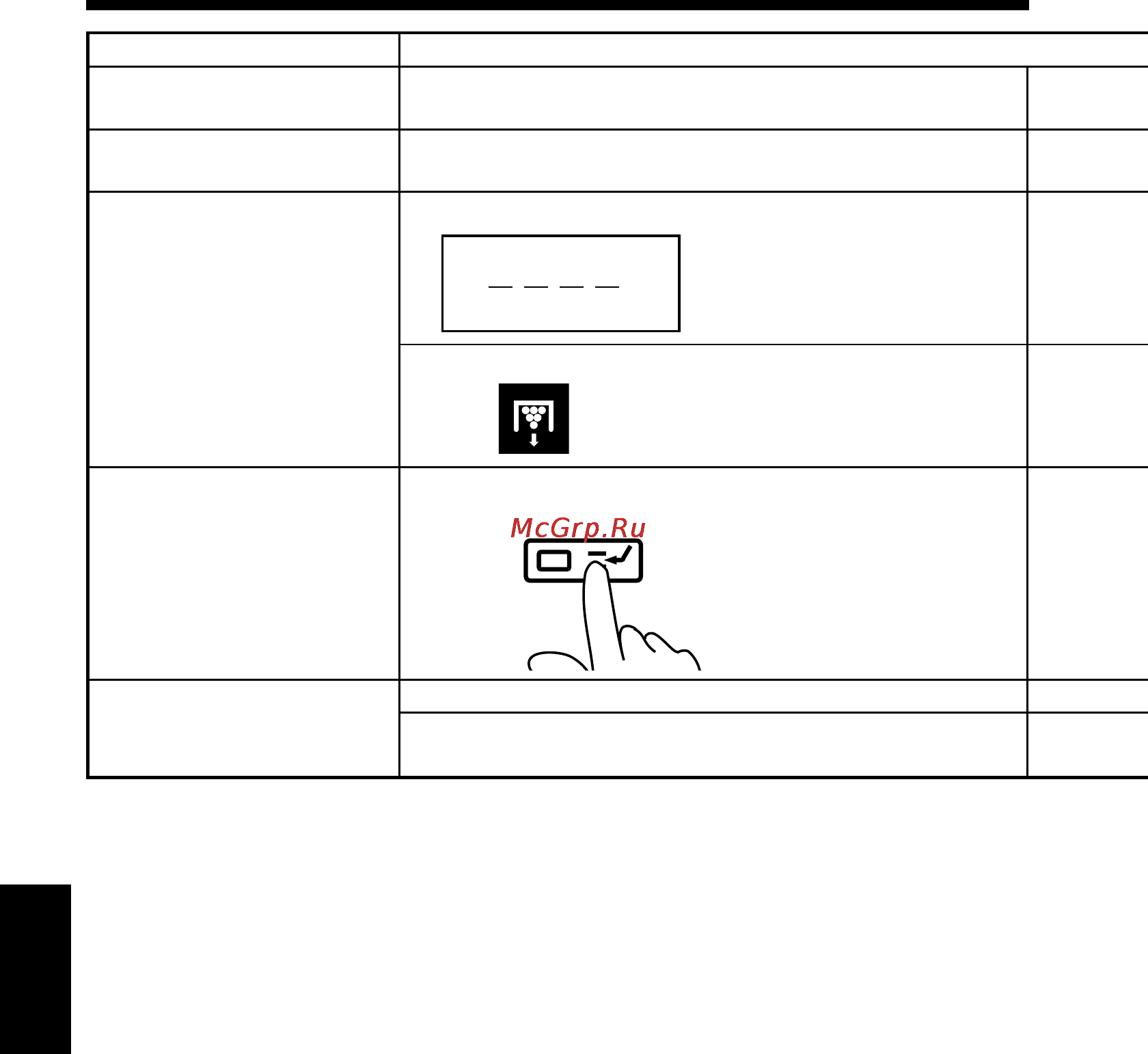

Symptom check for:
None of the Control Panel
Indicators light up
Is only the Start Key lit up green.
The Message Display shows
nothing.
The Display Contrast Control Knob is placed in the
excessively light or dark position.
Pressing the Start Key does
not start the copy cycle.
You have not yet entered the access number.
The Toner Collecting Box Full Indicator is lit up.
Control Panel Keys do not
respond.
The Interrupt Key LED is lit up.
The copier is not activated
when the Power Switch is
turned ON.
The power cord is left unplugged from the power outlet.
The room circuit breaker is open.
If these procedures do not correct the problem, contact your Technical
Representative.
2. The Copier is not functioning as designed
Enter Access #:
1136P395CA
1139O2602A
1139O2602A
1136P51OAA
Chapter 6
Troubleshooting
188
