Konica Minolta EP2050 [98/225] Finishing modes
![Konica Minolta EP2050 [98/225] Finishing modes](/views2/1122110/page98/bg62.png)
1
21
22
11
2in1
12
2in1
Orig. Copy
2
1
1
2in1
1
2
2in1
Finishing
Hole
Punch
Sort
Sort
Staple
Group
Mixed
Orng.
Detect
Manual
Steple
Auto Count
Even
Odd
# of Origs.
1136P471CA

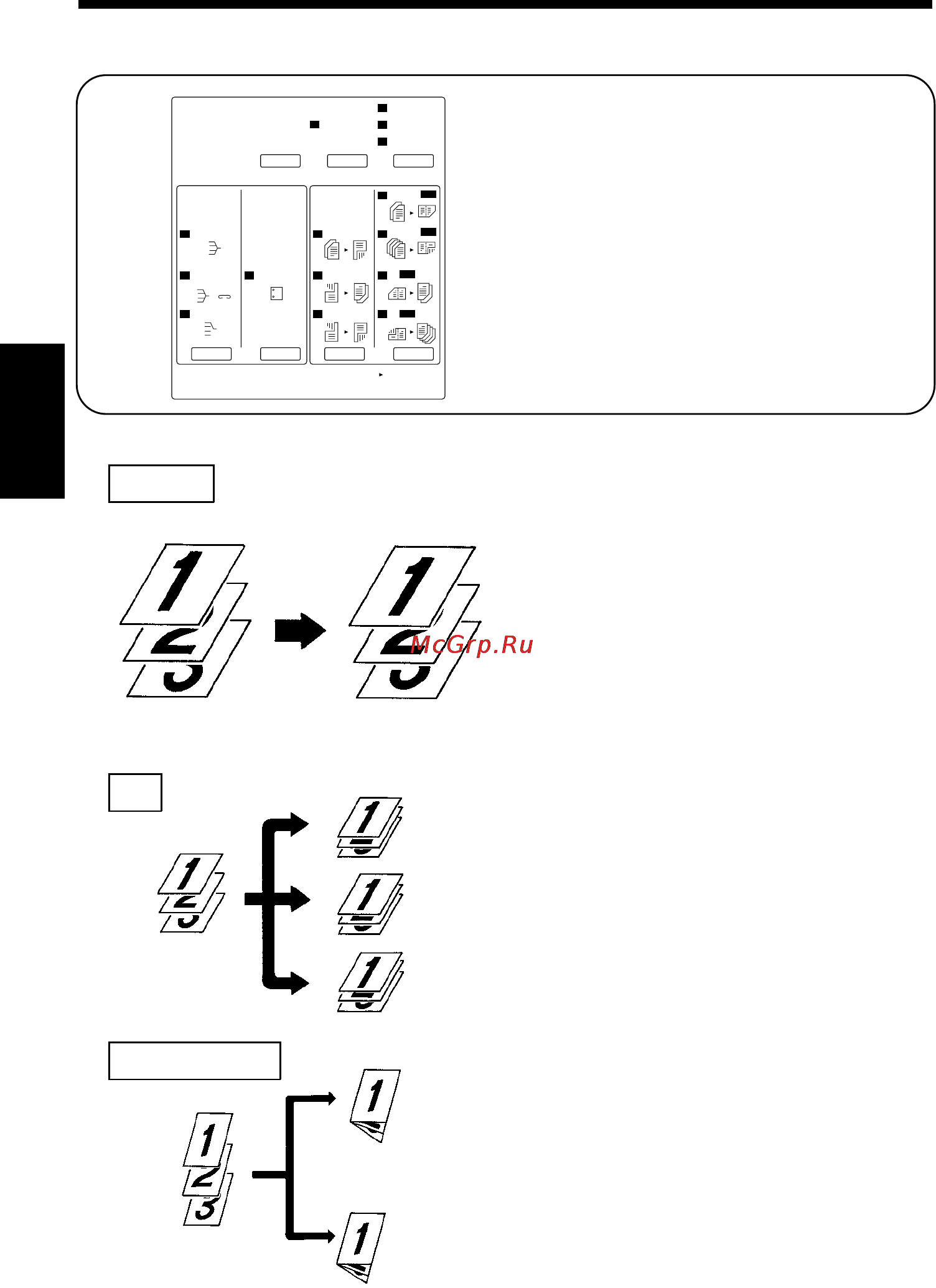

There are six different finishing
modes:
Non-Sort, Sort, Sort-and-Staple,
Group, Hole Punch, and Manual
Staple.
Select the appropriate mode
according to your particular needs.
Non-Sort
Originals
Copies
1076O145
•
In the Non-Sort Mode, all copies are
fed out onto the Top or Non-Sort
Bin without being sorted, grouped or
stapled. If there are no Finishing
Mode Lights lit, the Non-Sort Mode
is set.
Finishing Modes
Finishing Modes
Sort
1st Bin
Originals
2nd Bin
3rd Bin
Copies
Copies
1076O146
Copies
•
In the Sort Mode, copies are sorted
into complete sets of the originals.
Copies are fed into the Sorter Bins.
* This mode is effective when
making multiple copies from
multiple originals.
Sort-and-Staple
Originals
Copies
1076O149
Copies
1st Bin
2nd Bin
3rd Bin
•
In the Sort-and-Staple Mode, copies
are sorted into complete sets of the
originals and each set is stapled
together. Copies are fed into the
Sorter Bins.
(Only when the copier is equipped
with a Staple Sorter)
4. System Job Setting
Chapter 3
Making Copies
86
