1136O138AA
Original Set
Copy Sets
Non-Copied
Interleaves
OHP
OHP Interleaving

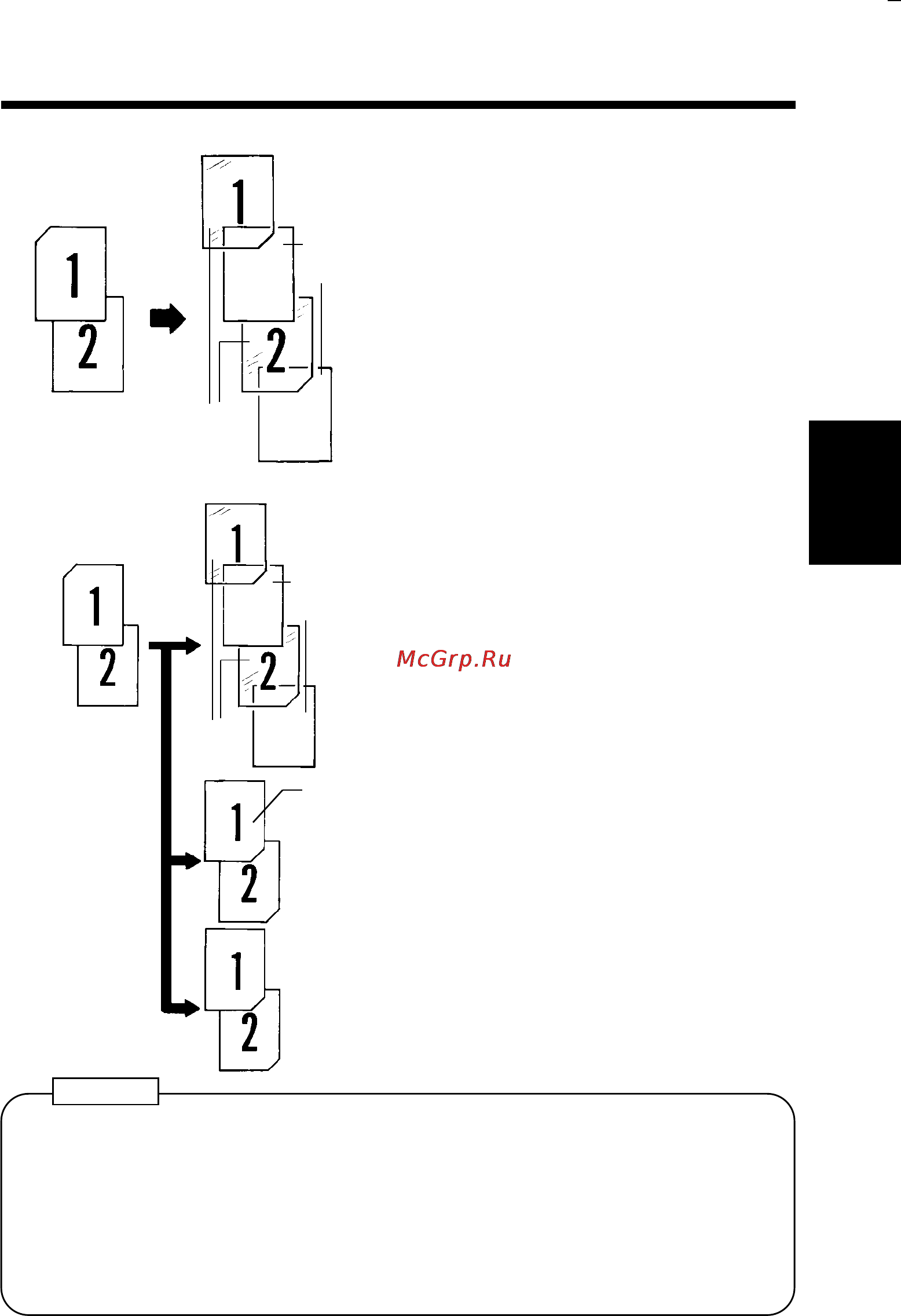

<Non-Copied Interleaves>
Single Copy:
The copier copies on OHP
transparencies and, between each pair
of transparencies, inserts a non-copied
copy paper, i.e., a blank sheet of
paper.
Original Set
Copy Sets
Non-Copied
Interleaves
Copy
OHP
1136O139AA
Multiple Copy
<Only when the copier is equipped
with an ST-206>:
The copier sorts copies into the
specified number of sets of originals.
The first set of copies are on OHP
transparencies and the remaining sets
are on the normal copy paper.
The copier interleaves the first copy
set with blank sheets of normal paper.
•
A multi-copy cycle of OHP Interleaving is not possible on a copier system
equipped with an ST-101 or S-104.
•
A multi-copy cycle of OHP Interleaving accepts only the Sort Mode.
•
Load the OHP transparencies onto the Multi Bypass Table. The A4 copy paper
loaded in any Drawer is used for the interleaves. The OHP Interleaving cannot
be used if none of the Drawers is loaded with A4 copy paper.
•
OHP Interleaving cannot be combined with the 2-sided copying, 2-in-1
separation, 2-in-1 copy, Cover, Page Insertion, or Book.
NOTES
Chapter 3
Making Copies
117
6. Supplementary Function Setting
