Konica Minolta EP2050 [111/225] Making copies

6. Supplementary Function Setting

1136P215AA

Original

(Fax Output)

Copy

Erase 3 <Frame Erase>

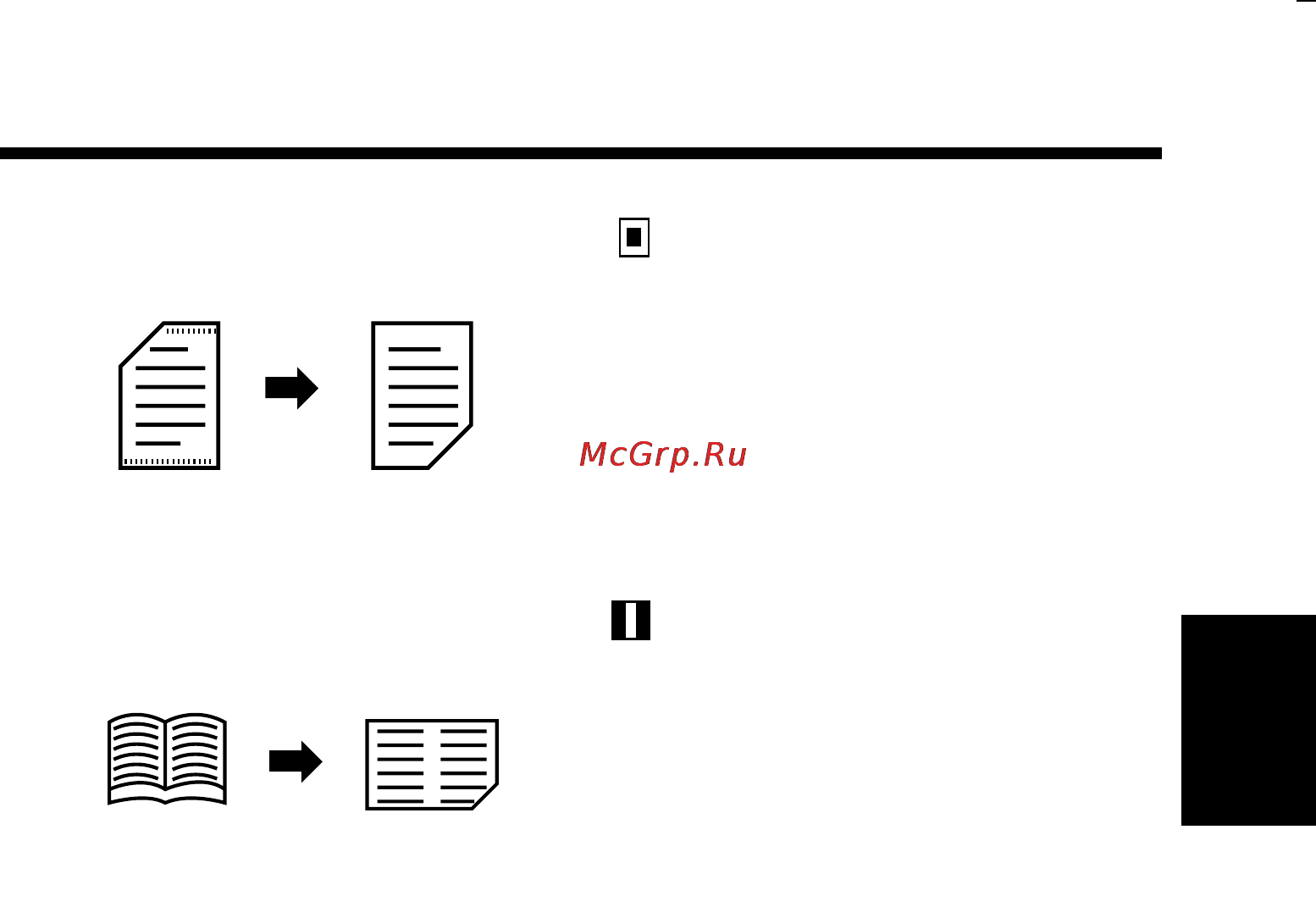

The copier erases a set width along

the four edges. This feature is

effective, for example, when making a

copy from a document received by

fax.

The erase width is 10 mm.

1136P216AA

Original (Book)

Copy

Erase 4 <Center Erase>

The copier erases a set width at the

center to prevent shadows from being

produced when a copy is made from,

for example, an open thick book.

The erase width can be either 10 mm,

15 mm or 20 mm.

Chapter 3

Making Copies
