Konica Minolta EP2050 [160/225] Add paper indicator
![Konica Minolta EP2050 [160/225] Add paper indicator](/views2/1122110/page160/bga0.png)
123
AUTO
Load paper :
x1.000 A4
1136P446CA
1136P446CA

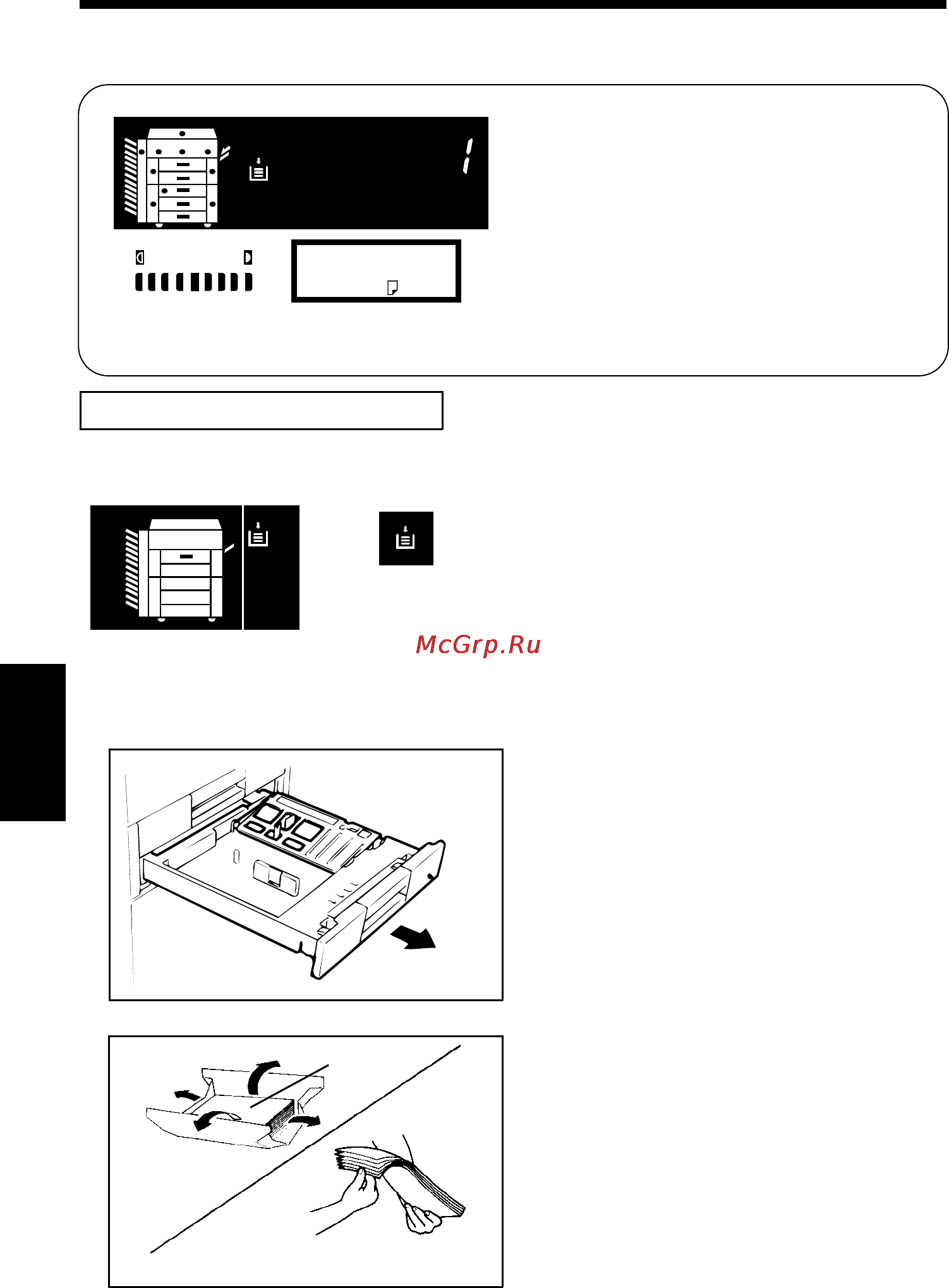

When the Drawer currently selected for
use has run out of paper, the message
shown on the left appears, the Add
Paper Indicator lights up, and the Start
Key turns orange. At this time, you
cannot start any new copy cycle.
Use the following procedure to load
paper into the Drawer.
Adding Paper (1st/2nd Drawer)
Add Paper Indicator
1136P11OAA
Monitor Display
1136P110AA
1
Add Paper Indicator
The indications on the left show that the
1st Drawer has run out of paper.
1136P350AA
1136O159AA
1136O159AA
Slide out the 1st Drawer.
Back Side
Front Side
1139O1370A
Unwrap the package of copy
paper and fan the paper stack
thoroughly.
1
2
2. Detailed Instructions for Messages/Indicator Lights
Chapter 5
When a Warning Message Appears
148
