Konica Minolta EP2050 [185/225] When a warning message appears
![Konica Minolta EP2050 [185/225] When a warning message appears](/views2/1122110/page185/bgb9.png)
1136P32OAA

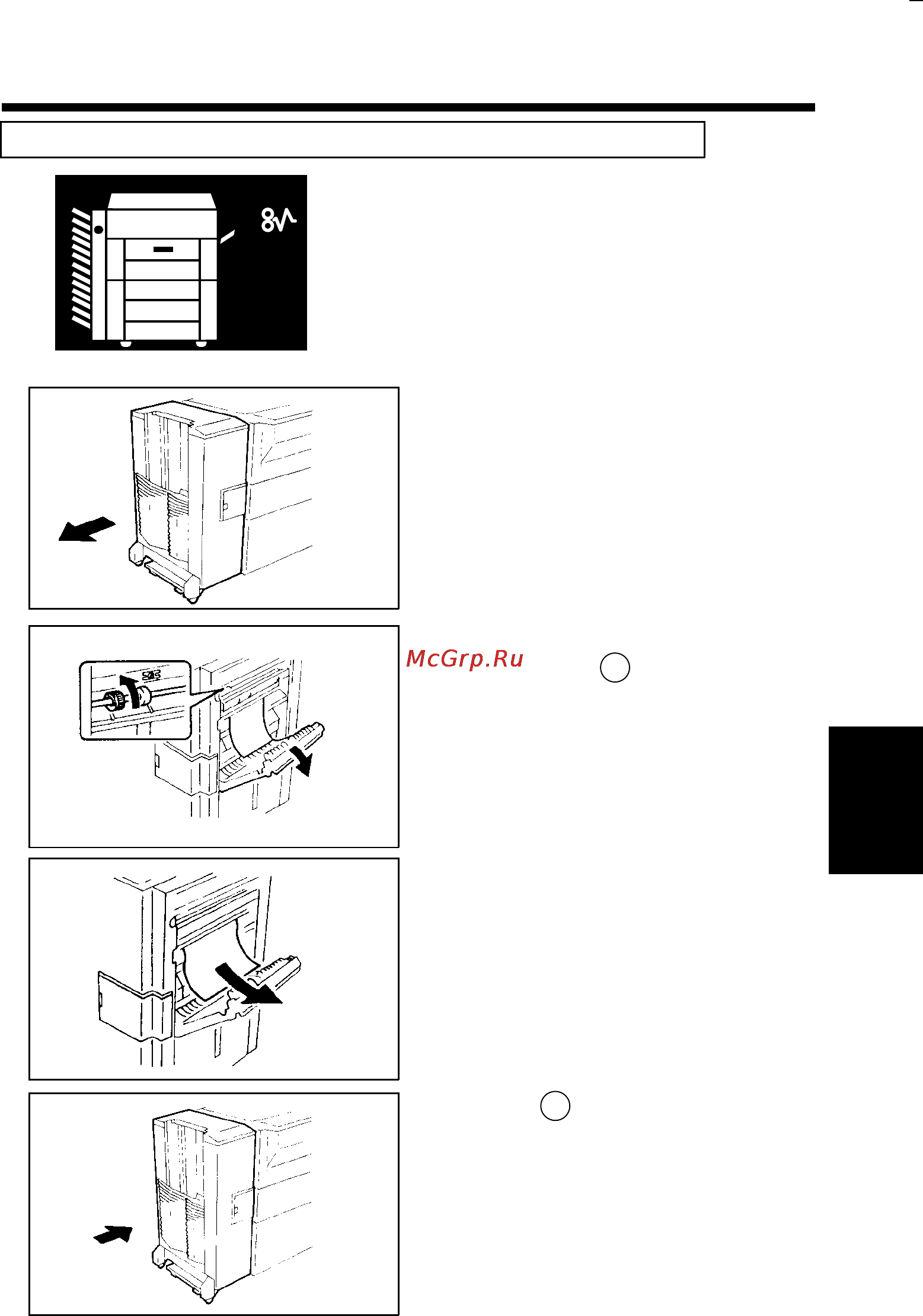

Misfeed Clearing Procedure: Sorter S-205 or Staple Sorter ST-206
1136P320AA
There is a misfed sheet of paper in the
20-Bin Sorter S-205 or the Staple Sorter
ST-206 (Transport Section).
1136O010AA
Hold the Lock Release Lever of
the S-205/ST-206 and slide the
sorter away from the copier.
1136O174CA
Swing down Misfeed Removal
Guide Plate .
Turn the Misfeed Removal Knob
counterclockwise one complete
turn or more. <ST-206 only>
S
1136O175CA
Pull out the copy from the
Transport Section.
3
4
1
2
1136O014AA
Close and then slide the
S-205/ST-206 back to the copier.
This completes the procedure to clear
a misfed sheet of paper in the
S-205/ST-206.
S
5
2. Detailed Instructions for Messages/Indicator Lights
Chapter 5
When a Warning Message Appears
181
