Selecting the Original Copy Type

▲

2in1

Orig. Copy

2in1

1136P315CA

•

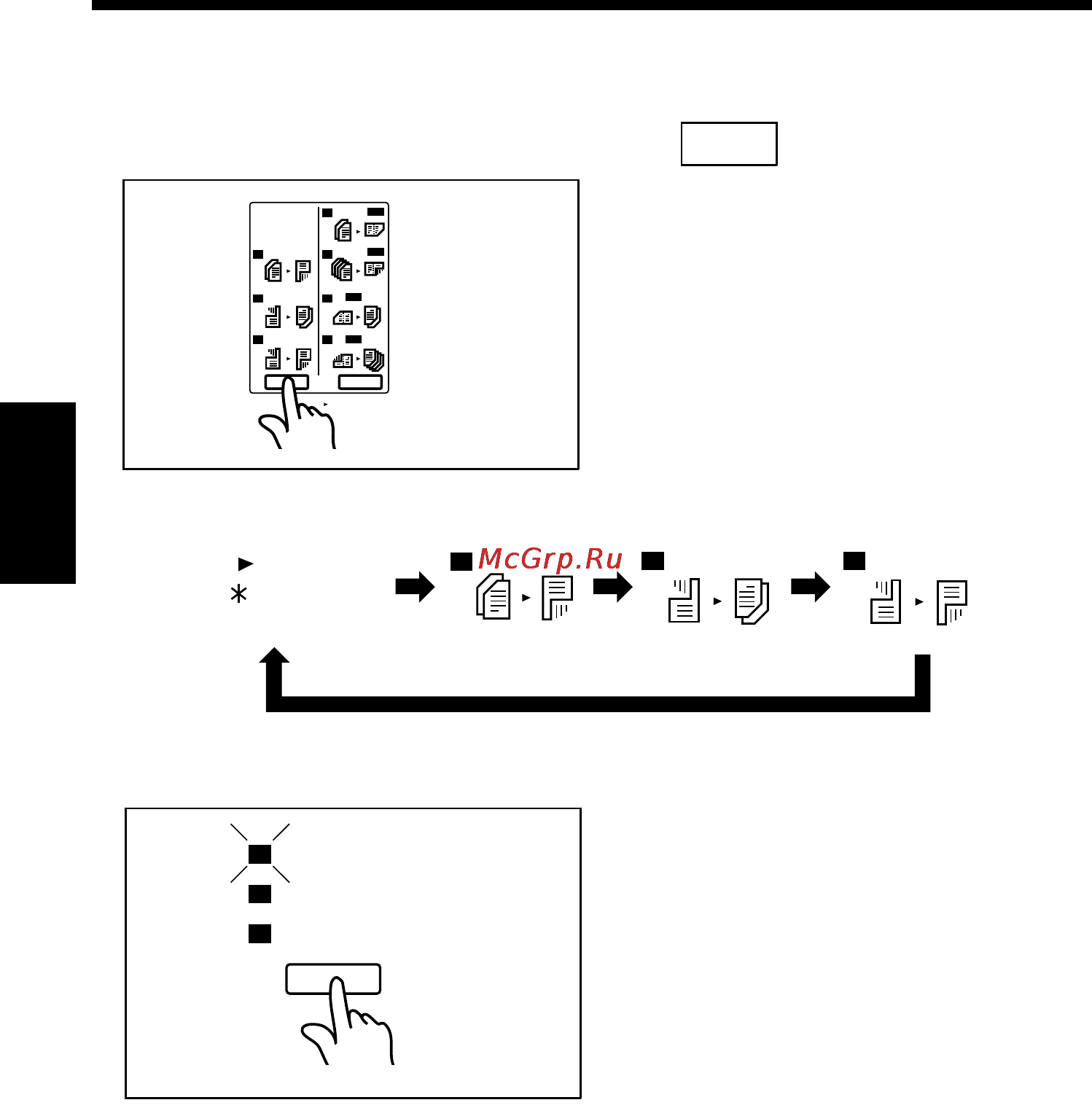

Press the Orig. Copy Type I

Select Key to select your choice.

Each time the Orig. Copy

Type I Select Key is pressed,

the newly selected type

indicator lights as shown. (If

there are no lights, 1-sided

1-sided is set.)

Type I

▲

1136P316CA

No lights

1 1

1136P316CA

Auto Count

Even

Odd

# of Origs.

1136P317CA

•

If you have selected 1 2, use

the Original Count Mode to let

the copier perform an original

count sequence.

Original Count Mode

➭

p. 83

This completes the selection of

Orig. Copy Type I.

▲

4. System Job Setting

Chapter 3

Making Copies
