Konica Minolta EP2050 [183/225] When a warning message appears

1136P31OAA

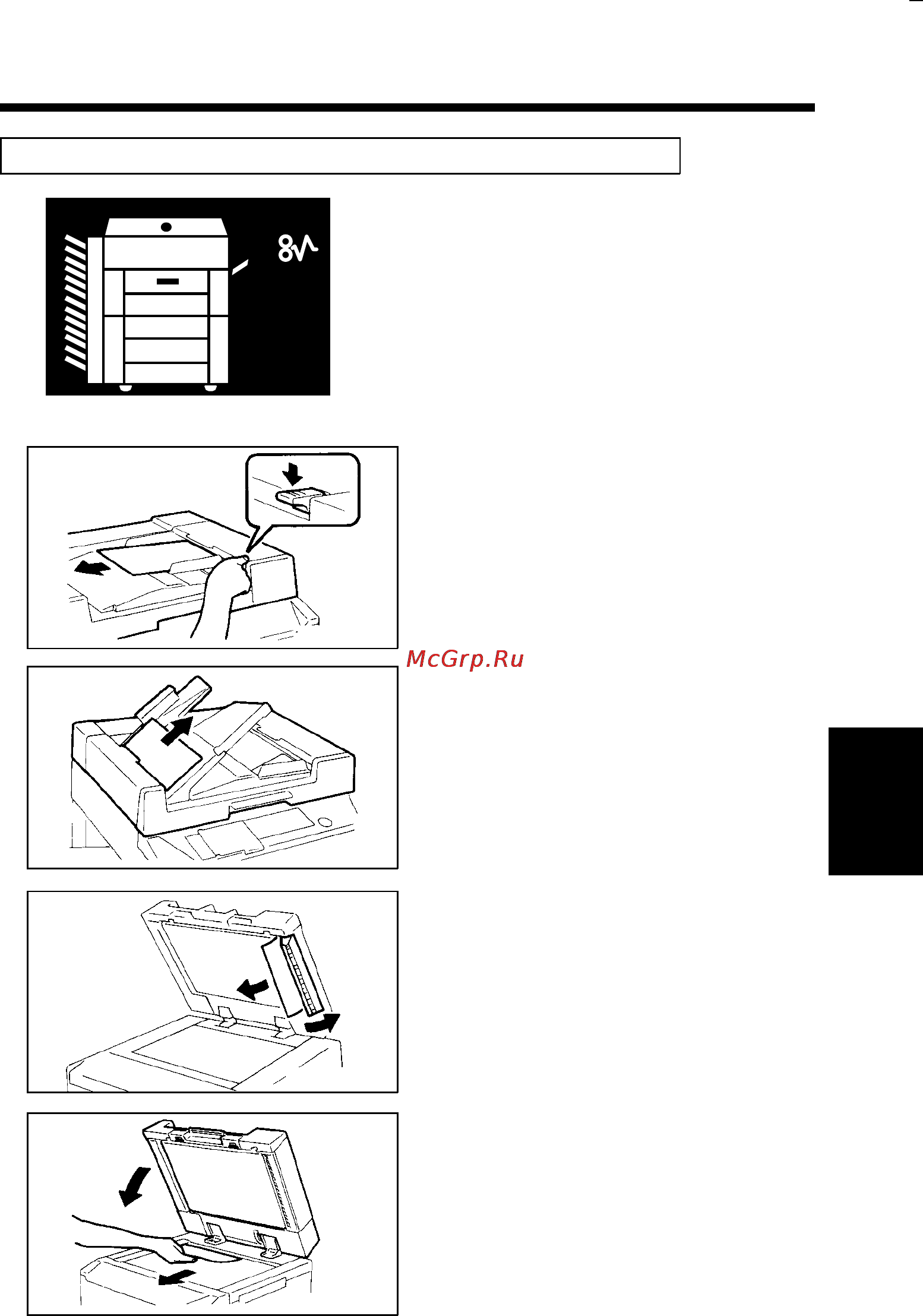

Misfeed Clearing Procedure: Automatic Document Feeder AF-3

1136P310AA

There is a misfed original in the Automatic

Document Feeder AF-3.

1139O0830A

Holding down the Document

Release Key, gently pull out the

original.

1139O0850A

Carefully pull out the original

from the Exit Unit.

1139O0860A

Raise the AF-3.

Opening the Document Feed

Unit Guide Plate, gently pull out

the original from the Document

Feed Unit.

1139O0840A

Remove the original from the

Original Glass and lower the

AF-3.

This completes the procedure to clear

a misfed original in the AF-3.

2. Detailed Instructions for Messages/Indicator Lights

Chapter 5

When a Warning Message Appears

179
