Konica Minolta EP2050 [23/225] First things to know about ep2050

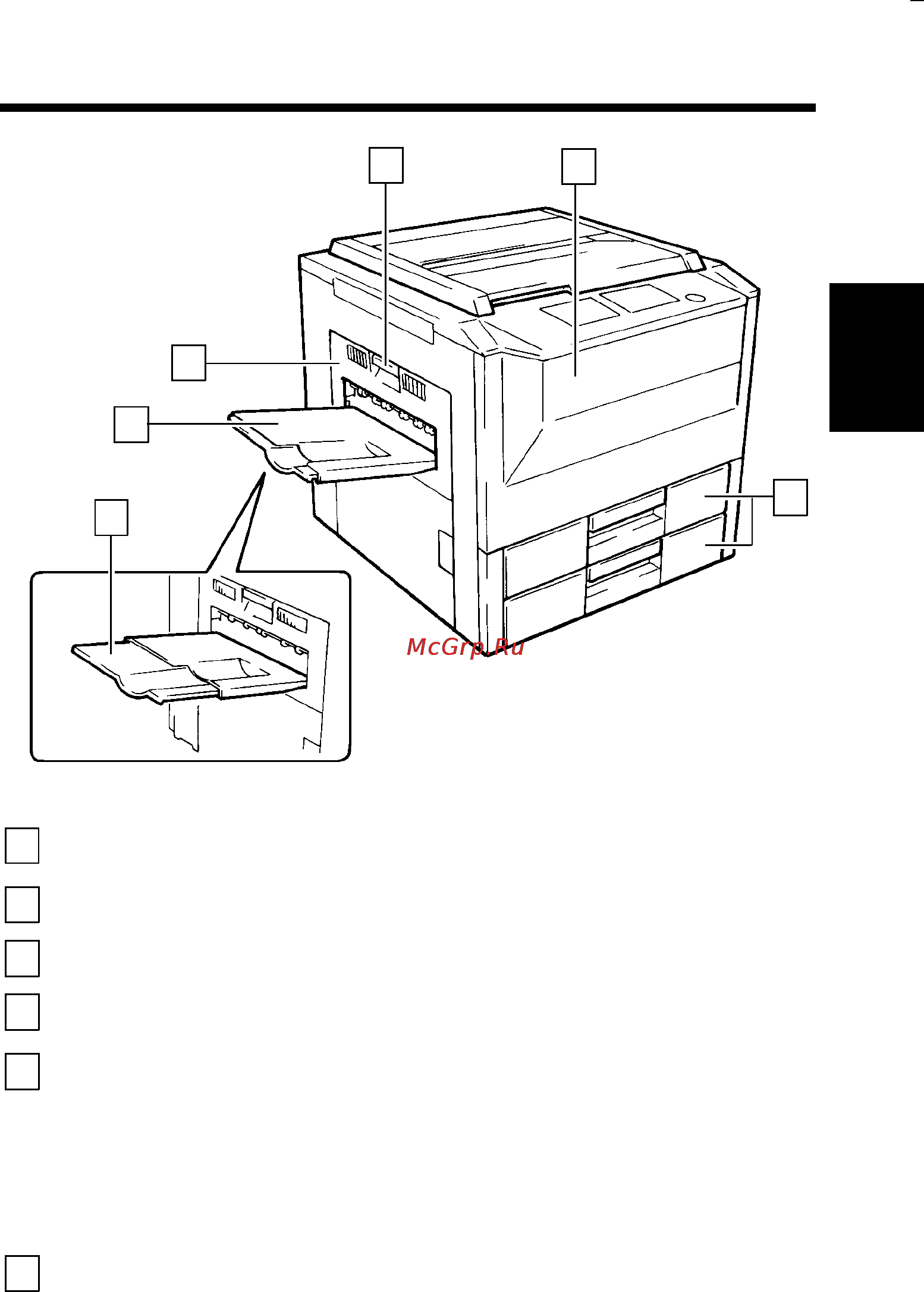

1136O064AA

Copy Tray Extender

: Slide this Extender out when making copies on

large-size paper.

Exit Tray

: Holds copies fed out of the copier.

Left Door

: Open for clearing a paper misfeed.

➭

p. 168

Left Door Lock

Release Lever

: Operate to open the Left Door.

Front Door

: Open to:

• Replace the Toner Bottle.

➭

p. 146

• Clear a paper misfeed.

➭

p. 168

• Clean the Corona Units.

➭

p. 210

Closing the Front Door after a misfeed has been

cleared will turn the Misfeed Indicator on the

control panel OFF.

1st/2nd Drawer

: Each holds up to 250 sheets of paper.

➭

p. 148

2. Copier Parts and Accessories

Chapter 2

First Things to Know about EP2050
