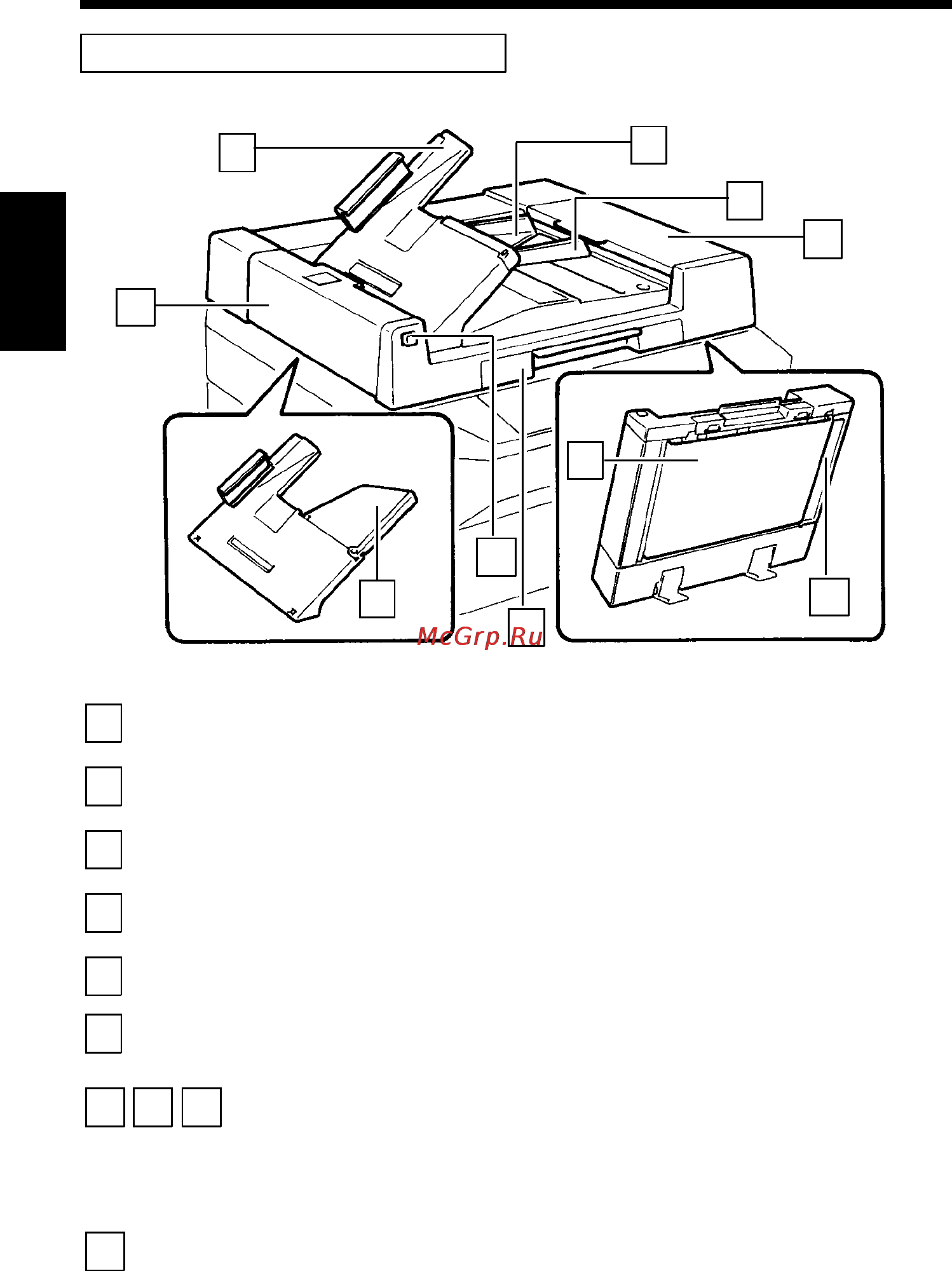

Duplexing Document Feeder AFR-7
1
1139O1060A
2
F3
3
F1
F4
4
5
F2
6
1
Document Exit
Tray
: Receives originals that are automatically ejected
from the AFR-7.
2
Document Feed
Tray
: Load the originals face up on this tray.
➭
p. 43
3
Document Guide
Plates
: Slide the plates as necessary to the size of the
originals.
➭
p. 43
4
Document
Transport Belt
: Moves the original from the Document Feed Tray
to the Document Exit Tray.
➭
p. 211
5
Lock Release Lever
: Press upward to raise the AFR-7.
6
Document Exit
Tray Extender
: Pull out to make copies on larger paper.
➭
p. 43
Document Feed Unit Door F1, Document Turnover/Exit Unit Door F3,
Document Turnover/Feed Unit Guide Plate F4
:
Open to clear an original misfeed.
➭
p. 178
F2
Document Turnover/Exit Unit Door Lock Release Key F2
:
Press to open Document Turnover/Exit Unit Door F3. Holding F2 down,
open F3.
➭
p. 178
F1 F3 F4
2. Copier Parts and Accessories
Chapter 2
First Things to Know about EP2050
16
