![Konica Minolta EP2050 [99/225] Making copies](/img/pdf.png)
Konica Minolta EP2050 [99/225] Making copies
![Konica Minolta EP2050 [99/225] Making copies](/views2/1122110/page99/bg63.png)
Group
Originals
Copies
1st Bin
Copies
Copies
2nd Bin
3rd Bin
1076O147
•

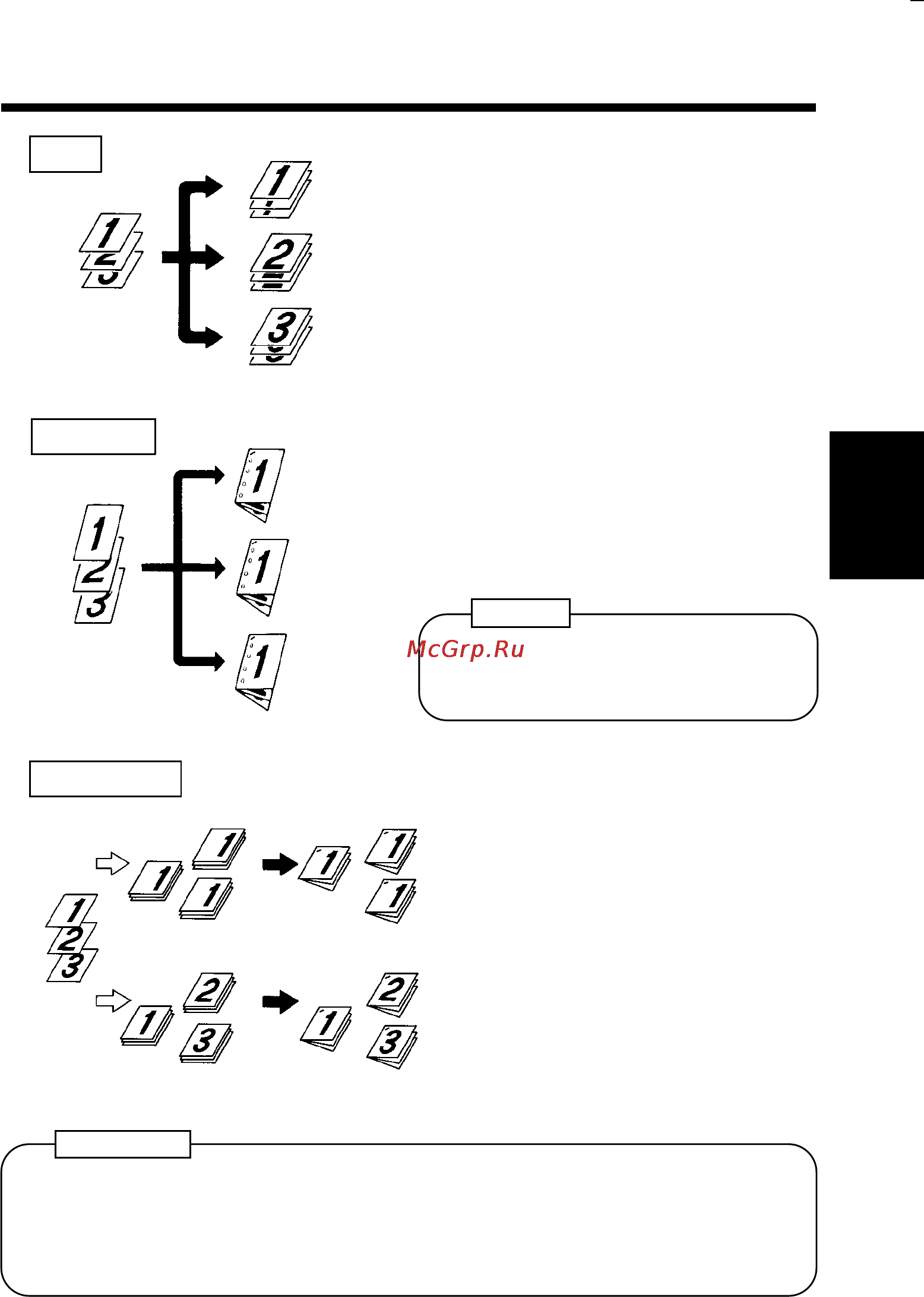

In the Group Mode, the copies made
from each single original are
separated into groups. Each group
contains multiple copies of the same
originals.
Manual Staple
Originals
Manual Staple
Copy Stacks
(Grouped)
Copy Sets
(Sorted)
Manual Staple
1076O191
•
This mode allows you to staple copy
sets already made in the Sort, Group
or Hole Punch Mode.
(except the Hole Punch mode for
copies made in the Non-Sort).
(Only when the copier is equipped
with a Staple Sorter.)
1st Bin
3rd Bin
Copies
Originals
2nd Bin
Copies
Copies
1136O171CA
Hole Punch
•
This mode allows you to have holes
punched for filing the copy sets
made in the Non-Sort, Sort, Group,
or Sort-and-Staple Mode.
(Only when the copier is equipped
with a Staple Sorter ST-206.)
4. System Job Setting
The copier has been factory-set to automatically select Sort. The User’s Choice
can, however, be used to change this default setting to any other finishing
mode.
User’s Choice
➭
pp. 132, 135
Useful Tip
Holes can be punched only in A3L
or A4C paper.
NOTE
Chapter 3
Making Copies
87
