6. Supplementary Function Setting
1136P331
Book 1
OHP
Inter-
leaving
Page
Insertion
Cover
(Front)
Book 2
Margin 1
Margin 2
Erase 1
Erase 2
Erase 3
Erase 4
Display
OK
Cover
(Front
&
Back)
1136P331CA

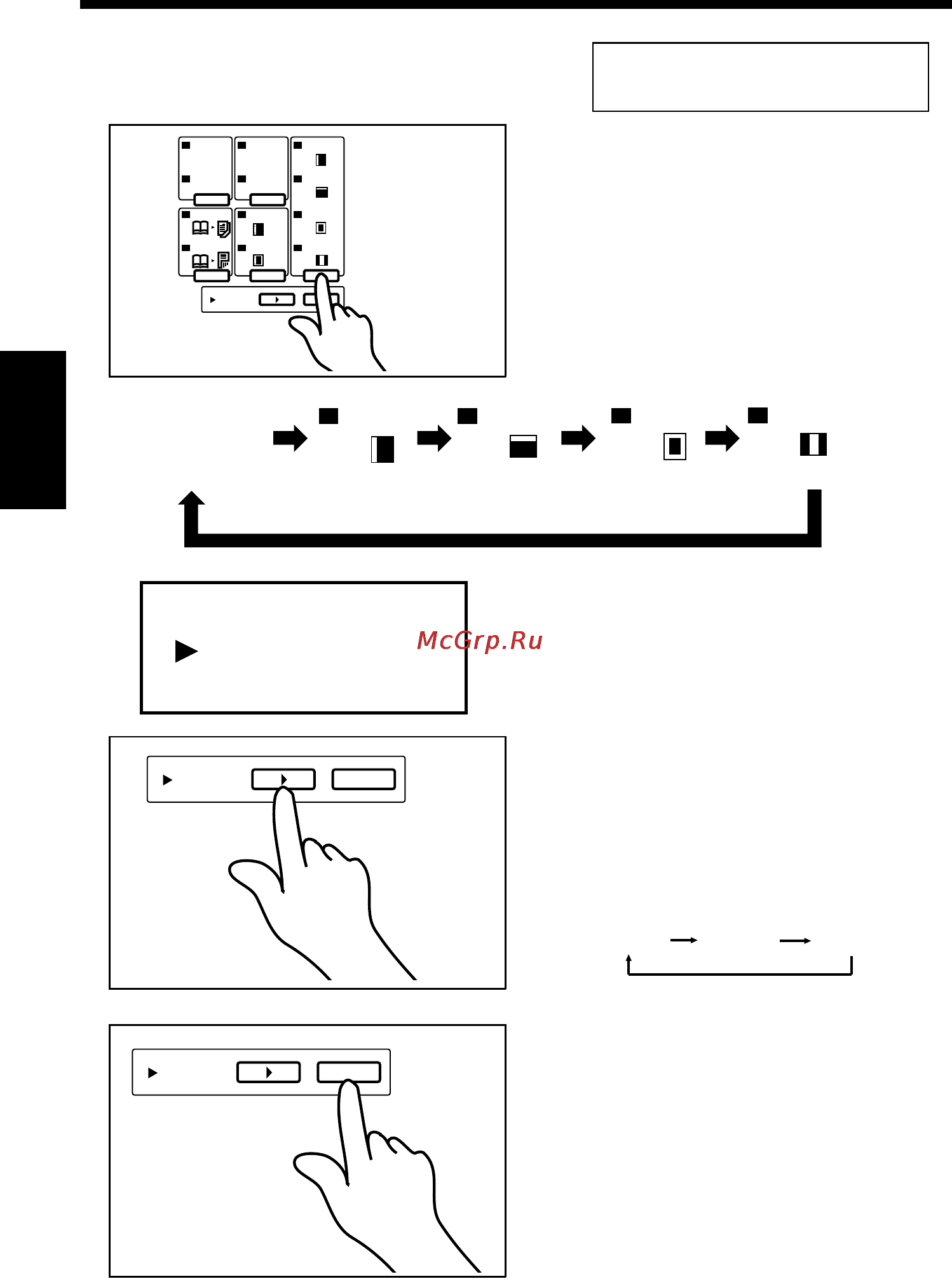

Press the Erase Mode Key to
select the desired erase function.
Each time the Key is pressed, a
new erase function is selected, as
indicated by a lit LED.
If you have selected Erase 2 or 3,
this completes the procedure.
Selecting a Particular Erase
Function
1
None of Four
LEDs Lights Up.
Erase 1
Erase 2
Erase 3
Erase 4
1136P335CA
1136P333CA
Display
OK
1136P333CA
If you have selected Erase 1 or 4,
a screen that allows you to select
the margin width appears on the
Message Display.
Press the Select Key as necessary
to select the desired erase width.
Each time the Key is pressed, the
cursor in the Message Display
moves to a new erase width as
follows.
10 mm 15 mm 20 mm
2
1136P334CA
Display
OK
1136P334CA
Press the Enter Key to validate
the selection of erase width.
The initial screen reappears on
the Message Display and this
completes the setting of the
Erase Mode.
3
Erase width
10mm 15mm
20mm
1136P332DA
Chapter 3
Making Copies
100
