is associated.

Location

The descriptive location configured for the managed AP.

Radio

Display the managed AP radio interface the client is associated to and its configured

mode.

VLAN

If the client is on a VAP using VLAN data forwarding mode, the current assigned

VLAN is displayed.

Transmit Data Rate

Display the rate at which the client station is currently transmitting data.

Network Time

Display the amount of time that has passed since this client first authenticated with

the network.

STBC Capable

Display the Space Time Block Code (STBC) mode of the client.

Detected IP Address

Display the IPv4 address of the client.

Click the drop-down menu to select a MAC address of the client to view detailed status information about the client

and its association with the access point.

Click the Disassociate to disassociate the client from the managed AP.

After clicking the Client QoS tab under the Status tab, the following page will appear:

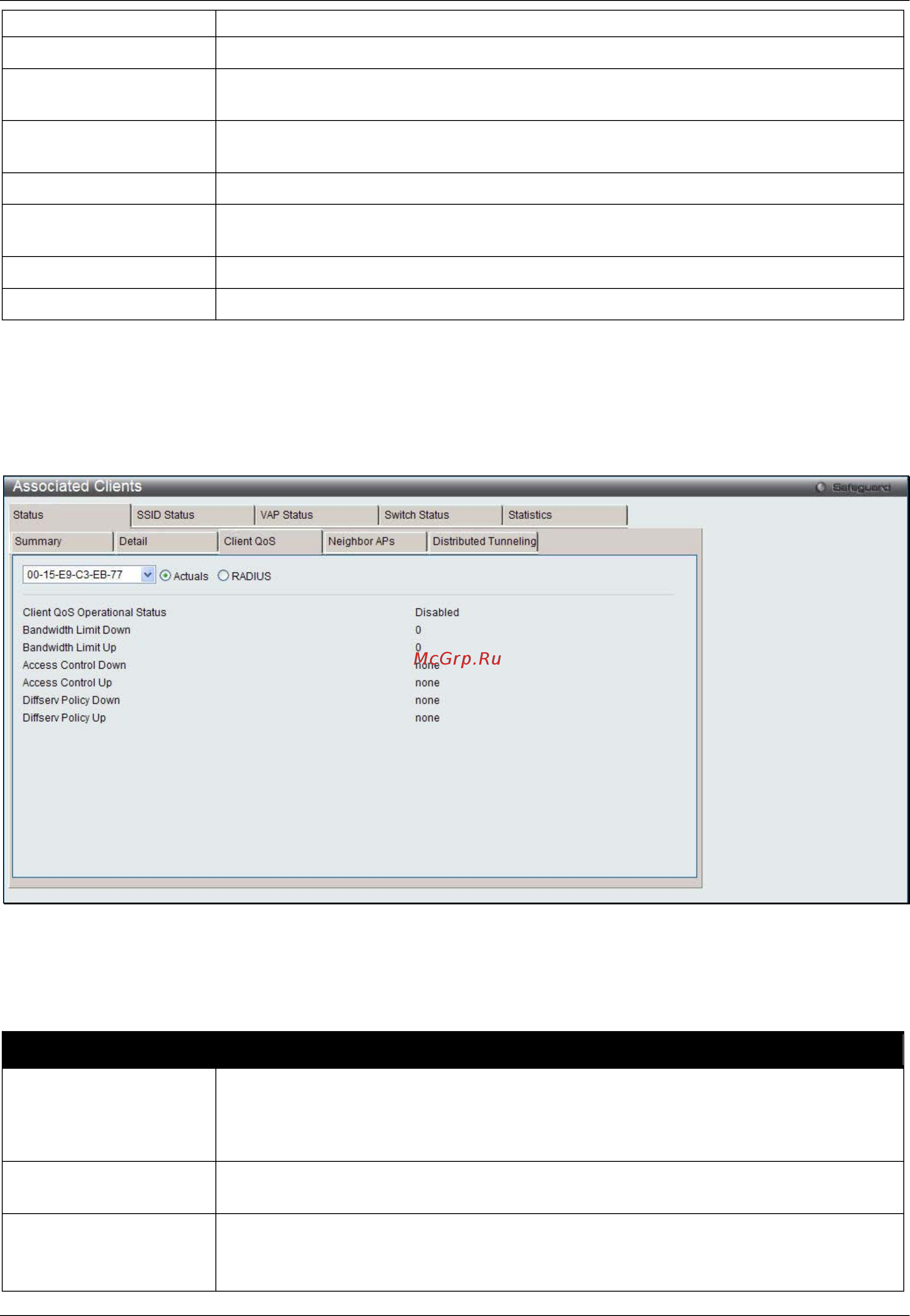

Figure 2-36 Associated Clients Status - Client QoS window

Click the drop-down menu to select the MAC address of the client with the information to view.

The fields that can be displayed are described below:

Parameter Description

Actual / RADIUS Click the Actual radio button to display either the actual status parameters

configured on the AP. Click the RADIUS radio button to display any client QoS

parameters that were obtained for the client from a RADIUS server when using

802.1X authentication.

Client QoS

Operational Status

Display whether QoS is enforced for the client.

Bandwidth Limit Down

Display the maximum rate at which the client receives traffic from the AP in bits per

second.

The rate shown in this field is the configured value rounded down to the nearest 64
