DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
365

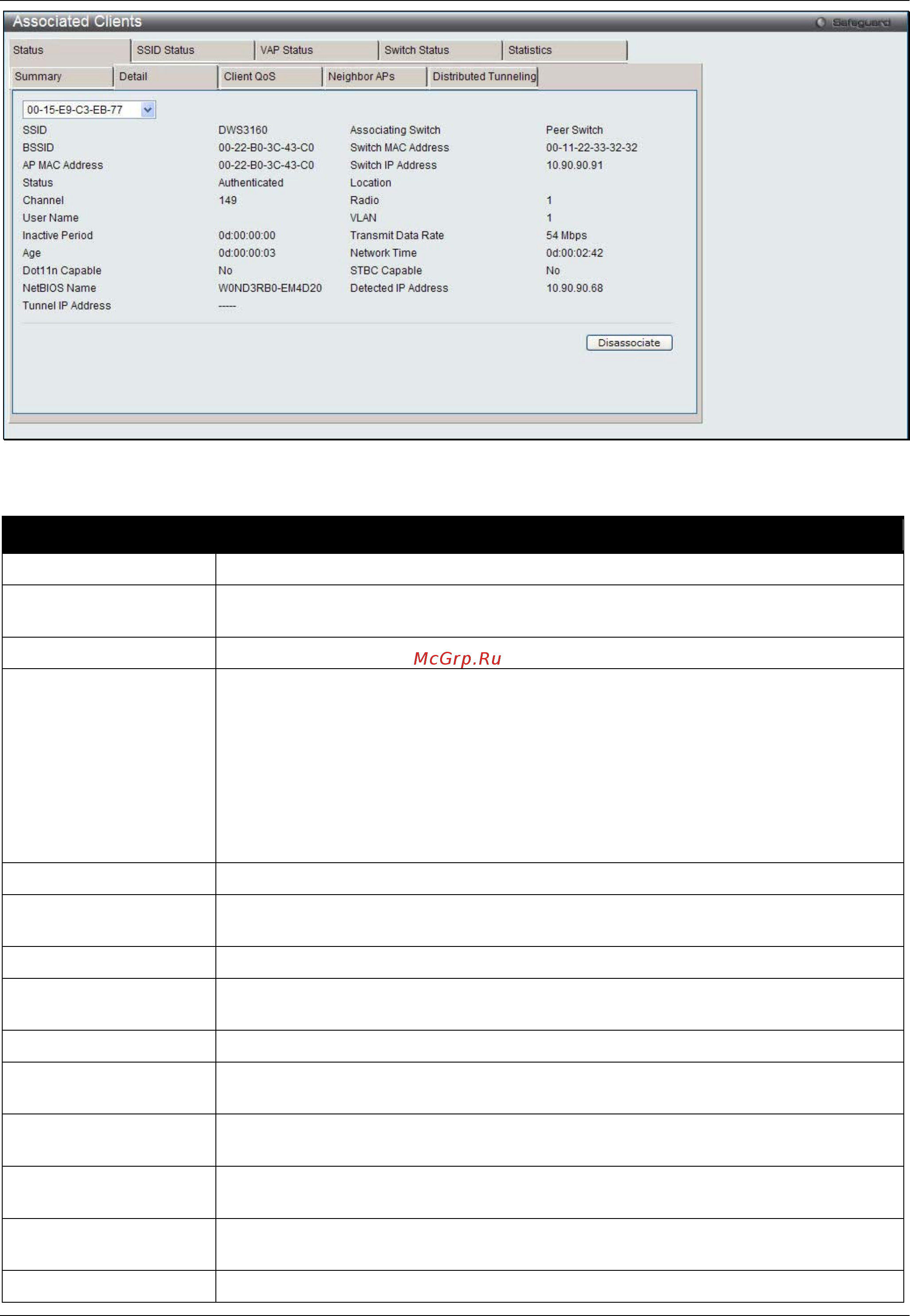

Figure 2-35 Associated Clients Status - Detail window
The fields that can be displayed are described below:
Parameter Description
SSID
Display the network on which the client is connected.
BSSID
Display the Ethernet MAC address for the managed AP VAP where this client is
associated.
AP MAC Address
Display the base AP Ethernet MAC address for the managed AP.
Status
Display whether or not the client has associated and/or authenticated. The valid
values are:
• Associated -The client is current associated to the managed AP.
• Authenticated - The client is currently associated and authenticated to the
managed AP.
• Disassociated -The client has disassociated from the managed AP, if the client
does not roam to another managed AP within the client roam timeout, it will be
deleted.
Channel
Display the operating channel for the client association.
User Name
Display the user name of client that have authenticated via 802.1X. Clients on
networks with other security modes will not have a user name.
Inactive Period
Display the amount of time since data packets were last received from the client.
Age
Display the amount of time that has passed since the switch received new status or
statistics updates for this client.
Dot11n Capable
Display whether the associated client supports the IEEE 802.11n standard.
NetBIOS Name
Display the NetBIOS name of the wireless client. For Microsoft Windows hosts, the
NetBIOS name is typically the same as, or based on the host name.
Tunnel IP Address
This field displays “-----” for all non-tunneled clients. For a tunneled client, this is the
assigned tunnel IP address.
Associating Switch
Display whether the AP that the wireless client is associated to is managed by the
local switch or a peer switch.
Switch MAC Address
Display the MAC address of the switch that manages the AP to which the wireless
client is associated.
Switch IP Address
Display the IP address of the switch that manages the AP to which the wireless client
