DWS-3160 Series Gigabit Ethernet Unified Switch Web UI Reference Guide
368
switch.
• Ad Hoc Rogue - The client was detected as part of an ad hoc network with this
AP.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Distributed Tunneling tab under the Status tab, the following page will appear:

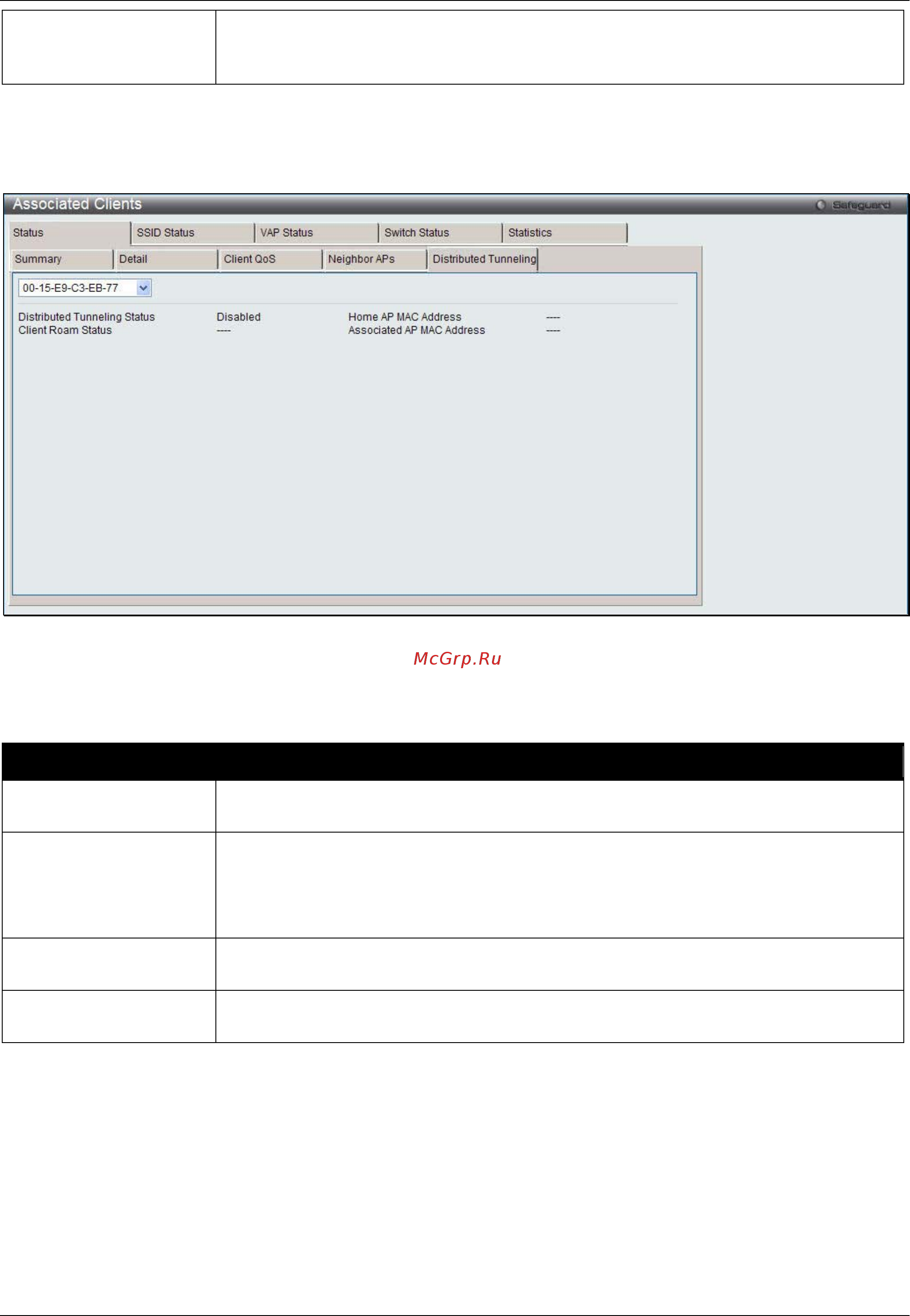

Figure 2-38 Associated Clients Status - Distributed Tunneling window
Click the drop-down menu to select the MAC address of the client with the information to view.
The fields that can be displayed are described below:
Parameter Description
Distributed Tunneling
Status
Display whether this client is associated with a network that supports L2 distributed
tunneling.
Client Roam Status
Display whether the client is on the Home AP or has roamed to another AP and is
using a tunnel. The field can display one of the following values:
• Home - Client is not using a tunnel.
•
Roaming - Client is using a tunnel.
Home AP MAC
Address
Display the MAC Address of the Home AP for the client. The value is meaningful
only for clients that are associated with networks enabled for distributed tunneling.
Associated AP MAC
Address
Display the MAC Address of the AP to which the client roamed via the distributed
tunneling protocol.
After clicking the SSID Status tab, the following page will appear:
