Protection Control SiBE311209
99 Function

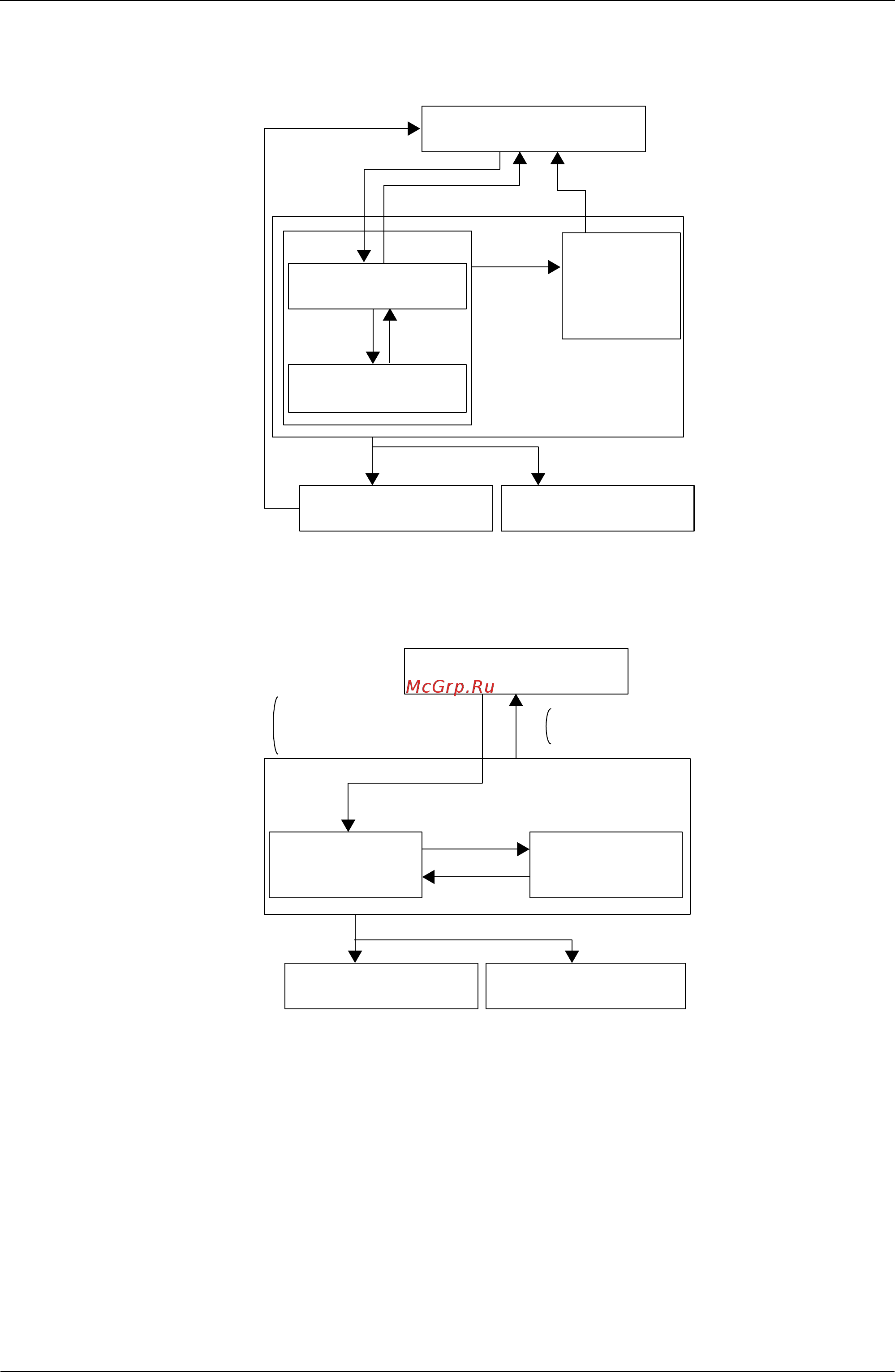

[In heating operation]
< Outdoor unit >
Normal operation
Pc > 3.04
MPa
Pc < 2.89MPa
Pc < 2.55MPa
Pc > 3.30MPa
Make opening
degree adjustment
of electronic
expansion valve
(Y1E) (see
∗
3)
Compressor system (see ∗2):
1 step down per 10 sec.
Pc > 3.04
MPa
Pc < 2.94
MPa
Compressor system (see *2):
1 step up per 10 sec.
Pc > 3.64
MPa
High pressure switch
(4.0MPa) is activated.
Restart standby
(2 times per 30 min. at maximum)
Stop due to error
(“
E3
” displayed)
< Function unit >
Normal operation
&
• Operating in 2-stage
compression mode
• PcK > 3.04MPa
• PcK - PcN > 0.49MPa
OR
• PcK < 2.89MPa
• PcK - PcN < 0.29MPa
• PcK < 2.94MPa
• PcK > 3.04MPa
INV. compressor of
function unit:
1 step down per 10 sec.
INV. compressor of
function unit:
1 step up per 60 sec.
High pressure switch
(4.0MPa) is activated.
Restart standby
(2 times per 30 min. at maximum)
Stop due to error
(“
E3
” displayed)
• PcK > 3.64MPa
Pc: Value detected by the high pressure sensor of master unit.
∗2: For compressor system steps, refer to information on P.92 and 93.
∗3: Return high-pressure refrigerant to the low pressure side.
PcK: Value detected by the high pressure sensor of function unit.
PcN: Value detected by the high pressure sensor of master outdoor unit.
