Troubleshooting by Indication on the Remote Controller SiBE311209
313 Service Diagnosis

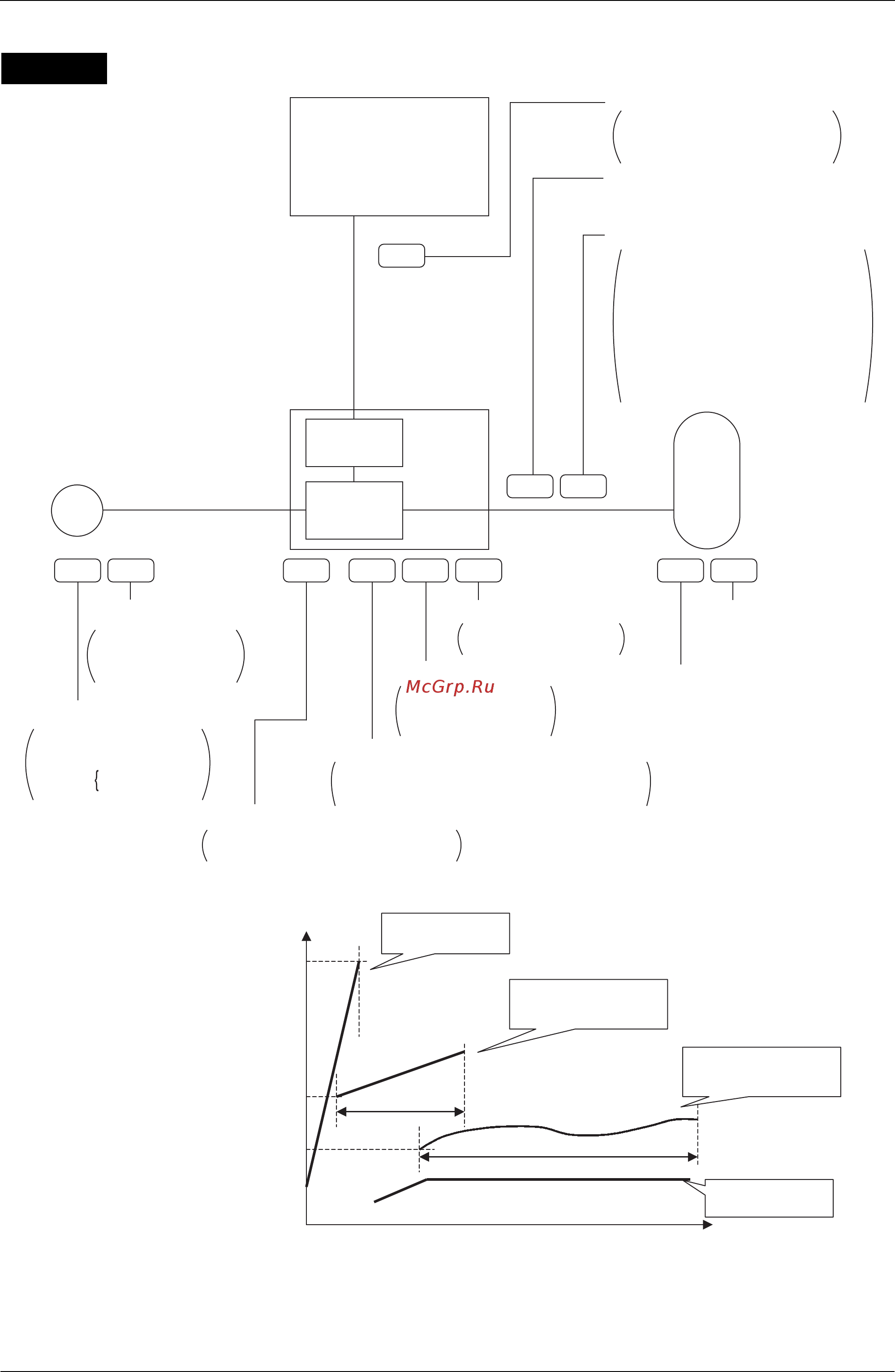

Concept of Inverter-related Error Codes
CHECK 10
260 consecutive sec.
5 consecutive sec.
460V: 19.0A
(230V: 33.5A)
460V: 16.1A
(230V: 27.6A)
460V: 32.3A
(230V: 59.1A)
P4L1 L4U2 P1 PJ E5 L9
L5 L8
LC
PCB mismatchingImbalanced power supply voltage
Power supply voltage error
Radiation fin temperature rise
Defective radiation fin thermistor
Transmission error
Overcurrent of inverter compressor
Main (Service monitor) PCB
Compressor
Current
Time
L5
L8
L8
Max. control
Instantaneous overcurrent of inverter compressor
(When inverter output current exceeds 460V units:
32.3A 230V units: 59.1A even instantaneously)
For 460V units
An overcurrent of 19.0A or more continues
for a period of 5 consecutive seconds
An overcurrent of 16.1A or more continues
for a period of 260 consecutive seconds.
For 230V units
A current of 33.5A or more continues for a
period of consecutive 5 sec.
A current of 27.6A or more continues for a
period of consecutive 260 sec.
Defective startup of inverter compressor
(Compressor stops running
immediately after it starts up.)
Error codes related to
compressor current
Defective radiation inverter
When transmissions between the
outdoor unit main PCB and the
inverter PCB are not normal
Weak-current
part
Heavy-current
part (Power
transmission etc.)
Power supply
(3 phase, 460VAC)
(3 phase, 230VAC)
When imbalance in
voltages among 3
phases comes to 2%
or more
When the radiation fin thermistor resistor detects
an open circuit (-30˚C or less) or a short
circuit (120˚C or more)
When the radiation fin
temperature reached
87˚C or more
Inverter compressor lock
(Compressor does not run at all.)
When incorrect inverter
PCB is connected
Compressor overcurrent
(Electronic thermal 2)
Compressor overcurrent
(Electronic thermal 1)
Inverter
PCB
When the power supply
voltage falls out of the
range of 460VAC±10%
230VAC±10%
When the radiation heavy current part of
inverter gets defective (gives no output)
Instantaneous
overcurrent
