SiBE311209 Outline of Control (Indoor Unit)
Function 116
9.2 Thermostat Control
9.2.1 Thermostat Control for VRV Multi System
The thermostat control for VRV multi system is available in the 3 patterns shown below.
1. Using suction air thermistor (body thermostat) and remote control thermistor in
combination (Factory setting)
· For VRV multi system, the suction air thermistor (body thermostat) of indoor unit and the
thermistor of remote controller (BRC1C62) are used in combination to control room
temperatures.
· For the operating ranges of thermistors, refer to information on the following page.
2. Only using suction air thermistor (body thermostat)
· If the remote control thermistor is unable to sample room temperatures, it will be needed to
make a change to the thermistor selection from "Remote control thermistor + Suction air
thermistor" to "Suction air thermistor" by the use of field setting mode of the remote
controller.
· For control without using a remote controller such as group control, the system will be
changed to control only using the suction air thermistor.
3. Replacing suction air thermistor with remote sensor
· If the suction air thermistor is unable to detect accurate room temperatures (in case of the
ceiling chamber type), it will be recommended to replace the suction air thermistor of indoor
unit with a remote sensor.
∗1. The simplified remote controller BRC2C51 incorporates a remote control thermostat.
∗2. The remote controller setting 10 (20) is displayed as 2-01 (Use). For group control, however,
it is automatically changed to “Not use” of remote control thermostat.
Remark: For the SkyAir Series, factory setting is made to “Only using suction air thermistor”.

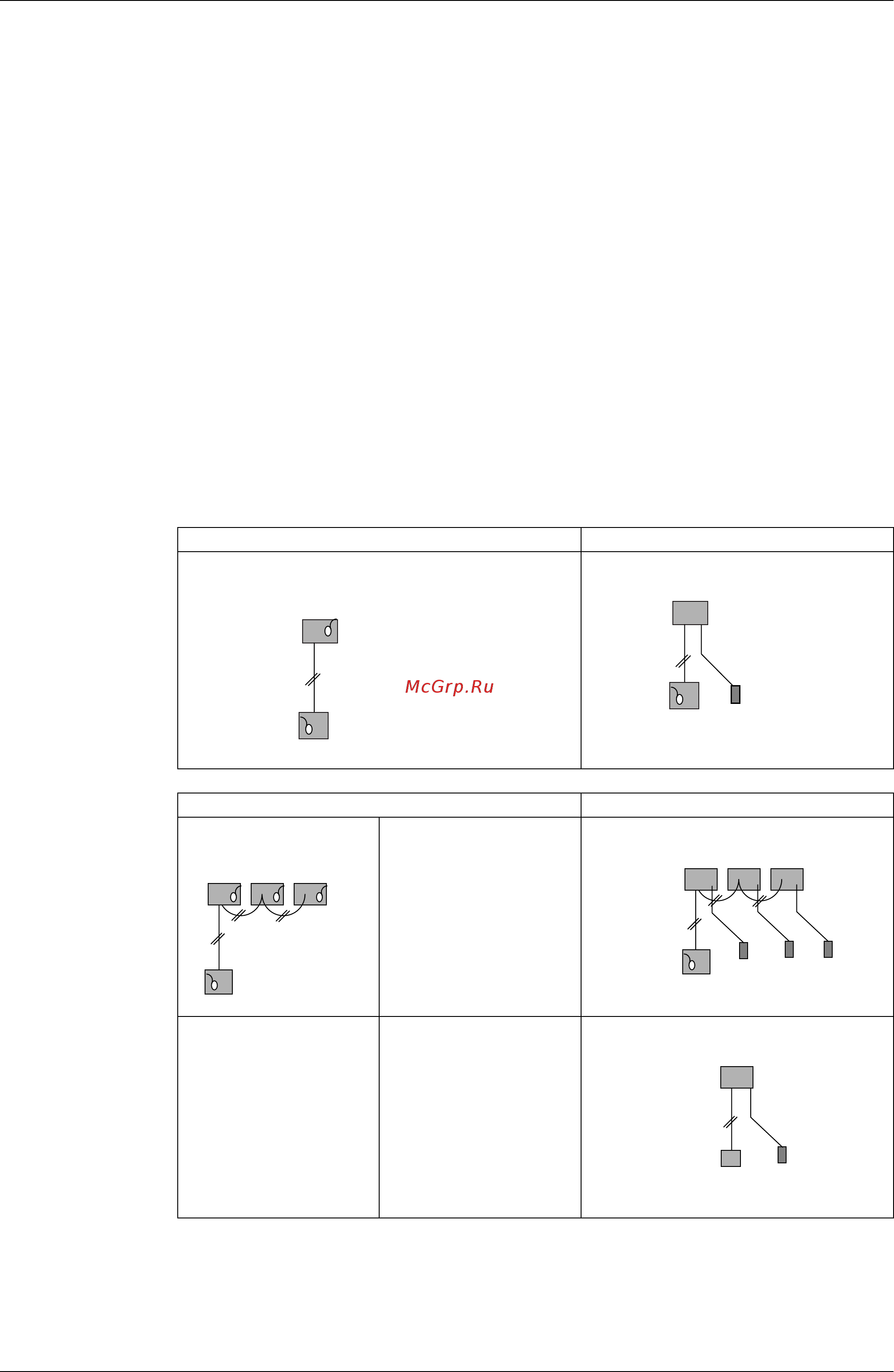

Thermostat control 1 and 2 Thermostat control 3
· Using suction air thermistor and remote control
thermistor in combination (Factory setting)
· Only using suction air thermistor
· Replacing suction air thermistor with a
remote sensor
Thermostat control 2 Thermostat control 3
Only using suction air
thermistor:
{ For group control
Since the remote controller
is set to group control
mode, the thermostat
setting of remote controller
is automatically changed to
"
Not use
"
. (See
∗
2)
Replacing suction air thermistors with
remote sensors:
Only using suction air
thermistor:
{ The remote controller is
· wireless remote
controller, or
· simplified remote
controller BRC2C51.
(See
∗
1)
Since the remote controller
has no thermistor, the
thermostat setting of
remote controller is
automatically changed to
“Not use”. (See
∗
2)
Replacing suction air thermistor with a
remote sensor:
Indoor unit
Remote controller (BRC1C62)
Simplified remote controller (BRC2C51) (See ∗1)
Indoor unit
Remote
sensor
Remote controller (BRC1C62)
Simplified remote controller (BRC2C51)
Remote controller
(BRC1C62)
Remote sensor
Remote controller
(BRC1C62)
Remote
sensor
In case a simplified remote
controller is used
