Troubleshooting by Indication on the Remote Controller SiBE311209
249 Service Diagnosis
4.25 Current Sensor Abnormality
Remote
Controller
Display
J2
Applicable
Models
Outdoor Unit: RTSQ10~16PAY1
Method of Error
Detection
Error is detected according to the current value detected by current sensor.
Error Decision
Conditions
When the current value detected by current sensor becomes 5A or lower, or 40A or more during
STD compressor operation
Supposed
Causes
Defective current sensor (A6P, A7P)
Defective outdoor unit PCB
Defective compressor (M2C, M3C)

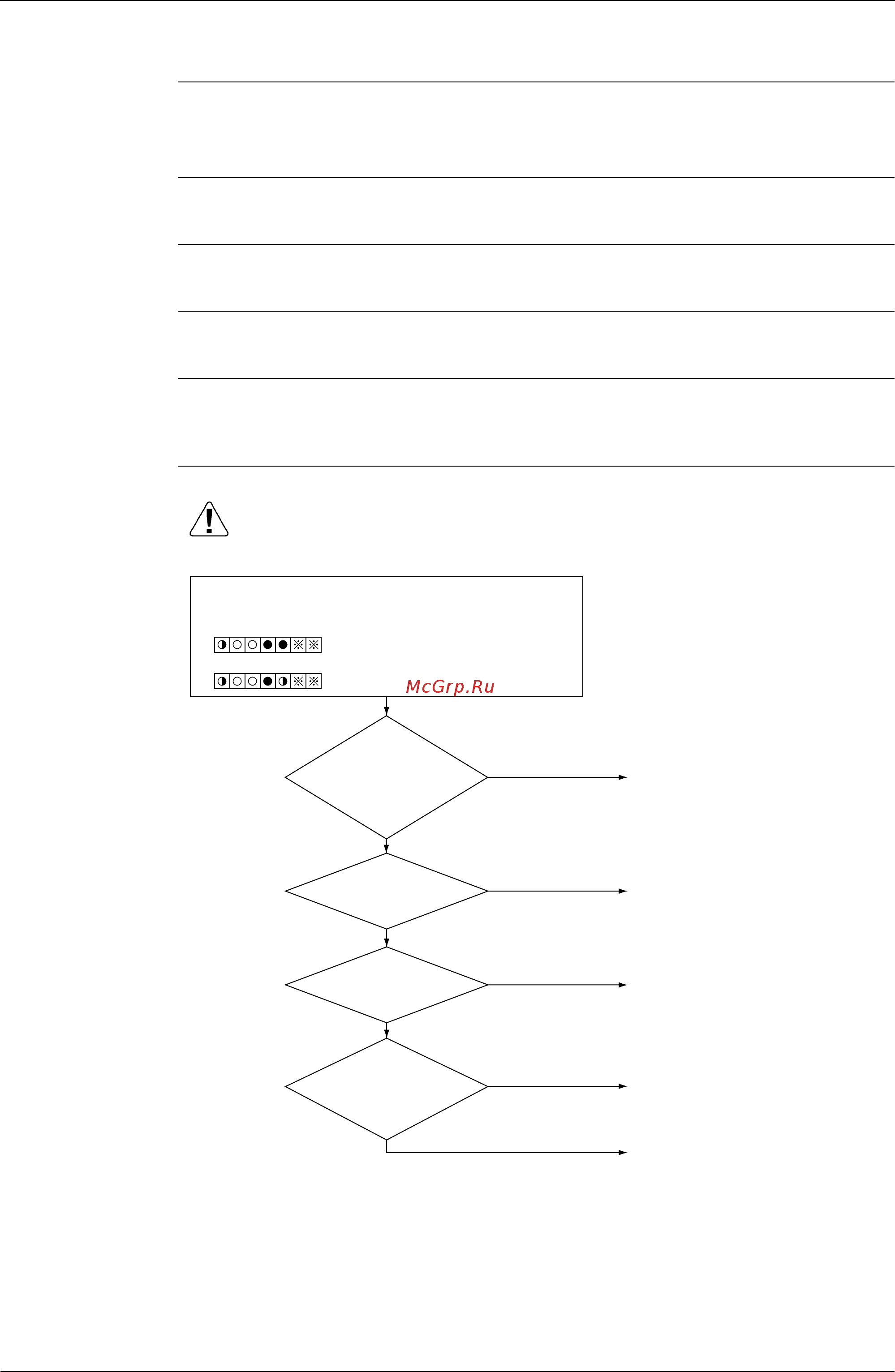

Troubleshooting
Caution
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.
Check the current sensor corresponding to the error code “
J2
”
in the monitor mode.
{
Confirmation of error 4 shows as follows:
→
Current sensor for STD compressor 1
{
Confirmation of error 4 shows as follows:
→
Current sensor for STD compressor 2
Is the connector for
current sensor
connected to X25A,
X26A on outdoor unit
PCB (A1P)?
NO
YES
Are the current sensors
inversely connected to two
STD compressors?
NO
YES
Applicable
compressor coil wire
is broken.
NO
YES
Is the current
sensor mounted on
the T-phase (A6P)
wire?
YES
NO
Connect the connector, and
operate unit again.
Correct the connections between
the current sensors and the STD
compressors.
Replace the compressor.
(STD compressor 1 or 2)
Mount the current sensor
correctly, and operate unit again.
Replace the current sensor or
outdoor unit PCB.
