Troubleshooting by Indication on the Remote Controller SiBE311209
301 Service Diagnosis
4.56 System is not Set yet
Remote
Controller
Display
UF
Applicable
Models
All indoor unit models
Outdoor Unit: RTSQ8~16PAY1
Method of Error
Detection
On check operation, the number of indoor units in terms of transmission is not corresponding to
that of indoor units that have made changes in temperature.
Error Decision
Conditions
The error is determined as soon as the abnormality aforementioned is detected through
checking the system for any wrong connection of units on the check operation.
Supposed
Causes
Improper connection of transmission wiring between indoor-outdoor units and outdoor-
outdoor units
Failure to execute check operation
Defective indoor unit PCB
Stop valve is not opened
Troubleshooting
Caution
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.

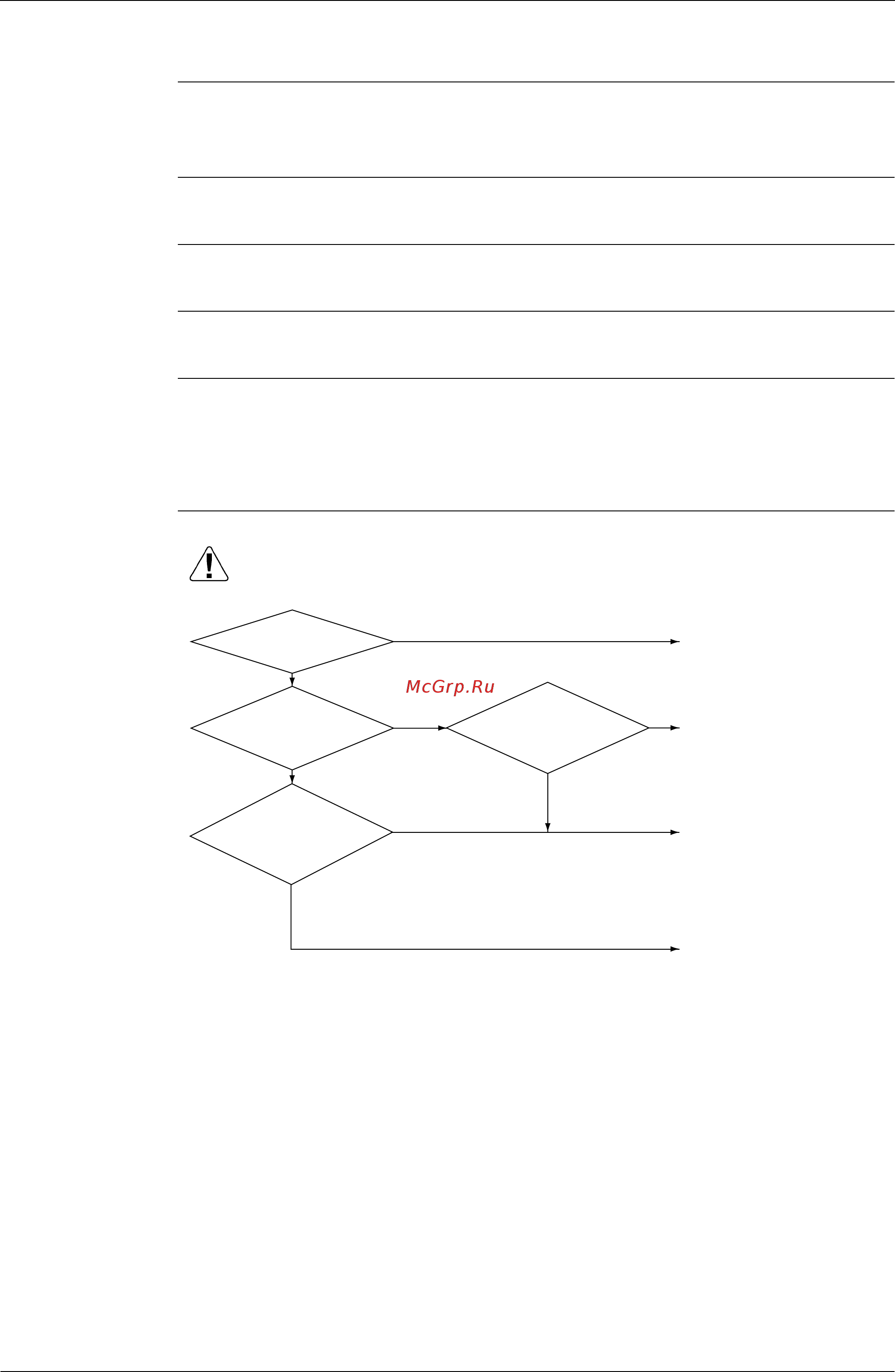

YES
NO
Are the stop valves
opened?
Open the stop valve.
NO
NO
YES
YES
YES
NO
Is the check
operation carried
out?
Is indoor - outdoor and
outdoor - outdoor unit
transmission wiring
normal?
Is indoor-outdoor and
outdoor-outdoor unit
transmission wiring
normal?
Replace the indoor unit PCB.
After fixing the incorrect
wiring, press and hold the
RESET button on the master
outdoor unit PCB for 5
seconds.
∗ The unit will not run for up to
12 minutes.
Wiring check operation may
not have been carried out
successfully.
