SiBE311209 Field Setting
Test Operation 158
3.1.7 Centralized Control Group No. Setting
BRC1E Type In order to conduct the centralized remote control using the central remote controller and the
unified ON/OFF controller, Group No. settings should be made by group using the operating
remote controller.
Make Group No. settings for centralized remote control using the operating remote controller.
Note:
For wireless remote controller, see the following.
For setting group No. of Heat Reclaim Ventilator and wiring adaptor for other air
conditioners, etc., refer to the operation manual attached.
NOTICE
Enter the group No. and installation place of the indoor unit into the attached installation table.
Be sure to keep the installation table with the operation manual for maintenance.

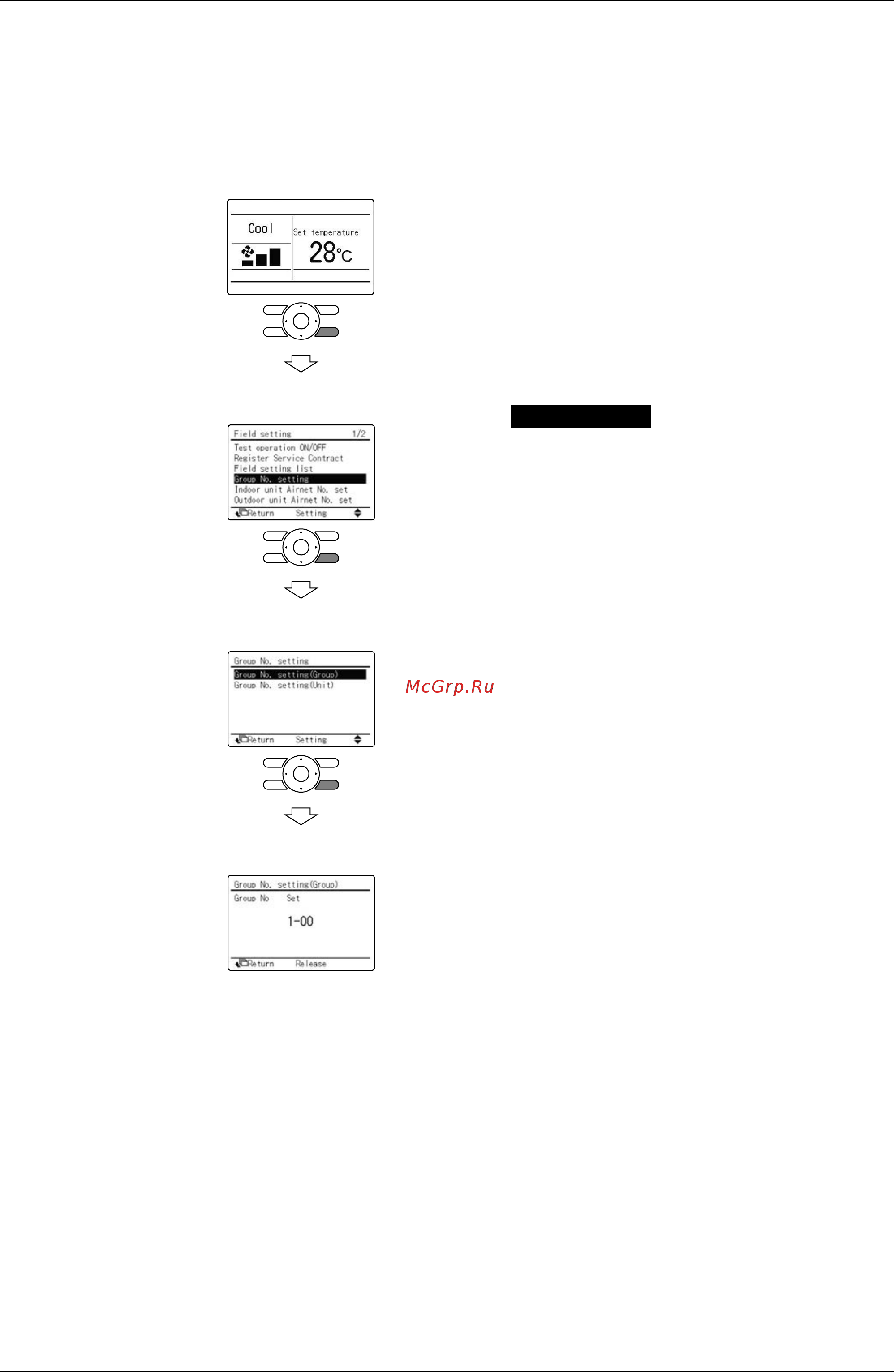

(1) <Basic screen>
1. Press and hold Cancel button for 4 seconds or more.
Field setting menu in displayed.
(2) <Field setting menu screen>
2. Select in the field setting menu, and press
Menu/Enter button.
Group No. setting screen is displayed.
(3) <Group No. setting>
3. Select Group No. setting (Group), and press Menu/Enter
button.
Group No. setting (Group) screen is displayed.
(3) <Group No. setting (Group)>
4. Select the group No. by using ST (Up/Down) button.
Press Menu/Enter button.
Group No. setting
