SiBE311209 Troubleshooting by Indication on the Remote Controller
Service Diagnosis 284
4.49 Transmission Error between Remote Controller and
Indoor Unit
Remote
Controller
Display
U5
Applicable
Models
All indoor unit models
Method of Error
Detection
Micro-computer checks transmission between indoor unit and remote controller is normal.
Error Decision
Conditions
Normal transmission does not continue for specified period.
Supposed
Causes
Error of indoor unit remote controller transmission
Connection of 2 main remote controllers (when using 2 remote controllers)
Defective indoor unit PCB
Defective remote controller PCB
Transmission error caused by noise

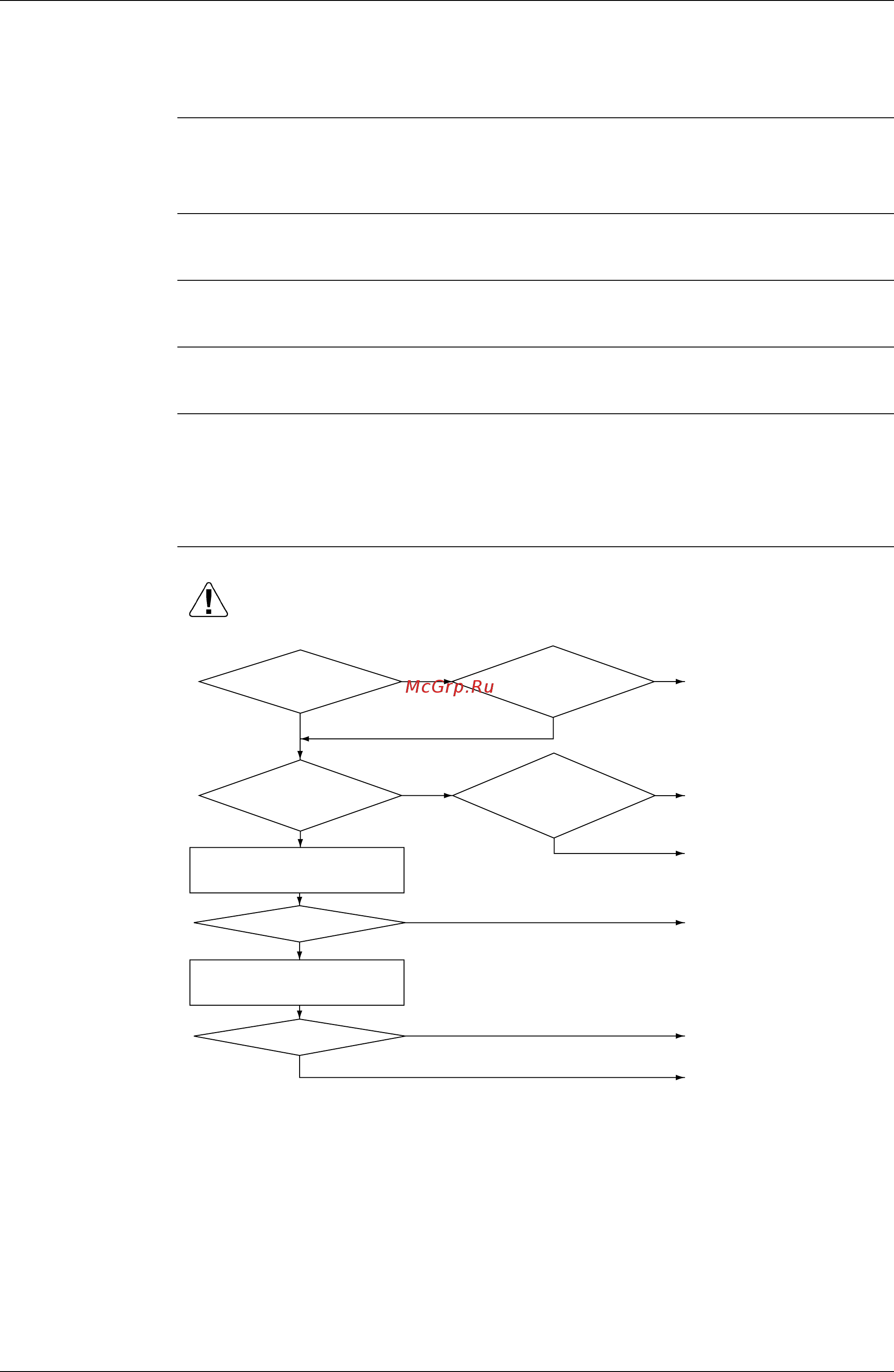

Troubleshooting
Caution
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.
Set one remote controller to
"SUB"; turn the power supply
OFF once and then restart.
Using 2-remote
controllers control.
YES
SS1 of both remote
controllers is set to
"MAIN."
All indoor unit PCB
micro-computer
monitors blink.
Replace the remote controller.
Normal
Replace the indoor unit PCB.
Normal
Operation returns to
normal when the power is
turned OFF momentarily.
YES
NO
NO
NO NO
YES
YES
NO
NO
YES
YES
Replace the indoor unit PCB.
There is possibility of error
caused by noise. Check the
surrounding area and turn
ON again.
Normal
Normal
There is possibility of error
caused by noise. Check the
surrounding area and turn
ON again.
