Outdoor Unit PCB Layout SiBE311209
145 Test Operation
1.5 Check in Normal Operation
After all installation works are completed, operate the unit normally and check the following:
Make sure the indoor units and outdoor unit are operating normally.
Operate each indoor unit separately and make sure the corresponding outdoor unit is also
operating properly.
Check if cold or hot air is coming out from the indoor unit.
Press the fan direction and fan strength buttons on the remote controller to check if they are
operating properly.
Note:
Heating is not possible if the outdoor air temperature is 24°C or higher. Refer to the
operation manual.
If a knocking sound is heard in the liquid compression of the compressor, stop the unit
immediately and then energize the crankcase heater for a sufficient length of time before
restarting the operation.
Once stopped, the compressor will not restart in about 5 minutes, even if the ON/OFF button
on the remote controller is pressed.
When the system operation is stopped by the remote controller, the outdoor unit may
continue operation for a maximum of 5 minutes.
The outdoor unit fan may rotate at low speeds in the low night noise setting or the external
low noise level setting is made; but this is not an error.

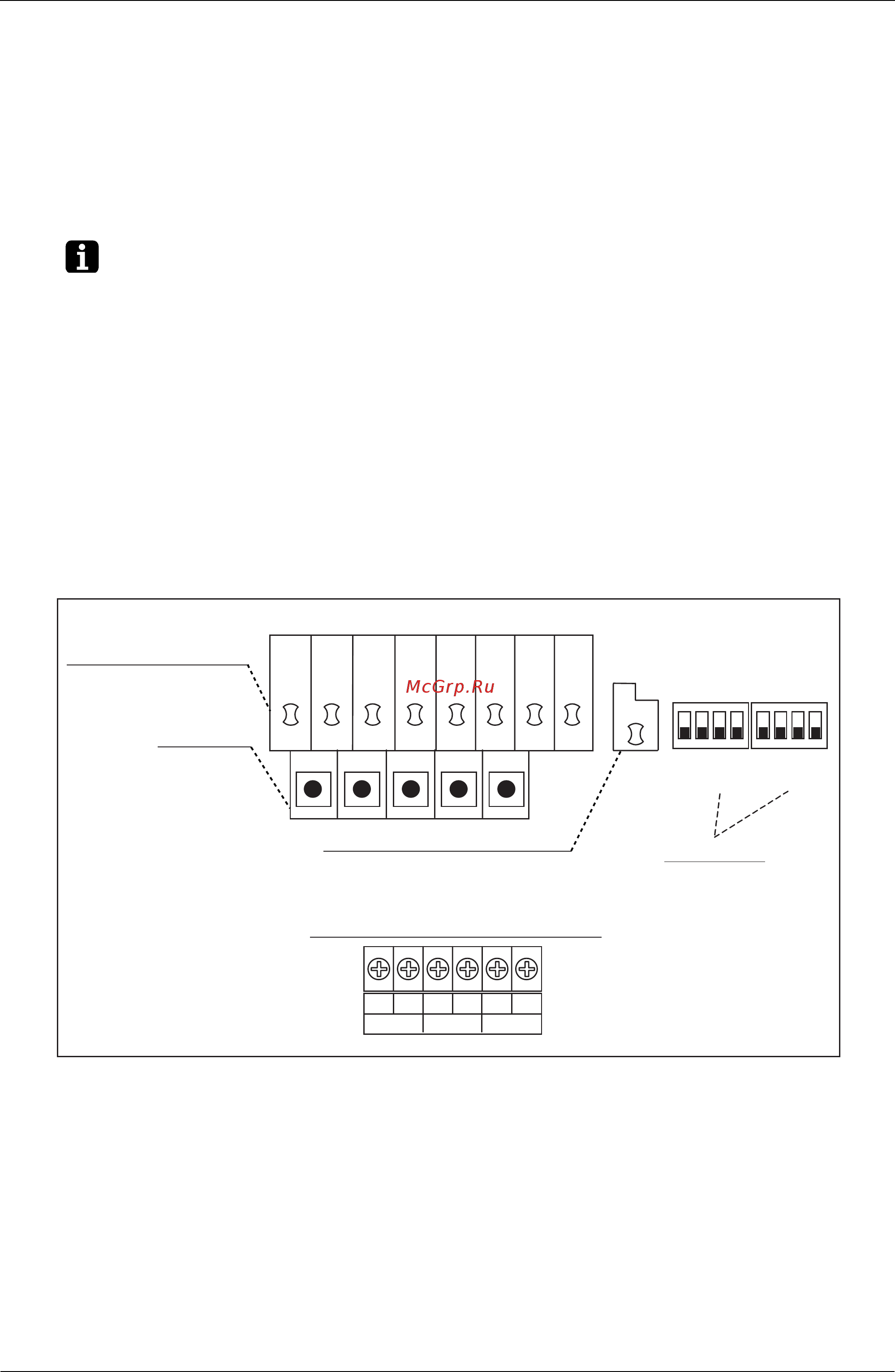

2. Outdoor Unit PCB Layout
Outdoor unit PCB
(2) Set mode display (LED)
(3) BS button
(1) Micro-computer normal monitor
(4) DIP switch
H1P H2P H3P H4P H5P H6P H7P H8P
BS1
MODE
BS2
SET
BS3
RETURN
BS4
TEST
BS5
RESET
HAP
1234 1234
DS1 DS2
Connection terminal for transmission use
F1 F2 F1 F2 Q1 Q2
Indoor -
Outdoor
Outdoor -
Outdoor
Multi outdoor
(1) Micro-computer normal monitor
This monitor blinks while in normal operation, and turns on or off when an error occurs.
(2) Set mode display (LED)
LEDs display mode according to the setting.
(3) BS button
Used to change mode.
(4) DIP switch
Used to make field settings.
