SiBE311209 Troubleshooting by Indication on the Remote Controller
Service Diagnosis 230
4.14 PCB Defect
Remote
Controller
Display
E1
Applicable
Models
Outdoor Unit: RTSQ8~16PAY1
Function Unit: BTSQ20PY1
Method of Error
Detection
Abnormality is detected under the communication conditions in the hardware section between
the indoor unit and outdoor unit or function unit.
Error Decision
Conditions
When the communication conditions in the hardware section between the indoor unit and the
outdoor unit or the function unit are not normal
Supposed
Causes
Defective outdoor unit PCB (A1P)
Defective function unit PCB (A1P)
Defective connection between the indoor and outdoor unit or function unit

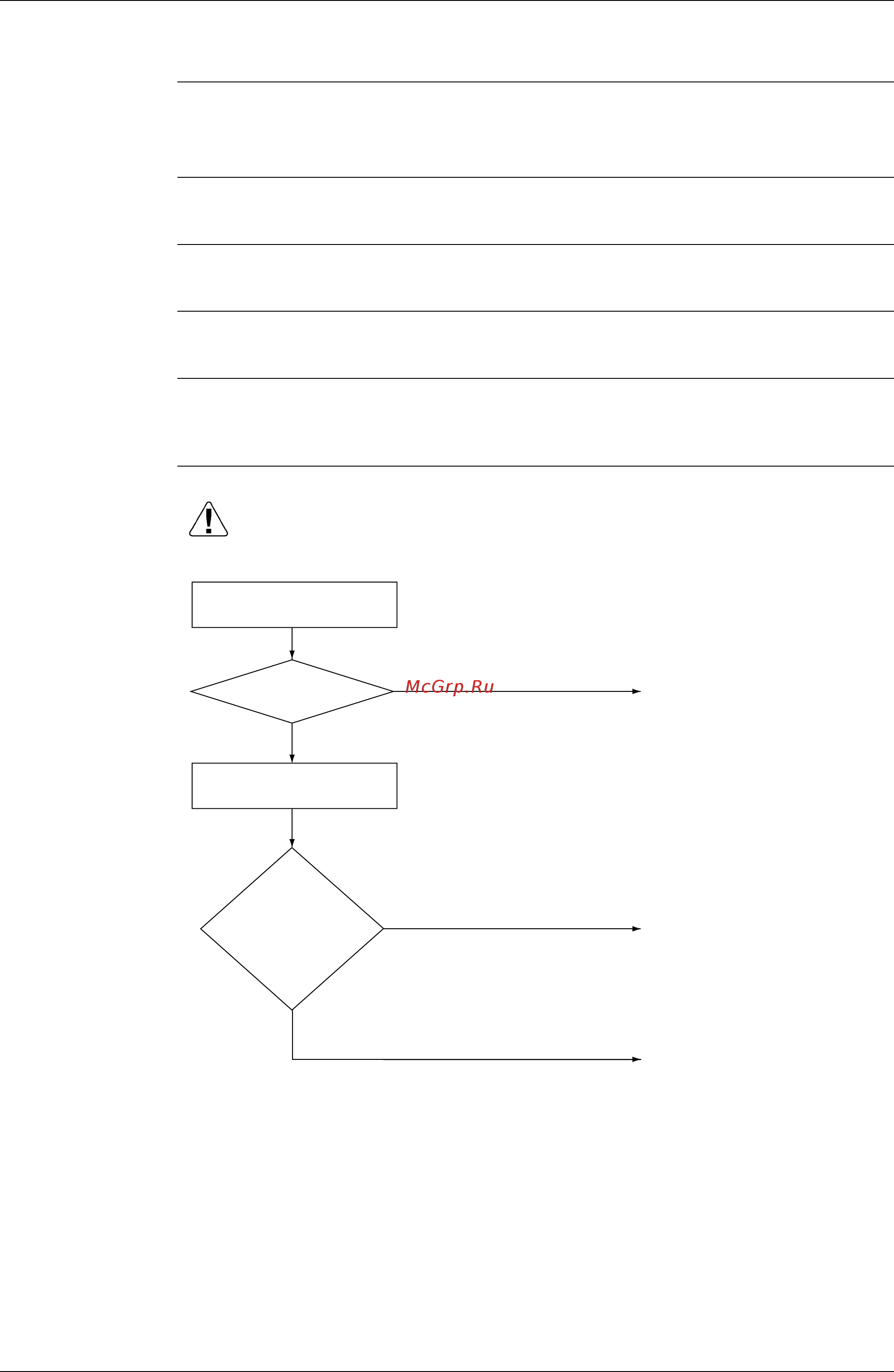

Troubleshooting
Caution
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.
Turn OFF the power once
and turn ON again.
Return to normal?
While in monitor mode, check
the outdoor unit and the
function unit concerned.
YES
NO
Check if indoor /
outdoor or function unit
relay wires of outdoor
unit main PCB is
disconnected.
YES
NO
External factor other than
error (for example, noise
etc.).
Connect the indoor /
outdoor or function unit
relay wires correctly.
Replace the outdoor unit
main PCB (A1P).
