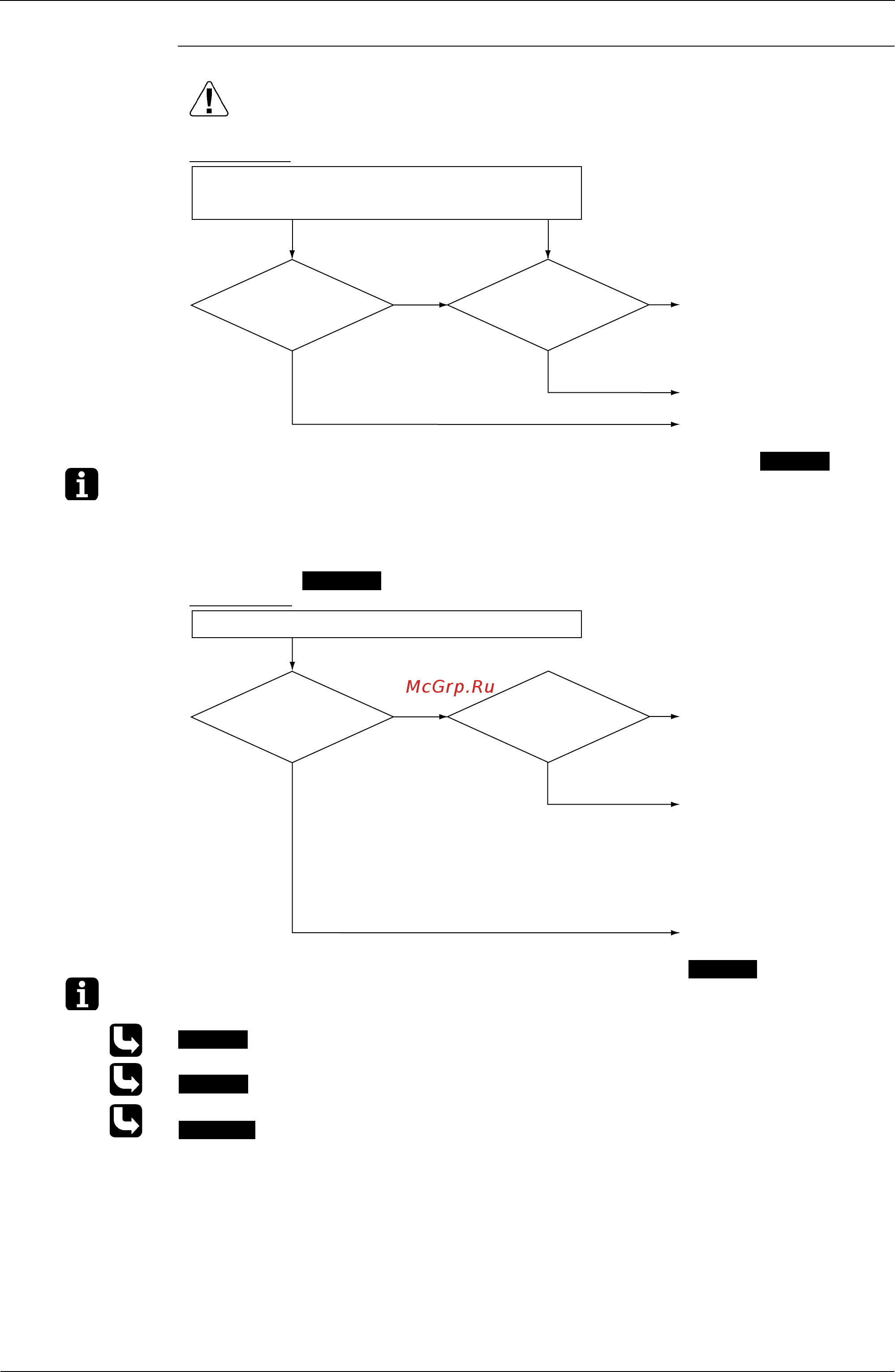

Troubleshooting by Indication on the Remote Controller SiBE311209
277 Service Diagnosis
Troubleshooting
Note:
∗3: Compare the thermistor resistance value with the value on the surface thermometer.
Refer to P.305.
Refer to P.306.
Refer to P.315.
Note:
Caution
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.
NO
Replace the low pressure
sensor.
Check if the low
pressure is
0.1MPa or less.
(∗1)
In cooling mode
(1) Set up a pressure gauge at the service port on the low
pressure side.
(2)
Reset the operation using the remote controller then restart.
Check if the
property of low
pressure sensor is
normal. (∗2)
NO
YES
YES
Replace the outdoor unit
main PCB (A1P).
Remove the factor of
decreasing low pressure by
referring to .
CHECK 2
∗1: Check the low pressure value by using pressure gauge in operation.
∗2: Compare the actual measurement value by pressure sensor with the
value by the pressure gauge.
(To gain actual measurement value by pressure sensor, measure the
voltage at the connector [between (2)-(3)] and then convert the value
into pressure .)
CHECK 12
In heating mode
Reset the operation using the remote controller then restart.
NO
Replace the thermistor.
Check if the temperature
difference between the suction
pipe and the heat exchanger is
20 °C or more.
Check if the property of suction
pipe thermistor (A7T) and heat
exchanger thermistor (R4T) are
normal. (*3)
NO
YES
Replace the outdoor unit
main PCB.
Remove the factor of
superheating by referring to
.
CHECK 3
YES
CHECK 2
CHECK 3
CHECK 12
