Troubleshooting by Indication on the Remote Controller SiBE311209
247 Service Diagnosis
Troubleshooting
Caution
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.

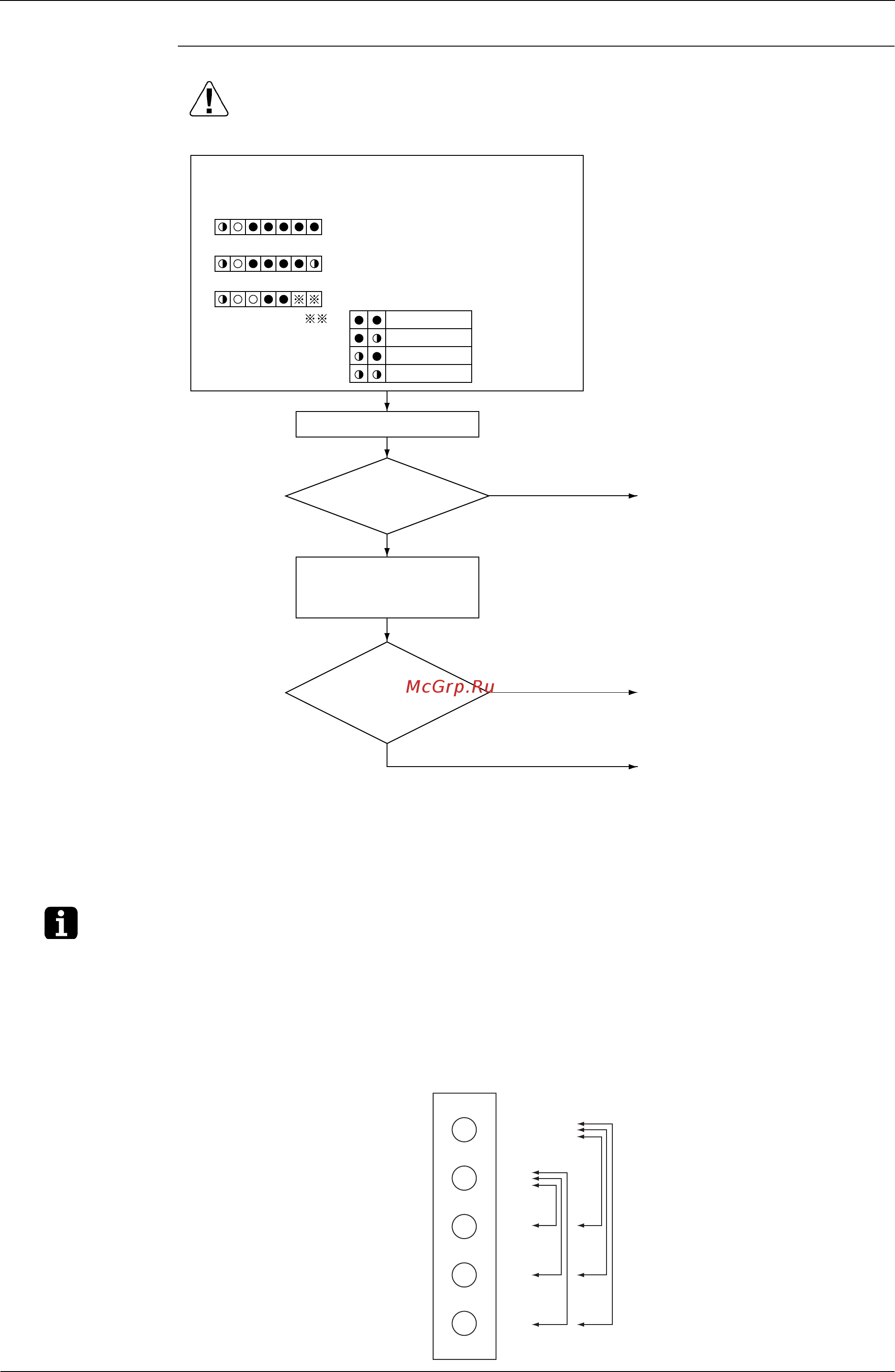

Check the fan motor corresponding to the error code “
H7
” in
the monitor mode.
When Confirmation of error 3 shows as follows:
→ Fan motor 1 (M1F)
When Confirmation of error 3 shows as follows:
→ Fan motor 2 (M2F)
Identify outdoor unit based on Confirmation of error 4.
Explanation for “ ”
Master unit
Slave unit 1
Slave unit 2
System
Cut the power supply OFF.
Is the signal wire connector for
the corresponding fan motor
normal?
NO
YES
Check the connector
of the fan motor (∗1).
Check if the resistance of the fan
motor lead wire between Vcc and
UVW and between GND and UVW
are balanced.
NO
YES
Ensure the correct connection.
Replace the fan motor.
Replace the inverter PCB.
With single systems
z
For fan motor 1: replace the
inverter PCB (A4P)
z
For fan motor 2: replace the fan
inverter PCB (A5P)
With multi systems
z
For fan motor 1: replace the fan
inverter PCB (A4P)
∗1.Check procedure for fan motor connector
(1) Power OFF the fan motor.
(2) Remove the connector (X2A or X4A) on the PCB to
measure the following resistance value.
Judgement criteria: resistance value between each
phase is within ±20%
Connector for signal wires
(X2A or X4A)
X2A
5 Gray
4 Pink
3 Orange
2 Blue
1 Yellow
GND
Vcc
W
V
U
Measure the
resistance
between Vcc-
UVW and
GND-UVW.
Note:
