1.9 Cool / Heat Selector <KRC19-26A> 103
ED721208 Adaptor
4
1.9 Cool / Heat Selector <KRC19-26A>
This remote controller has a switch to enable selection of a heating or cooling operation for each outdoor unit or system.
The controller can also be used to switch to the fan operation mode, for example, during moderate weather season.
Basically, this remote controller is not necessary for the Heat Pump VRV System and the Cooling Only VRV System.
When the BS unit that automatically selects either cooling or heating operation mode is used in the manual mode, this
remote controller can be connected to the BS unit.

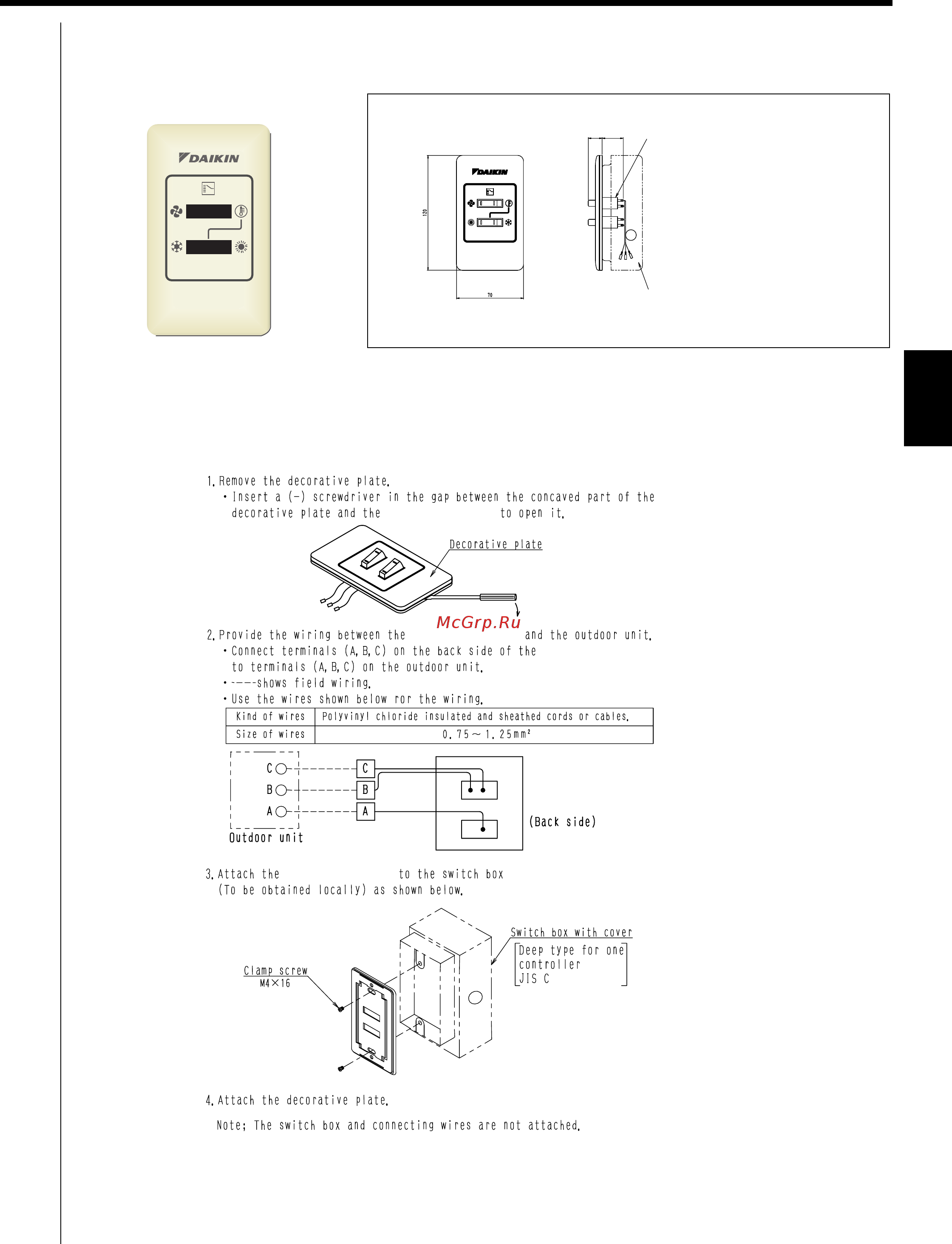

1.9.1 Installation Point
Dimensions
Unit (mm)
C: 3D032519A
SWITCH BOX WITH COVER (NOTE1)
DEEP TYPE FOR ONE CONTROLLER JISC8336
NOTE) 1. THE SWITCH BOX IS NOT ATTACHED.
COOL/HEAT SELECTOR
14.5
22
C: 3P077945A
8340
Cool / Heat selector
Cool / Heat selector
Cool / Heat selector
Cool / Heat selector
Cool / Heat selector
