82 1.5 Central Control Adaptor Kit <DTA107A55>
Adaptor ED721208

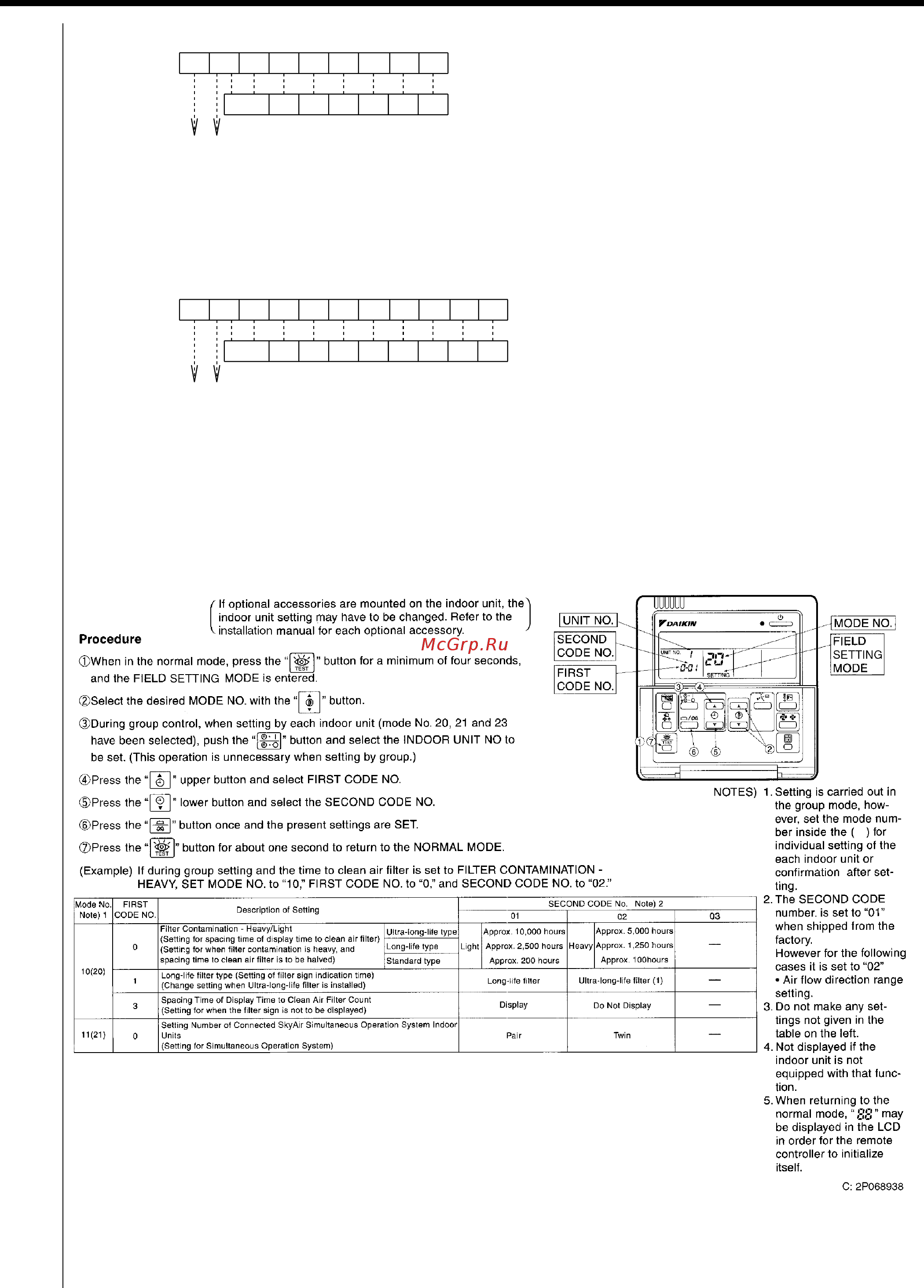

1.5.5 Field Setting
See below for connecting the terminal "M3". (The Output of alarm signal)
In case of Y1, connect the wiring between the terminal "M1" and the terminal "6" of K2R (magnetic relay).
Connect the wiring between the terminal "M3" and the terminal "4" of K2R (magnetic relay).
In case of Y19, connect the wiring between the terminal "M3" and the terminal "8" of K4R (magnetic relay).
In case of TAL and YAL, connect the wiring between the terminal "M1" and the terminal "6" of K14R (magnetic relay).
Connect the wiring between the terminal "M3" and the terminal "4" of K14R (magnetic relay).
Connect the wiring between the box of this kit and the
EL. COMPO. BOX ASSY of the air conditioner.
[Refer to the wiring diagram of the air conditioner.]
In case of UATY15~21K
DTA107A55 M11
P13
M4 M13
P11P7 P8
M1M3 M10
P17
M7 M5
P2
M2
P6 P1
M12
P15
M9
In case of UATY08~12K
DTA107A55 M9M4 M2
P17
M1
P13P10
M3
P2
M5 M12M7
P1P11
M10
P6
Connect the wiring between the box of this kit and the
EL. COMPO. BOX ASSY of the air conditioner.
[Refer to the wiring diagram of the air conditioner.]
See below for connecting the terminal "M3". (The Output of alarm signal)
In case of Y1, connect the wiring between the terminal "M1" and the terminal "5" of K2R (magnetic relay).
Connect the wiring between the terminal "M3" and the terminal "3" of K2R (magnetic relay).
In case of Y19, connect the wiring between the terminal "M3" and the terminal "8" of K4R (magnetic relay).
In case of TAL and YAL, use the attached wire harness and change from the wire to it.
The wire is connected between K1R(5), K1R(7), K2R(7), and K3R(5). [ ( ) is shown the terminal. ]
Connect the wiring between the terminal "M3" and the solderless splices butt "M3" of the wire assy.
2P042158A
