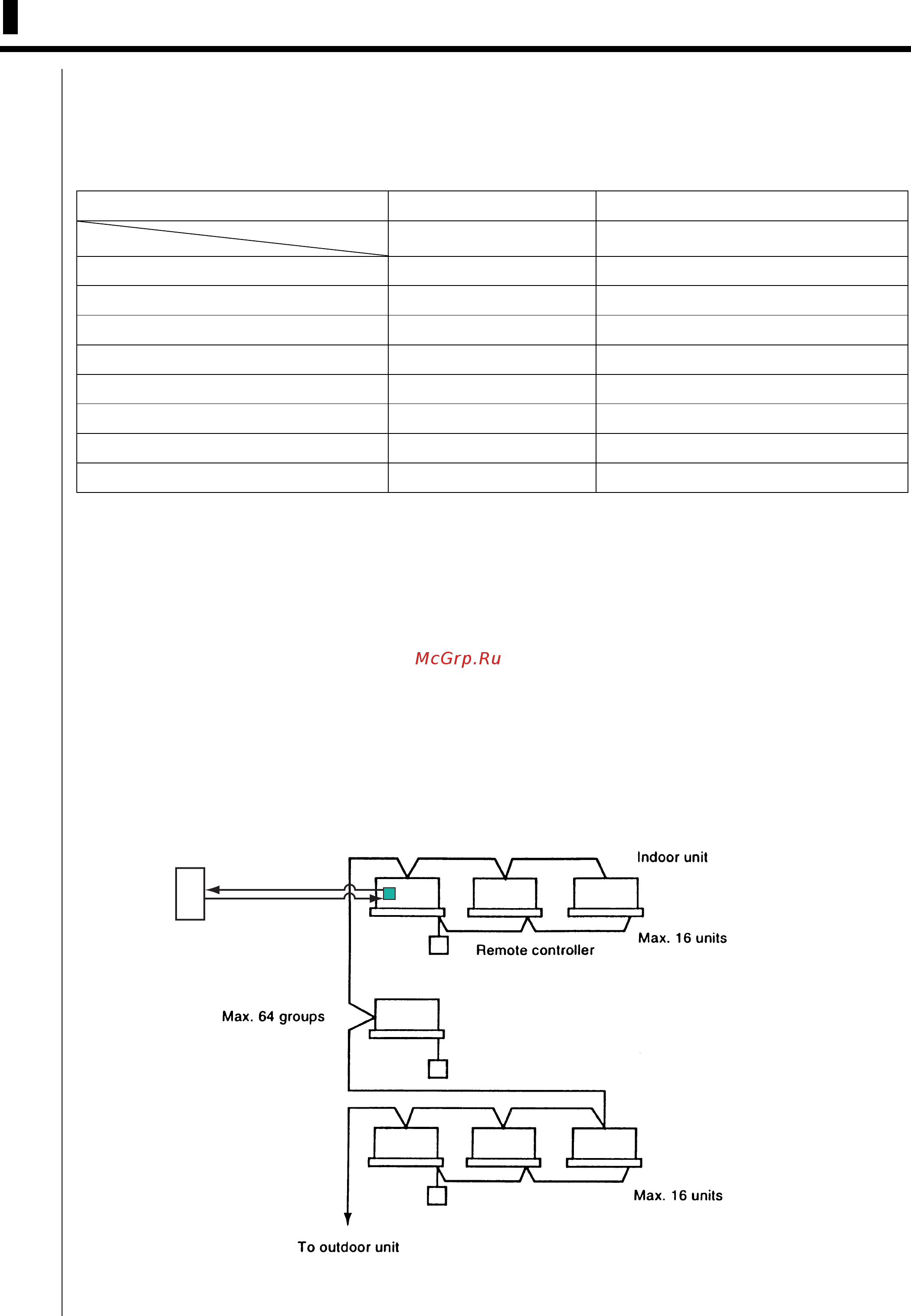

52 1.1 Wiring Adaptor for Electrical Appendices (1) <KRP2A61 / KRP2A62 / KRP2A53>
Adaptor ED721208
1. Adaptor for Air-conditioning System
1.1 Wiring Adaptor for Electrical Appendices (1) <KRP2A61 / KRP2A62 / KRP2A53>
1.1.1 Function
The KRP2A61/62/53 enables operation by remote control (ON/OFF control, temperature setting, operation display, error
display). With it, the following system can be built. Note however that the adaptor cannot be used with other centralized
control equipment.
Zone Control
This adaptor is connected to the centralized line, and “all the air conditioners connected to the central control lines (F1,
F2) are under unified control”.
(Unified control of a max. 64 groups of a max. 16 indoor units each. But, the max. indoor units are 128.)
This system requires the following parts.
Wiring Adaptor for Electrical Appendices (1)
... KRP2A61 or KRP2A62 or KRP2A53
Remote controller switches (For control)
(Ex.) Zone control for 8 units of FXFQ63PVE (control groups of 4, 3 and 1)
Note:
1. Individual indoor units connected to the centralized line cannot be displayed individually on the BMS.
C: 1PA63641J
Type BRC1C62 KRP2A61/62/53
Group/Zone
Item
One Group Unified control for all Zone
ON/OFF Possible Possible
Temp. setting Possible Possible
Air flow rate setting Possible Impossible
Air flow direction setting Possible Impossible
Timer setting twice a day Possible Impossible
Mode setting Possible Impossible
Filter sign reset Possible Impossible
Inspection/Test operation Possible Operation & Error display only by lamps
...BRC1C62
BRC2C51
BRC3A61
Per group
KRP2A62×1 kit
BRC1C62×3 kits
1 set required for each group.
Output for display
Control input
BMS
F1, F2
F1, F2 F1, F2
F1, F2
Adaptor
F1, F2
F1, F2 F1, F2
