28 4.2 Connection of Devices other than VRV
Fundamental of DIII-NET ED721208
4.2 Connection of Devices other than VRV
• You can connect adaptors and other devices (SkyAir adaptor, RA adaptor, Di/Dio units, etc.), which are not VRV, to
either indoor-outdoor connection or outdoor-outdoor connection.
• You cannot connect a chiller (which accommodates DIII-NET) to the same DIII-NET to which VRV, SkyAir, and RA
are connected.
- If you connect a chiller which accommodates DIII-NET to intelligent Manager III, divide the DIII-NET for VRV use
and for the chiller.

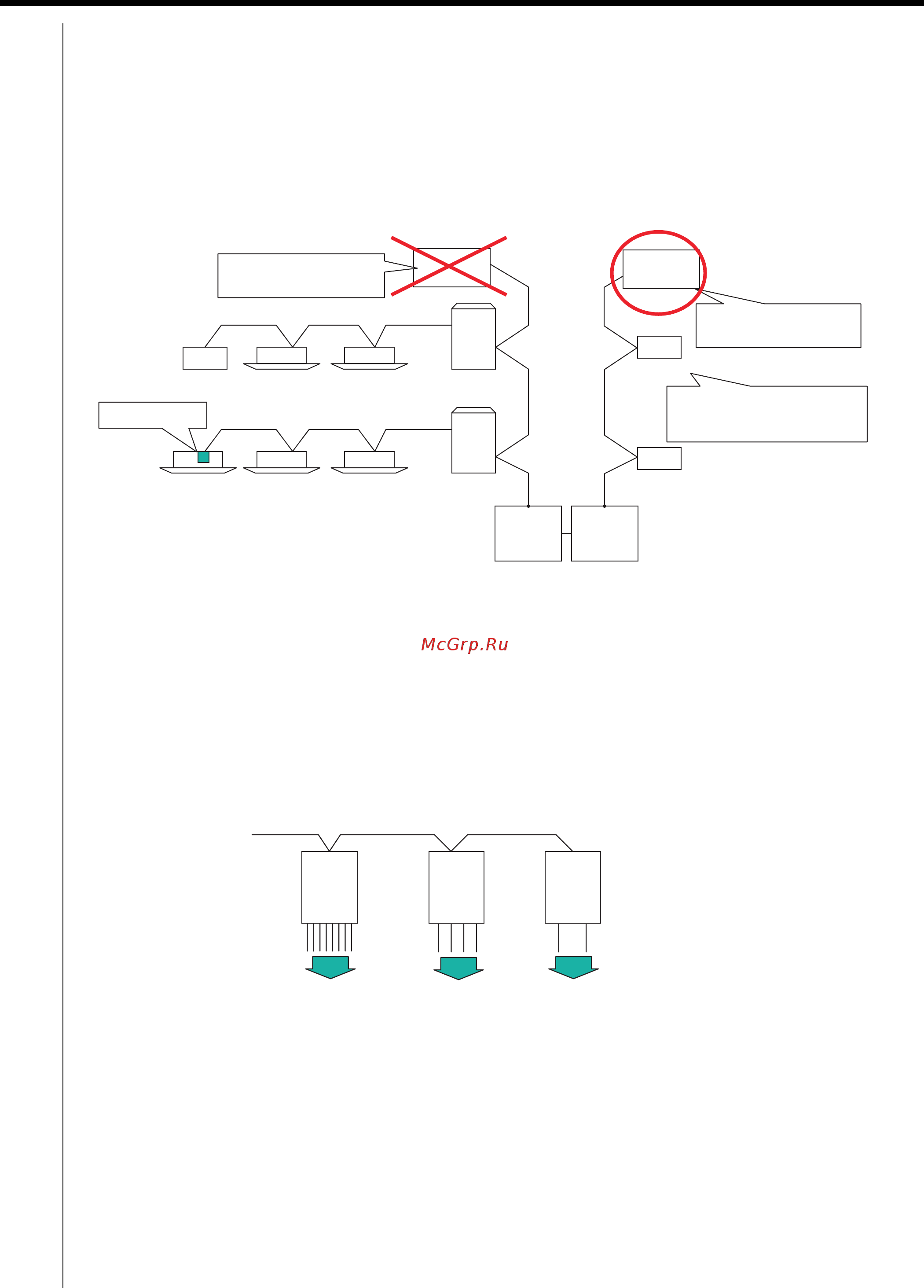

[Example]
• The maximum number of adaptors, except VRV indoor units, to be connected is 64 groups including VRV indoor
untis.
- One air-conditioner connecting adaptor (SkyAir adaptor, etc.) is counted as one group.
- One Di unit is counted as 8 groups.
- One Dio unit is counted as 4 groups.
- When the output of Dio unit is set to an instant contact point, one unit is counted as 2 groups.
* Regarding Di/Dio units, if you specify the number of groups to be connected to each unit, you can reduce the
number of groups connected to one unit.
Chiller
Chiller
You cannot connect a chiller
to the same DIII-NET.
Dio unit
Dio unit
Connect a chiller to
another DIII-NET.
You can connect Di/Dio units
to the same DIII-NET to which
a chiller is connected.
SkyAir Indoor unit
Di unit
iTM
SkyAir adaptor
Plus
adaptor
Total 14 groups
with 3 units
Di unit
Dio unit
(Regular contact
point setting)
Dio unit
(Instant contact
point setting)
Counted as 8 groups Counted as 4 groups Counted as 2 groups
