64 1.2 Wiring Adaptor for Electrical Appendices (2) <KRP4AA51 / KRP4AA52 / KRP4AA53 / KRP4A54>
Adaptor ED721208

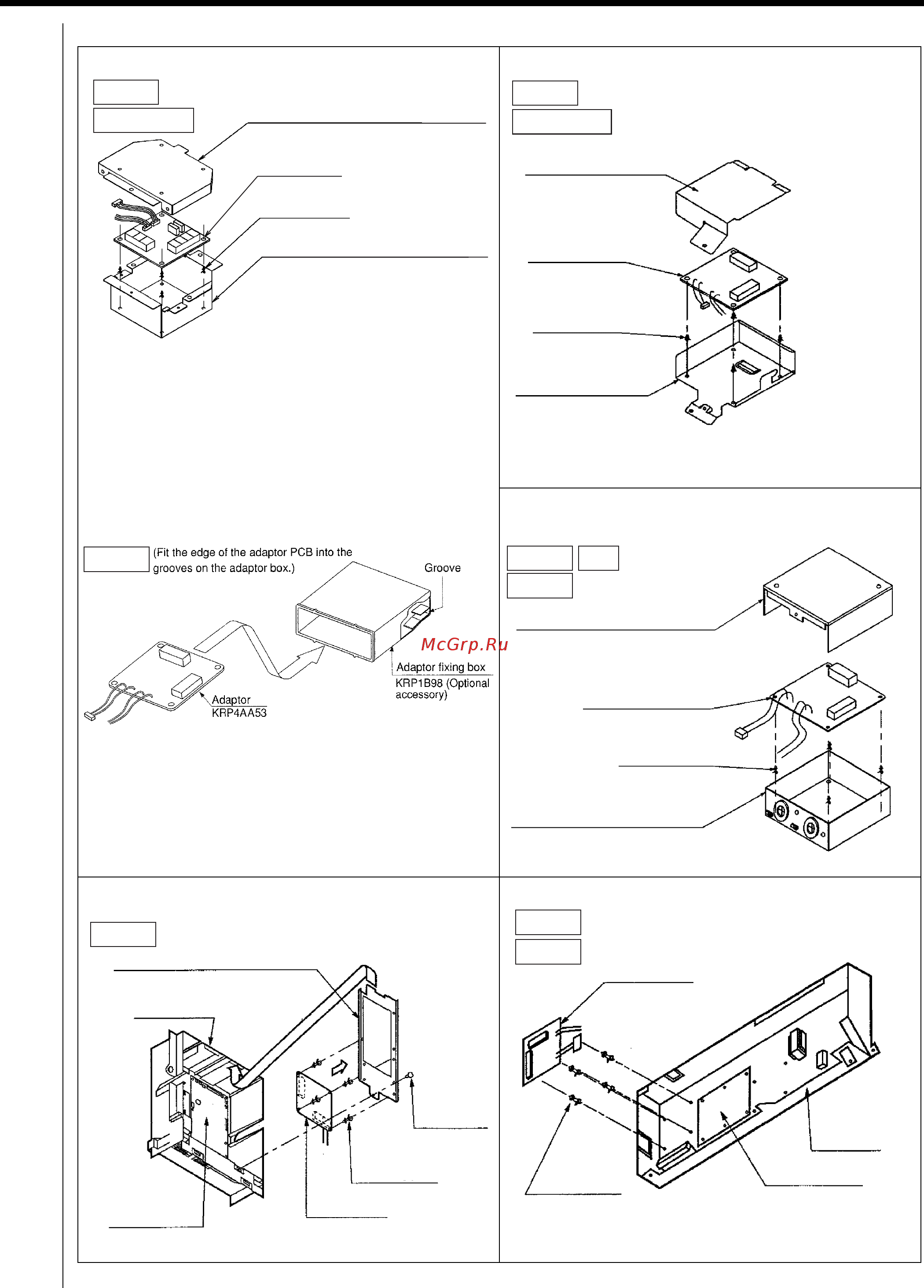

1.2.3 Installation
Ceiling Mounted Cassette Type Ceiling Suspended Type
Ceiling Mounted Cassette Type (Compact Multi Flow)
Slim Ceiling Mounted Duct Type
Ceiling Mounted Cassette Type (Double Flow) Ceiling Mounted Cassette Corner Type
C: 1PA59889L
FXF(Q)
FCQ(N)-K(A)
Lid of installation box
FXF··································KRP1DA98 (option)
FXFQ-P, FCQ(N)-K(A)···KRP1H98 (option)
FXF···································KRP1DA98 (option)
Adaptor
(KRP4AA53)
PCB support
Installation box for adaptor PCB
Note:
Installation box for adaptor PCB is required to install the adaptor.
FXFQ-P, FCQ(N)-K(A)···KRP1H98 (option)
FXH(Q)
FHQ • FH(Y)
Lid of installation box
KRP1CA93
(Optional accessory)
KRP1CA93
(Optional accessory)
Adaptor
(KRP4AA52)
PCB support
Installation box
for adaptor PCB
Note:
Installation box for adaptor PCB is required to install the adaptor.
FX(Y)C
FXD(Q)
FXZQ FFQ
Lid of installation box
KRP1BA101 (Optional accessory)
KRP1BA101 (Optional accessory)
Adaptor
FXZQ, FFQ···KRP4AA53
FXD(Q)·········KRP4A54
( )
PCB support
Installation box for adaptor PCB
Note: Installation box for adaptor PCB is required to install the adaptor.
FXC(Q)
Installation box for adaptor PCB
(Option KRP1B96)
Control box
Indoor unit PCB
PCB support
Adaptor
(KRP4AA51)
Installation
screw
Note: A separate plate is needed to install the adaptor PCB.
Adaptor
(KRP4AA51)
PCB support
Indoor unit PCB
Control box
FH(Y)K
FXK(Q)
