248
Commissioning Manual ED721208
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
43
4-6 History Mgmt. (Delete)
Deletes history records.

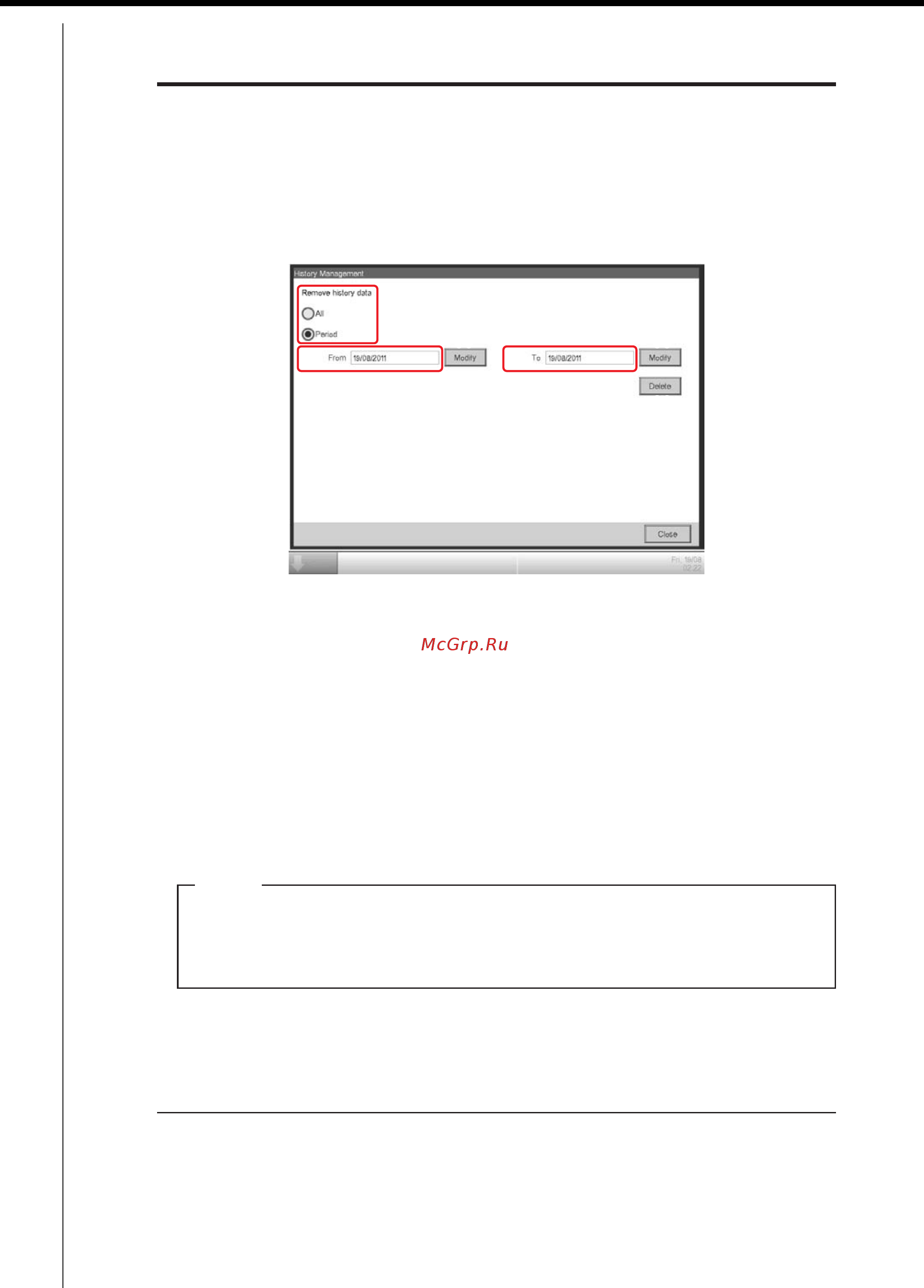

1. Log into SE Mode from the Menu List screen and display the Service Settings tab (see page 7).
Touch the History Mgmt. button on the Service Settings tab to display the History Management
screen (see page 10).
(1)
(2) (3)
(6)
(5)(4)
2. Using the Remove history data radio button (1), select whether to delete All or a Period.
3. If you selected Period, set up the start date of the period to delete in (2) and the end date in (3).
To set up the start date, touch the Modify button (4) and enter the start date in the Time Input
dialog box that appears. Touch the OK button to commit the start date and close the dialog. The
UVCTVFCVGKUFKURNC[GFKPVJG(TQOƂGNF(2). To set the end date, touch the Modify button (5) and
enter the end date in the Time Input dialog box that appears. Touch the OK button to commit the
GPFFCVGCPFENQUGVJGFKCNQI6JGGPFFCVGKUFKURNC[GFKPVJG6QƂGNF(3).
4. Touching the Delete button (6)FKURNC[UCEQPƂTOCVKQPFKCNQI6QWEJVJG;GUDWVVQPVQFGNGVGVJG
JKUVQT[HQTVJGURGEKƂGFRGTKQF6QWEJVJG%NQUGDWVVQPCPFENQUGVJGUETGGP
If you specified a period to delete, you can cancel deletion halfway but the history data
before cancelling will be deleted. Make sure before executing because the deleted data
cannot be recovered.
NOTE
