ED721208 Commissioning Manual
6
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
48
Scenario 1: Installation to new property
Set up data for the new property in advance.
(2)
Main screen

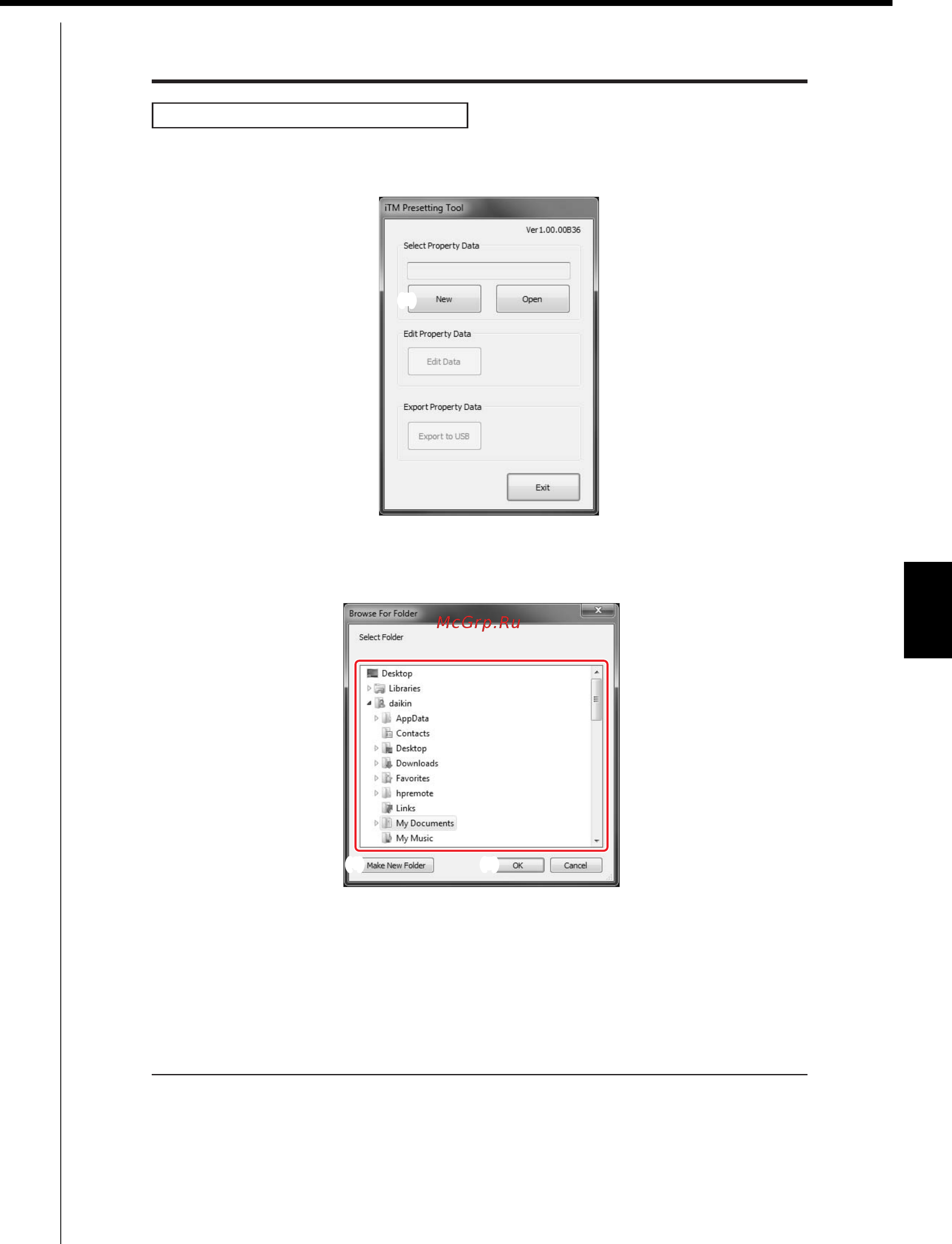

1. Click the New button (2) to display the Create New Folder dialog.
(3)
(4) (5)
Create New Folder dialog
2. Select the location to create the new property’s folder in (3).
Clicking the Make New Folder button (4) creates a new folder directly under the folder selected
in (3).
Clicking the OK button (5) sets up the folder selected in (3)CUPGYHQNFGT#FKCNQIEQPƂTOKPI
whether to delete the data in the folder appears. Click the Yes button to commit and return to the
iTM Pre-engineering tool main screen.
