Daikin RXYQ120PYDN [285/405] Connecting the pc and itm
![Daikin RXYQ24PY1C [285/405] Connecting the pc and itm](/views2/1708729/page285/bg11d.png)
281
ED721208 Commissioning Manual
6
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
91

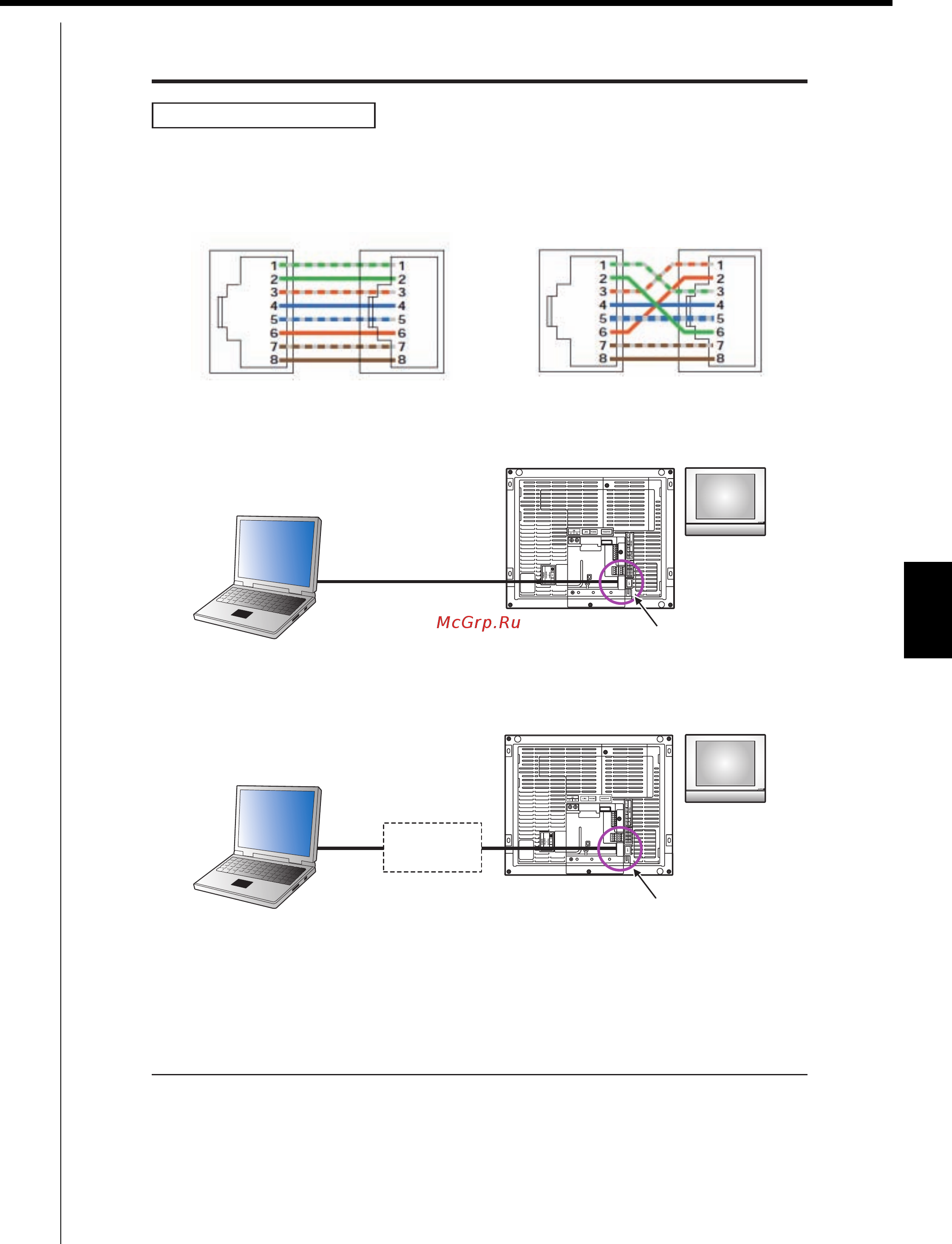

Connecting the PC and iTM
Connect the PC and iTM unit into a network using an Ethernet cable.
Ethernet cables use for connecting networks come in two types: straight and cross. Connect the PC
and iTM unit by referring to the connection diagrams below.
Straight cable connection diagram Cross cable connection diagram
When connecting the PC and iTM directly:
Use a 100Base-TX or higher Ethernet cross cable.
Ethernet (Cross cable)
iTM
PC
ETHERNET
100BASE-TX
When connecting the PC and iTM via a hub:
Use a 100Base-TX or higher Ethernet straight cable.
Ethernet
(Straight cable)
iTM
PC
Hub
ETHERNET
100BASE-TX
