317
ED721208 Commissioning Manual
6
Commissioning Manual (Layout Screen Creation Tool) EM11A024
DCM601A51 intelligent Touch Manager
6
During an edit session, you can undo the previous action by clicking the Undo button (5). You
can undo up to 10 most recent actions since the last save, screen change, or delete operation.
Certain actions cannot be undone.
NOTE
Setting Up the Screen
The screen list (6) in the operation pane (3) provides a list of registered screens. As you select a
screen from this list, a preview of the selected screen appears in the display pane (4). You can
assign up to 60 screens to a single property.

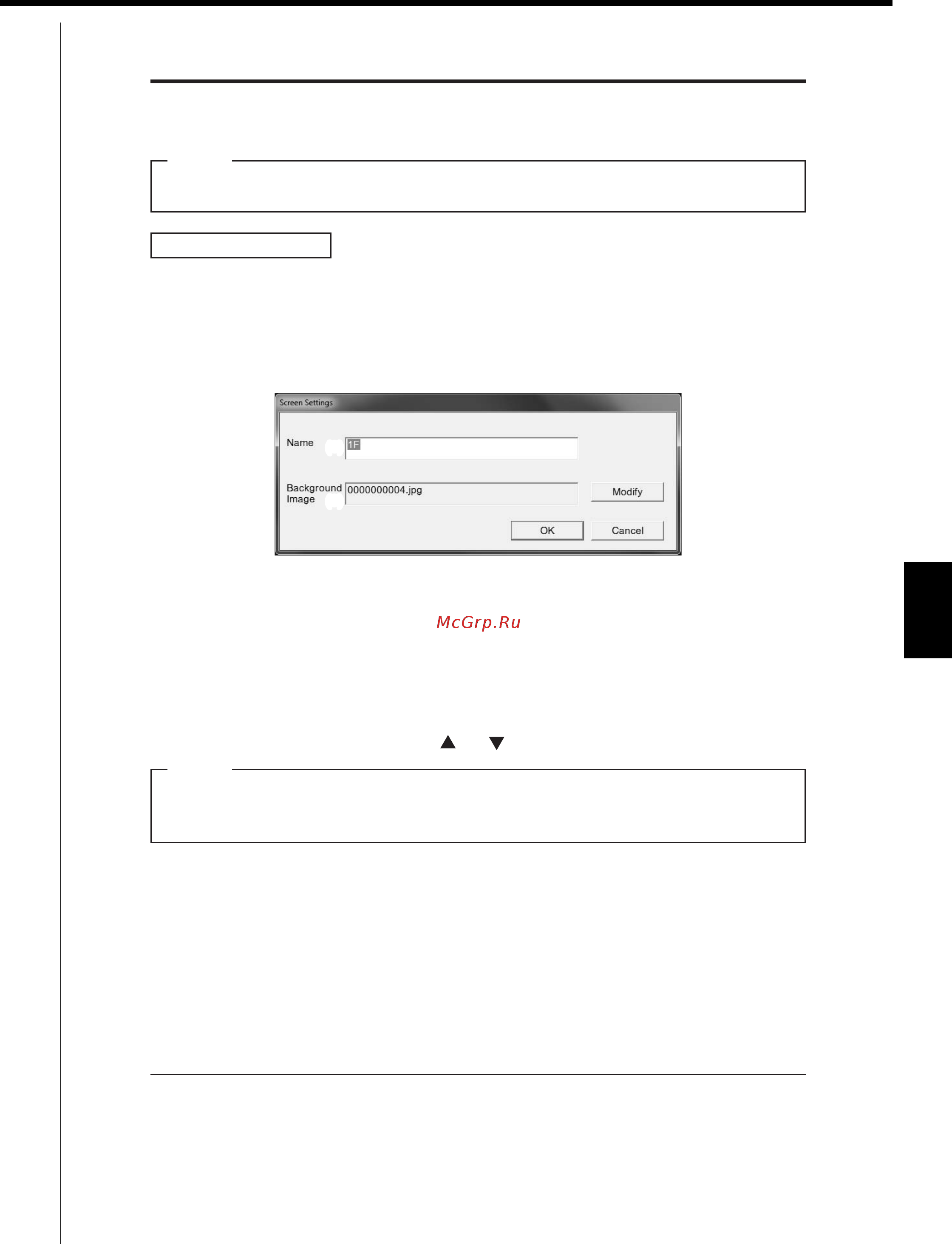

1. Click the Add button (7) to bring up the Screen Settings dialog box.
(8)
(9)
The text box (8) allows you to enter the screen name by accepting up to 20 characters.
The text box (9) allows you to specify the background image. To change the image to use as the
background, click the Modify button. As the background image, you can use any JPEG image
ƂNGWRVQ-$KPUK\GCPFEQPVCKPKPICRKZGN³RKZGNVQRKZGN³RKZGNKOCIG
Click the OK button to save the changes and return to the Edit Screen window.
The background image you have just added appears at the bottom of the list.
You can reorder the screen list using the
and buttons.
The file name of the imported background image may be different from the original name
because it is automatically converted for management in the tool when the layout data is saved.
NOTE
