ED721208 Commissioning Manual
6
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
97
Setting up the IP address (Windows Vista Business)

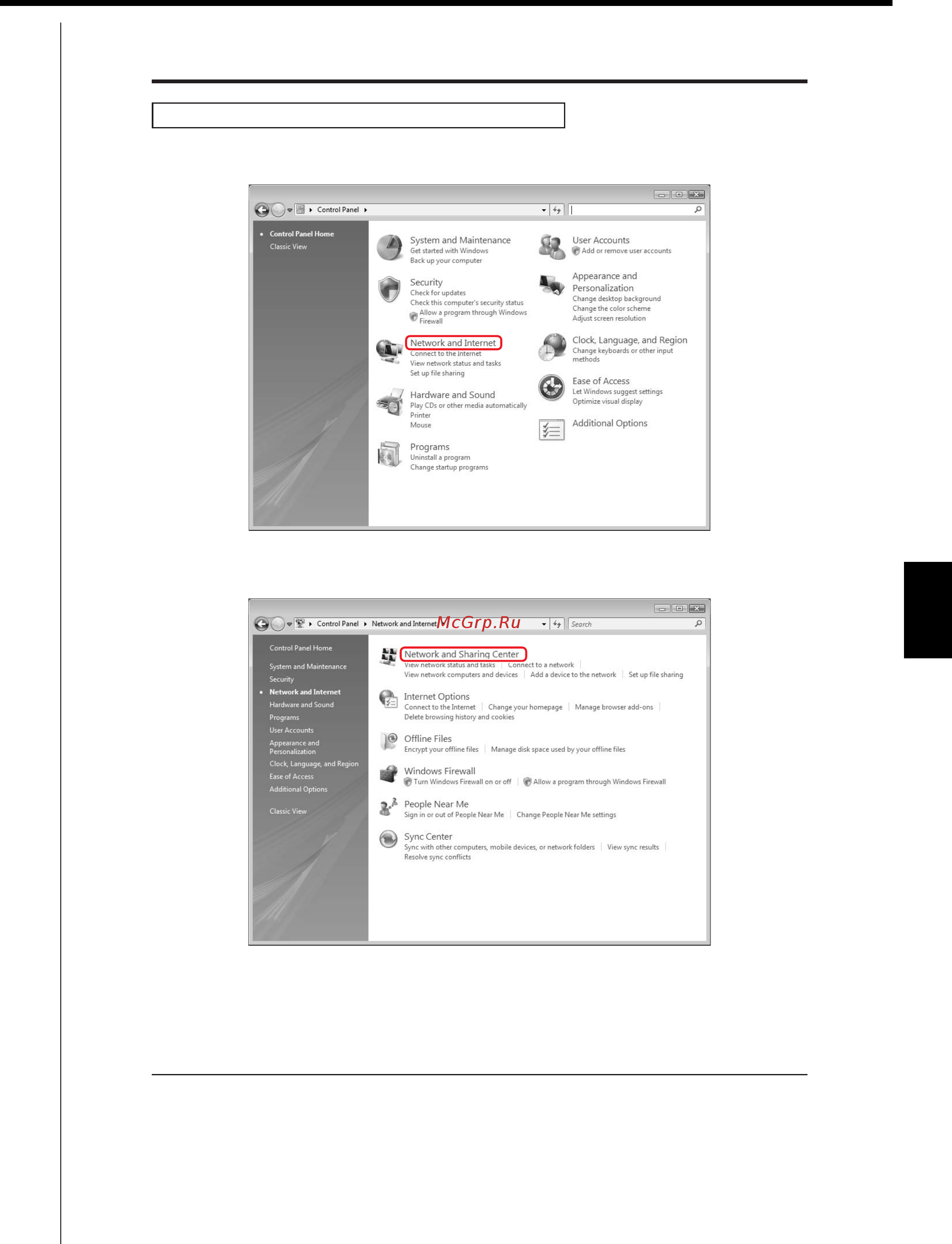

1. Select [Start]
ĺ
[Control Panel].
2. Click [Network and Internet].
3. Click [Network and Sharing Center].
