283
ED721208 Commissioning Manual
6
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
93

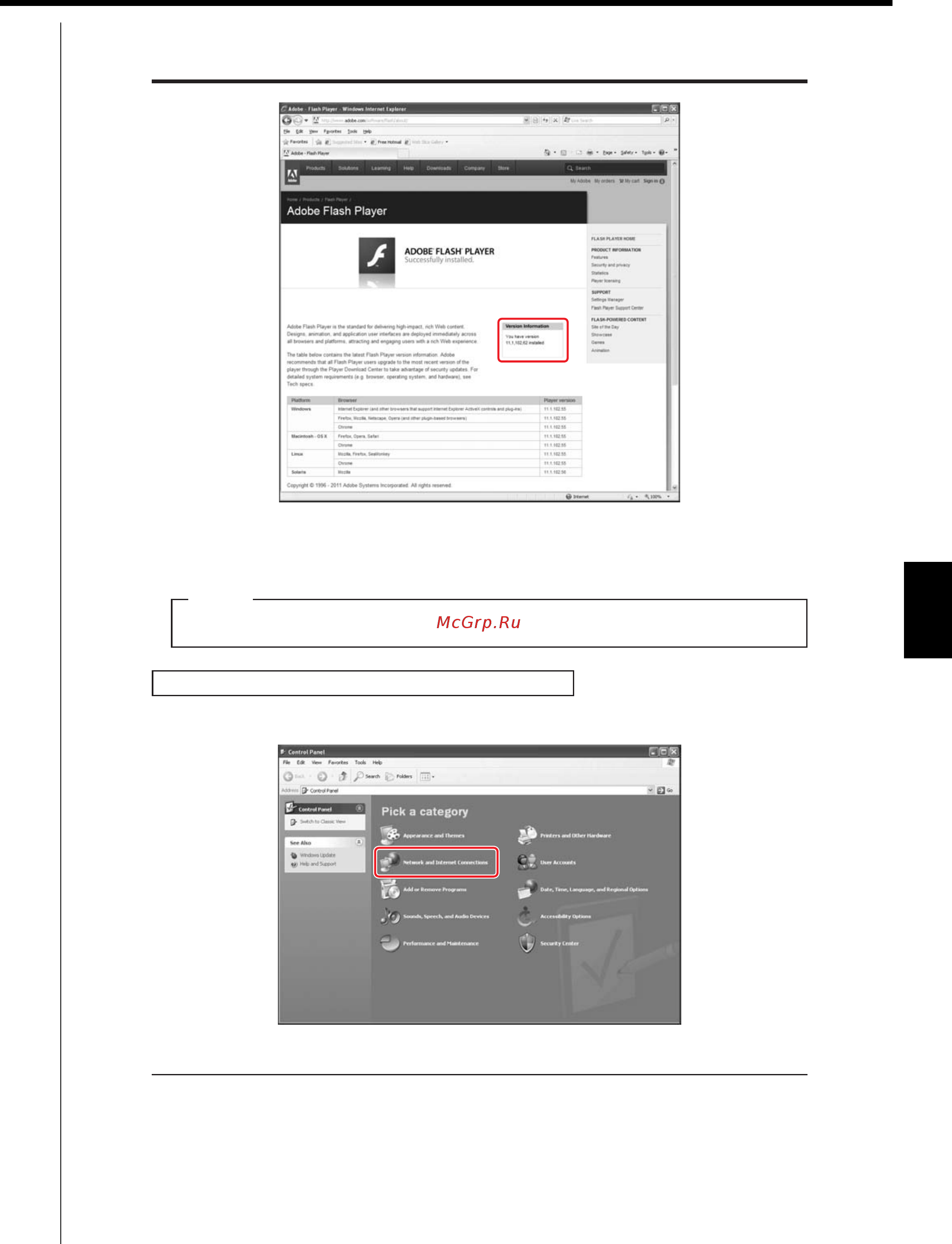

Check that the version is 11.1.xxx.xx. (The xxx portion can be any)
Operation cannot be guaranteed if both the Web browser and Flash Player are not of the
URGEKƂGFXGTUKQP$GUWTGVQWUGVJGXGTUKQPFGUETKDGFKPVJGVCDNG
Necessary software can be downloaded from Microsoft, Adobe, and other sites for free.
NOTE
Setting up the IP address (Windows XP Professional)
1. Select [Start]
ĺ
[Control Panel].
2. Click [Network and Internet Connections].
