1.2 Wiring Adaptor for Electrical Appendices (2) <KRP4AA51 / KRP4AA52 / KRP4AA53 / KRP4A54> 67
ED721208 Adaptor
4

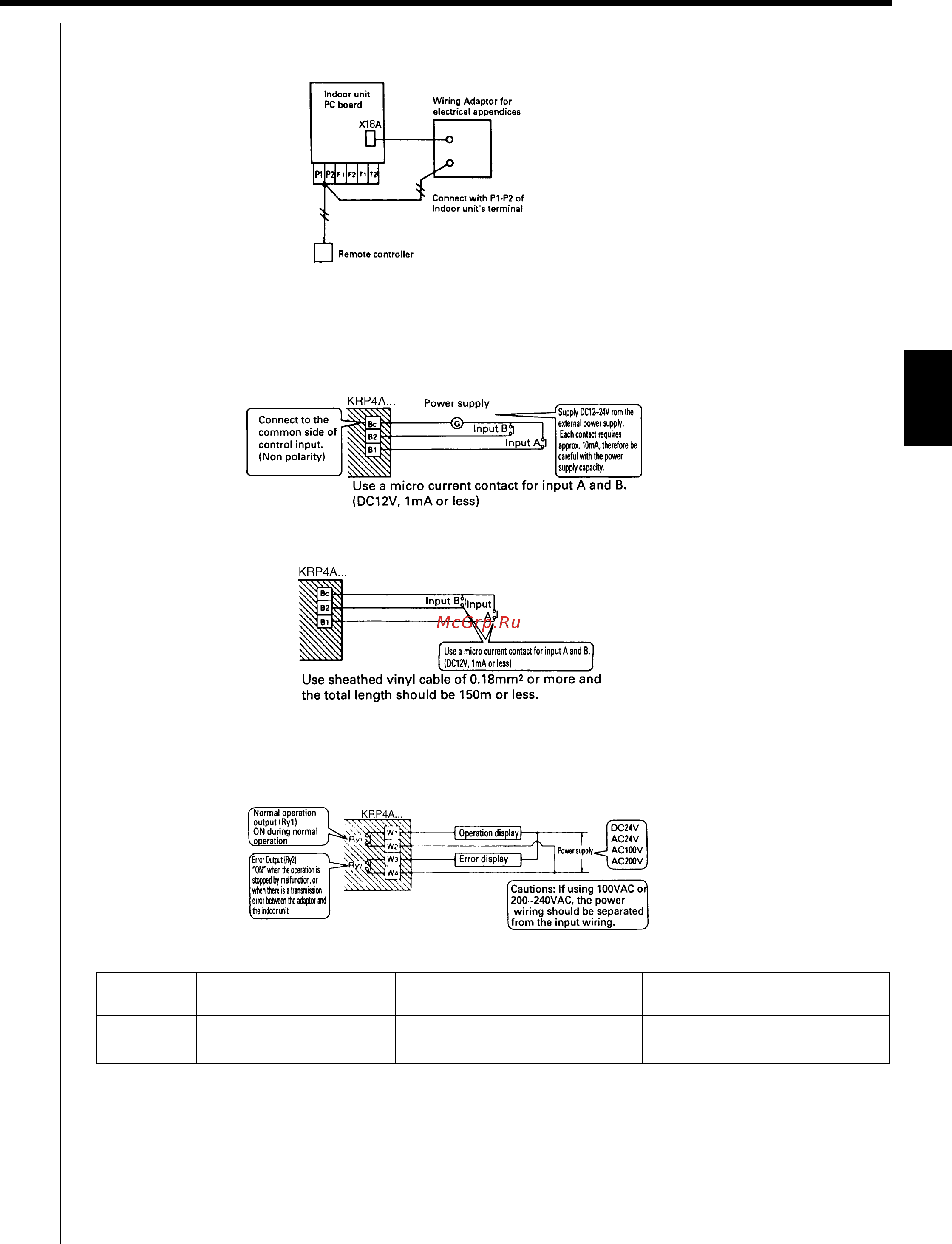

1.2.4 Electric Wiring Work and Initial Setting
1. Wiring
2. Depending on whether [voltage input] or [non voltage input], connect the wiring as shown below.
Input/Output for External Control
3. Depending on whether [voltage input] or [non voltage input], connect the wiring as shown below.
Input with Voltage.
Set the Voltage/Non voltage changeover switch (SS1) to VOLT.
Input with No Voltage.
Set the Voltage/Non voltage changeover switch (SS1) to NON VOLT.
4. Display Signal Retrieval (Output)
The normal operation output terminals (W1, W2) and error output terminals (W3, W4) are non-voltage output contacts.
(Permissive current is 10mA~3A per contact.)
Output is as given below.
C: 1PA59890F
Output
Both Ry1 and Ry2 is OFF. Only Ry1 is ON. Only Ry2 is ON.
System
Group control OFF All normal operation
At least one unit is stopped due to error
or transmission error between the
adaptor and the indoor unit.
