3. 'PCDNG&KUCDNGFT[QRGTCVKQPOQFGKPDry Operation Mode (2). When enabled, allows you to

set Dry mode from the touch panel, or the Schedule or Interlocking function. Touch the OK

button to commit and close the screen.

4-3 DIII-NET Engineering

Sets up the iTM as “Main” or “Sub” when also installing an upper central controller. Sets Setpoint

Restriction to “Enable” or “Auto” when also installing an upper central controller (such as: Interface

for use in BACnet, Interface for use in LONWORKS).

1. Log into SE Mode from the Menu List screen and display the Service Settings tab (see page 7).

Touch the DIII-NET Engineering button on the Service Settings tab to display the DIII-NET

Engineering screen (see page 10).

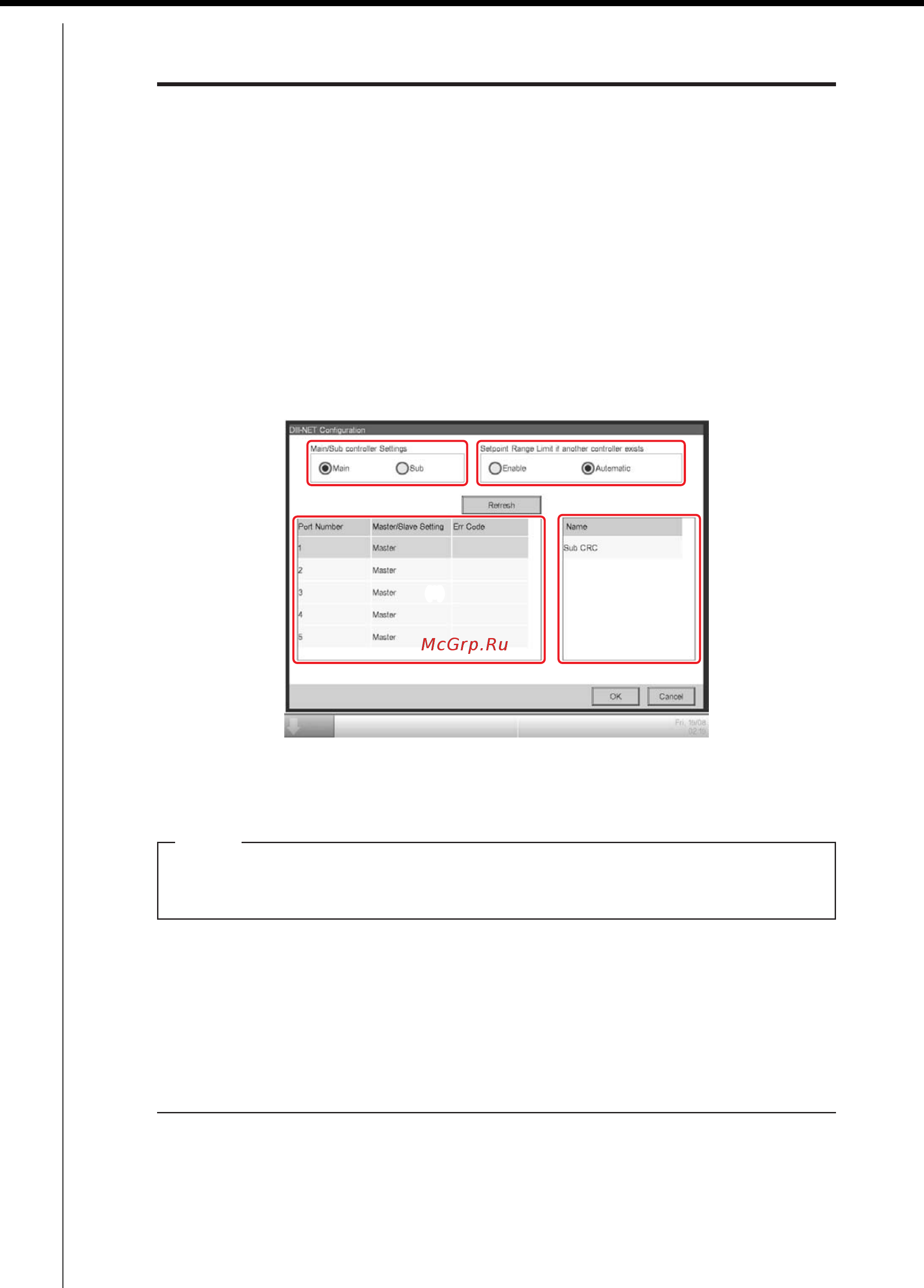

(1) (2)

(3) (4)

(5)

2. Set “Main” or “Sub” using the Main/Sub controller Settings radio button (1). A restart is

PGEGUUCT[CHVGTUYKVEJKPIVJG/CKP5WDEQPVTQNNGT5GVVKPIU

When “Sub” is selected, Setpoint Range Limit if another controller exists (2) is greyed out

and cannot be selected. The setting is “always disabled”.

NOTE

3. If you have set “Main” in step 2, select “Enable” or “Auto” in Setpoint Range Limit if another

controller exists (2).

Enable: The Setpoint Restriction is enabled.

Auto: The Setpoint Restriction is disabled when an upper central unit is present. The Setpoint

Restriction is enabled when an upper central unit is not present.
