1.6 Interface Adaptor for DIII-NET Use (RA) <KRP928B2S> 83
ED721208 Adaptor
4

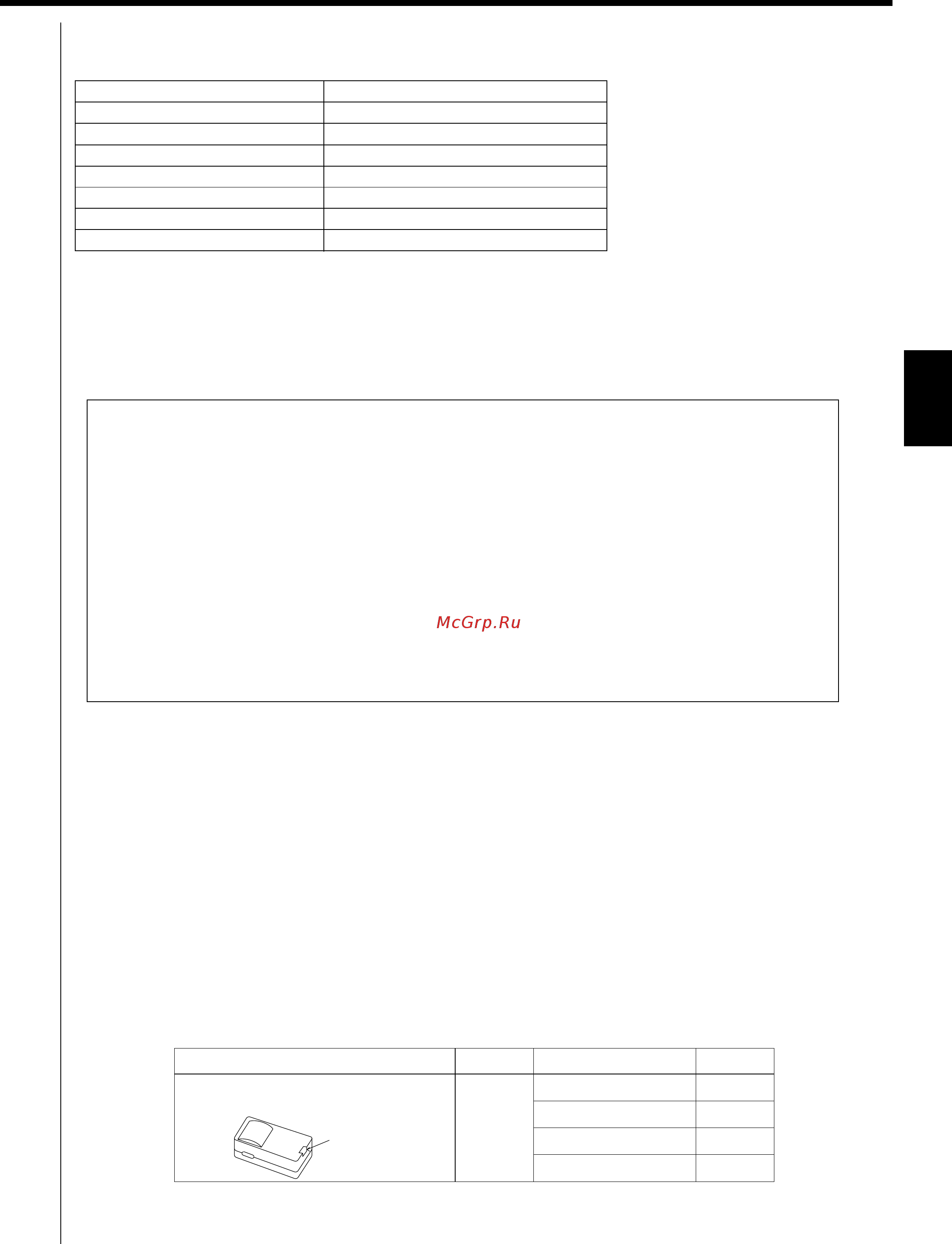

1.6 Interface Adaptor for DIII-NET Use (RA) <KRP928B2S>
1.6.1 Functions
Item KRP928B2S
ON/OFF Possible
Temp. setting Possible
Airflow rate setting Impossible
Airflow direction setting Impossible
Mode setting Possible
Filter sign reset Impossible
Inspection/Test operation Operation display only by lamps
<Overview, Features and Compatible Models>
<Component Parts and Separately-Sold Parts which are Required>
This kit includes the following components. Check to ensure that none of these are missing.
Screw cover
Parts
Kit assy
PCB is in the housing.
Q’ty Q’ty
1
Parts
Connection harness (about 1.6m)
Mounting screws
Binding band
Installation manual
1set
3pcs.
1pc.
1set
This kit is the interface required when connecting the
centralized control equipment
and a Daikin
Room Air Conditioner. Use of the centralized control equipment makes it possible to perform the
following monitoring and operations. It is compatible with room air conditioners which have an
HA connector S21.
1.Run / stop for the centralized control equipment and wired remote controller, operating mode
selection, and temperature can be set.
2.The operating status, any errors, and the content of those errors can be monitored from the
centralized control equipment and wired remote controller.
3.Run / stop for the centralized control equipment and wireless remote controller, operating mode
selection, and the temperature setting can be limited by the centralized control equipment.
4.Zone control can be performed from the centralized control equipment.
5.The unit can remember the operating status of the air conditioner before a power outage and then
start operating in the same status when the power comes back on.
6.Card keys, operating control panels, and other constant / instantaneous connection-compatible
equipment can be connected.
7.The Operating / error signals can be read.
8.HA JEM-A-compatible equipment can be connected.
9.The indoor temperature can be monitored from the intelligent Touch Controller.
Precaution
1.When reading the Operating / error signals, a separate external power supply (DC 12V) is needed.
2.A separate timer power supply (DC 16V) is needed when using the schedule timer independently,
and not in conjunction with other
centralized control equipment
.
3.The range of temperatures that can be set from the
centralized control equipment
is 18°C to 32°C
in cooling and 14°C to 28°C in heating.
4.Fan operation cannot be selected from the
centralized control equipment
or wired remote
controller.
5.Group control (i.e., control of multiple indoor units with a single remote controller) is not available.
6.Monitoring is not available of the thermo. status, compressor operating status, indoor fan operating
status, electric heater, or humidifier operating status.
7.Forced thermo. off, filter sign display and reset, fan direction and speed settings, air conditioning
fee management, energy savings instructions, low-noise instructions, and demand instructions
cannot be made.
