1.5 Central Control Adaptor Kit <DTA107A55> 81
ED721208 Adaptor
4
3. Connection of the terminal
Connect between the air conditioner and DTA107A55 shown below.
M12 Connect the wiring between the box of this kit and the
EL. COMPO. BOX ASSY of the indoor unit.
[Refer to the wiring diagram of the indoor unit.]
M2
3
M1
C
M3 M4
B
M5DTA107A55 M9
A

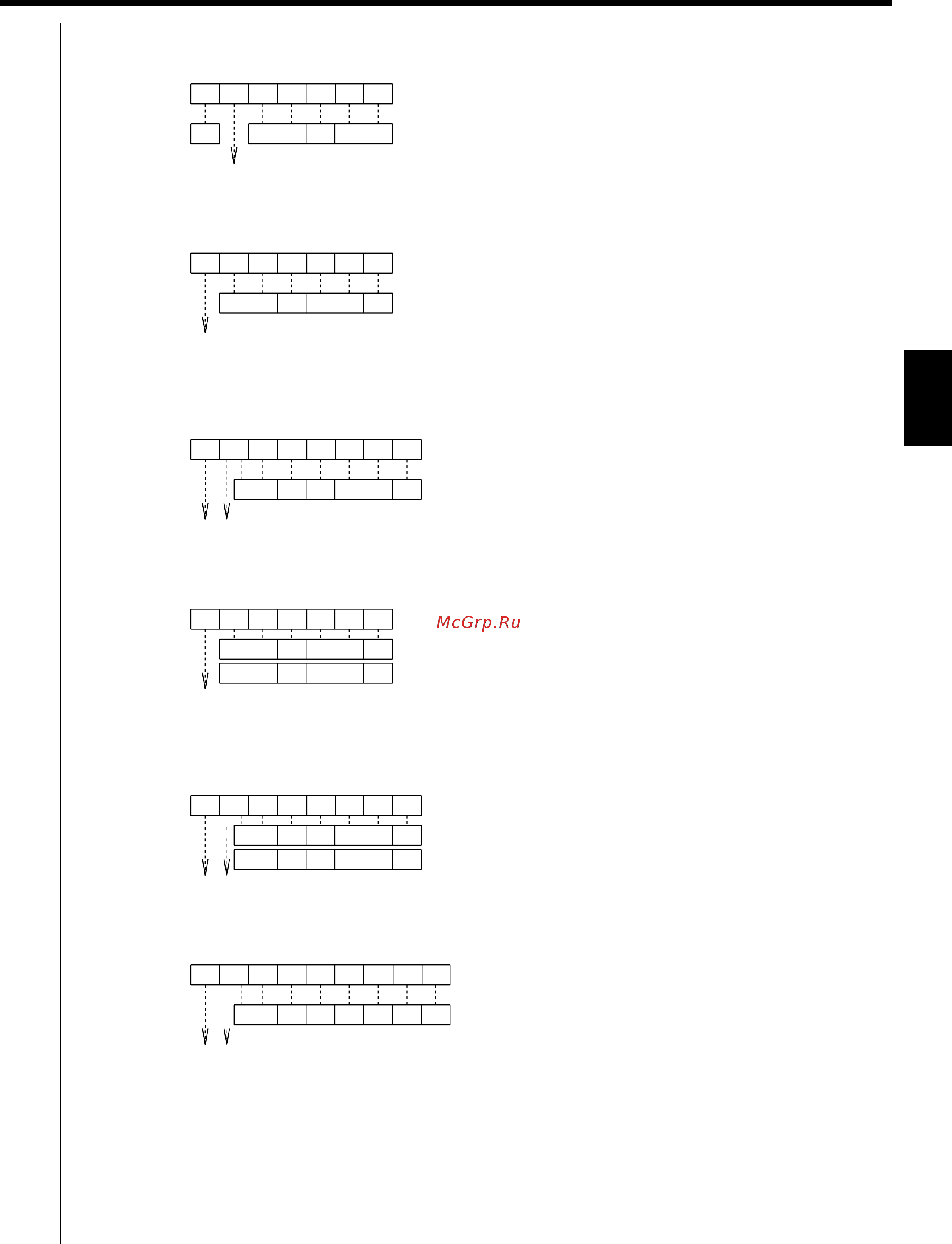

In case of FD03~05K
See below for connecting the terminal "M3". (The Output of alarm signal)
About these models, we can only output the alarm signal of indoor fan motor.
Connect the wiring between the terminal "M3" and the terminal "96" of magnetic contactor of indoor fan motor (K1M).
See below for connecting the terminal "M3". (The Output of alarm signal)
Use the attached wire harness and change from the wire to it. The wire is connected between K1R(5), K1R(7), K2R(7),
and K3R(5). [ ( )is shown the terminal. ]
Connect the wiring between the terminal "M3" and the solderless splices butt "M3" of the wire assy.
In case of FD06~10K
DTA107A55 Connect the wiring between the box of this kit and the
EL. COMPO. BOX ASSY of the indoor unit.
[Refer to the wiring diagram of the indoor unit.]
M12
D
M5 M2M3 M1 M4
CA
M9
B
In case of UAT15 · 20K, UAT15~21KA
Connect the wiring between the box of this kit and the
EL. COMPO. BOX ASSY of the air conditioner.
[Refer to the wiring diagram of the air conditioner.]
See below for connecting the terminal "M3". (The Output of alarm signal)
Connect the wiring between the terminal "M1" and the terminal "6" of K3R (magnetic relay).
Connect the wiring between the terminal "M3" and the terminal "4" of K3R (magnetic relay).
P2
D
M5 M2
P11
M3
A
M13
C
P8 P1
E
M1 M12
P6
B
KA TYPE
M9M4
K TYPE
DTA107A55
DTA107A55
In case of UAT06~10K, UAT06~12KA
See below for connecting the terminal "M3". (The Output of alarm signal)
Use the attached wire harness and change from the wire to it. The wire is connected between K1R(5), K1R(7),
K2R(7), and K3R(6). [ ( )is shown the terminal. ]
Connect the wiring between the terminal "M3" and the solderless splices butt "M3" of the wire assy.
Connect the wiring between the box of this kit and the
EL. COMPO. BOX ASSY of the air conditioner.
[Refer to the wiring diagram of the air conditioner.]
M5 M2
KA TYPE
K TYPE
P2
M12
B
A
M3
P1
M9M4
C
P11
M1
P6
D
In case of FD15 · 20K
DTA107A55
See below for connecting the terminal "M3". (The Output of alarm signal)
Connect the wiring between the terminal "M1" and the terminal "6" of K4R (magnetic relay).
Connect the wiring between the terminal "M3" and the terminal "4" of K4R (magnetic relay).
B
M5 M9M3 M12
C
M1
Connect the wiring between the box of this kit and the
EL. COMPO. BOX ASSY of the indoor unit.
[Refer to the wiring diagram of the indoor unit.]
M2
E
M4
A
M13
D
DTA107A55
See below for connecting the terminal "M3". (The Output of alarm signal)
In case of Y1, connect the wiring between the terminal "M1" and the terminal "5" of K2R (magnetic relay).
Connect the wiring between the terminal "M3" and the terminal "3" of K2R (magnetic relay).
In case of Y19, connect the wiring between the terminal "M3" and the terminal "8" of K4R (magnetic relay).
In case of TAL and YAL, use the attached wire harness and change from the wire to it.
The wire is connected between K1R(6), K1R(7), K2R(7), and K3R(6). [ ( ) is shown the terminal. ]
Connect the wiring between the terminal "M3" and the solderless splices butt "M3" of the wire assy.
In case of UATY06K
Connect the wiring between the box of this kit and the
EL. COMPO. BOX ASSY of the air conditioner.
[Refer to the wiring diagram of the air conditioner.]
M12
P13
M10
P11
M5
P17 P1
M3 M4
P10P2
M7 M2M1
P6
M9
2P042158A
